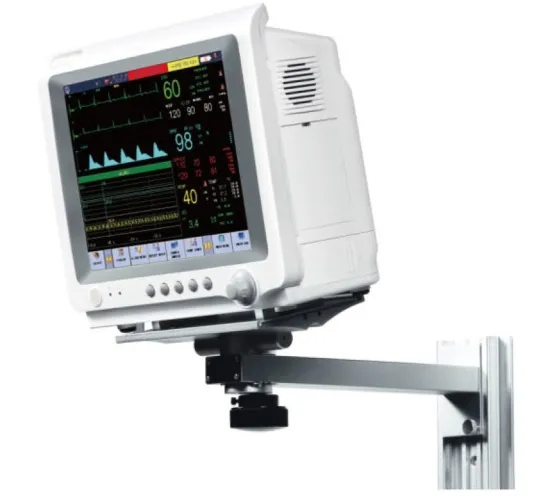

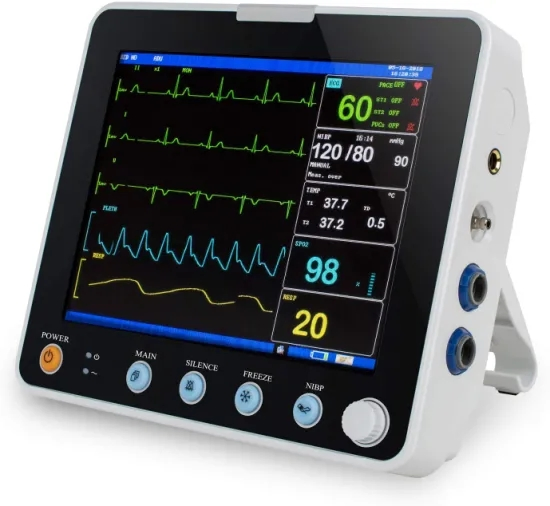

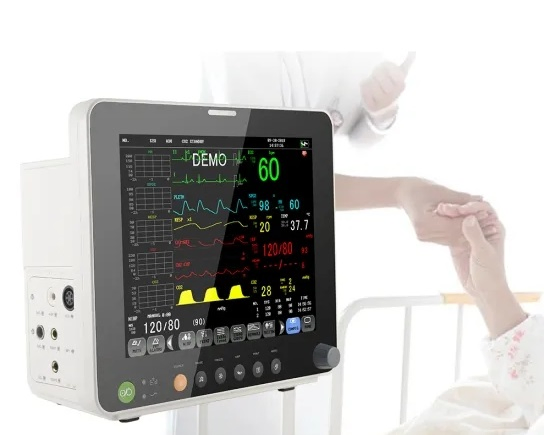

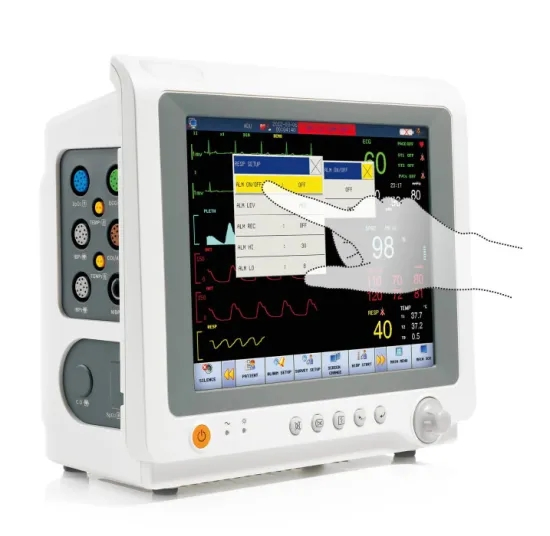

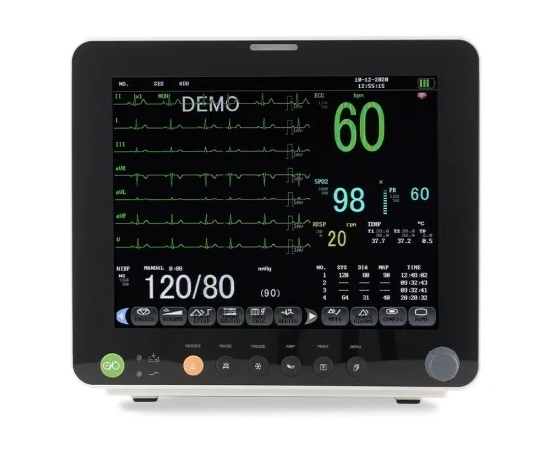

High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
1 / 5
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support
High-Quality 15-Inch Patient Monitoring System with Multi-Language Support

High-Quality 15-Inch Patient Monitoring System with Multi-Language Support

Customization: Available
Classification: Physiological Functions of Diagnosis and Monitoring Equipment
Type: Patient Monitor
Send Inquiry

Product Description

i

Basic Specifications

Model NO.:SYP-P-7000
Certification:CE, FDA, ISO13485
Group:Middle-aged and Old
Data Storage:96-Hour Tabular
NIBP Protection:Yes
Isolated Floating:Yes
Anti Defibrillation:Yes
Touch Screen:Yes
Internet Ready:Yes
Trademark:SYP
★

Product Overview

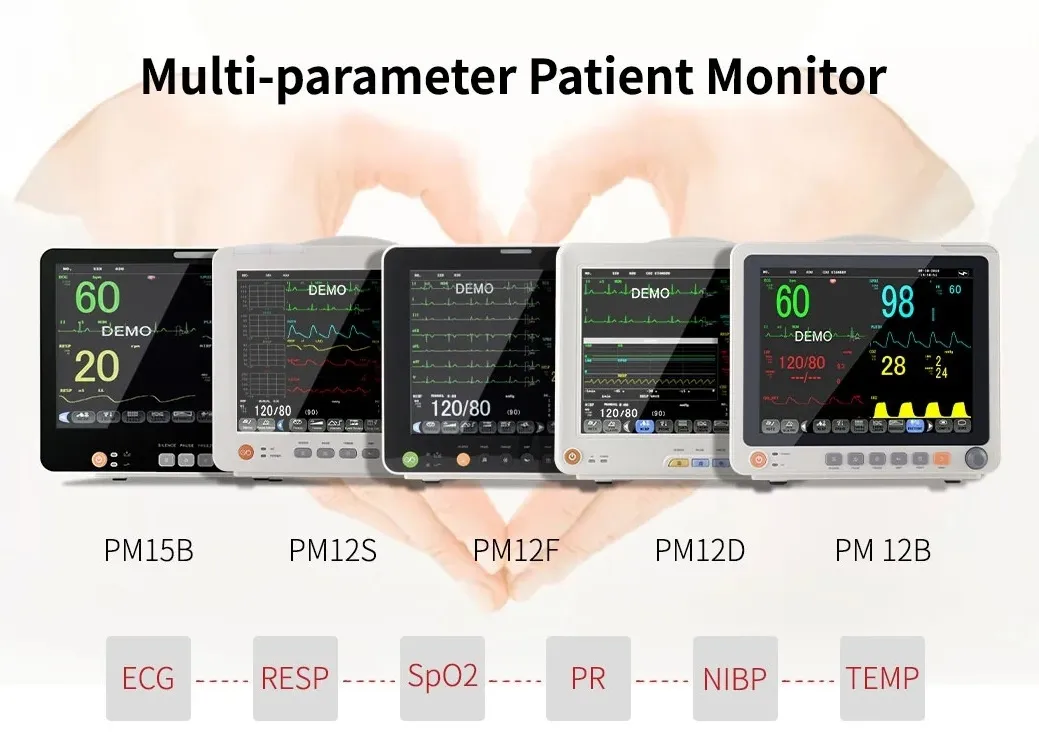

Patient Monitoring Cardiac Monitor System

SYP Multi-Language 12.1 Inches Best Quality Patient Monitoring Cardiac Monitor System

This equipment can monitor parameters such as ECG, RESP, SpO2, NIBP, and Dual-channel TEMP. It integrates the parameter measuring module, display, and recorder into one compact and portable device. The built-in replaceable battery ensures convenience during patient transport.

L

Key Features

  • Elegant appearance, clear marks, standard interface, and oxyCRG screen.
  • Applicable for adult, pediatric, and neonatal patients.
  • Standard parameters: ECG, RESP, NIBP, SpO2, and dual-channel TEMP.
  • Optional: IBP, CO2, Built-in printer, curving handle, and brackets.
  • Multi-language interface: English, Chinese, French, German, Italian, Dutch, Portuguese, Turkish, Spanish, Polish.
  • 12.1'' color TFT LCD with high-resolution synchronous waveform display.
  • Storage: 480-hour trend data, 72-hour ECG waveform, and 2400 NIBP data sets.
  • Digital SpO2 technology with strong anti-interference capability.
  • Wired and wireless networking capabilities for central station connection.
T

Technical Performance

Parameter Specifications
ECG Lead Mode: 3/5-lead; Gain: x2.5 to x20mm/mV; HR Range: 15-300 bpm; ST Segment: -0.6 to +0.8 mV.
Respiration Method: R-F Impedance; Range: 0-120 rpm; Accuracy: ±2 rpm; Apnea Alarm: 10-40s.
NIBP Method: Oscillometry; Modes: Manual, Auto, Continuous; Range: 10-270 mmHg; Over-pressure protection included.
SpO2 Measuring Range: 0-100%; Accuracy: 70-100% ±2%; Pulse Rate Range: 0-250 bpm.
Temperature Dual-channel; Range: 0-50°C; Accuracy: ±0.1°C.
EtCO2 (Optional) Sidestream/Mainstream; Range: 0-150 mmHg; AwRR Range: 2-150 rpm.
IBP (Optional) Dual-channel; Labels: ART, PA, CVP, RAP, LAP, ICP; Range: -50 to 350 mmHg.
P

Physical Characteristics

Dimension: 310 × 140 × 263 (mm) | Net Weight: 3.8 Kg

A

Standard Accessories

Adult SpO2 probe (5-pin)
Adult NIBP cuff & Tube
ECG Lead & Electrodes
Temperature probe
Power cord & User Manual
Patient Monitor Accessories
?

Frequently Asked Questions

What core parameters does this monitor track?
The system provides standard monitoring for ECG, RESP, SpO2, NIBP, and dual-channel Temperature. Additional parameters like IBP and EtCO2 are available as options.
Is the monitor suitable for all age groups?
Yes, the device is designed to be applicable for adult, pediatric, and neonatal patients with specific modes for each.
How long can the system store patient trend data?
The monitor can store up to 480 hours of trend data and 2400 groups of NIBP data for comprehensive clinical review.
Does the monitor support multiple languages?
Yes, it features a multi-language interface including English, Chinese, French, German, Spanish, Portuguese, and more.
Can this device be used during patient transport?
Absolutely. Its compact design, integrated handle, and built-in rechargeable battery make it highly portable for moving patients within a facility.
Does it support networking with a central station?
Yes, the system supports both wired and wireless connection modes to sync with a central monitoring station or for software updates.
