Advanced 12.1-Inch Hospital Patient Monitoring System for Professionals

Customization:	Available
Classification:	Physiological Functions of Diagnosis and Monitoring Equipment
Type:	Patient Monitor

Send Inquiry

Product Description

📋 Basic Information

Model NO.

CMS9000

Certification

CE, ISO13485

Product Name

Multi-Parameter Portable Patient Monitor

Parameters

ECG, SpO2, NIBP, 2-Temp, Pr

Optional

2-IBP, Etco2, and Thermal Printer

Language

Multi-Language Support

Display

12.1" TFT Screen

Weight

Less Than 3.0 Kg

Power Supply

AC 100-240V, 50/60Hz

Package

Carton

Specification

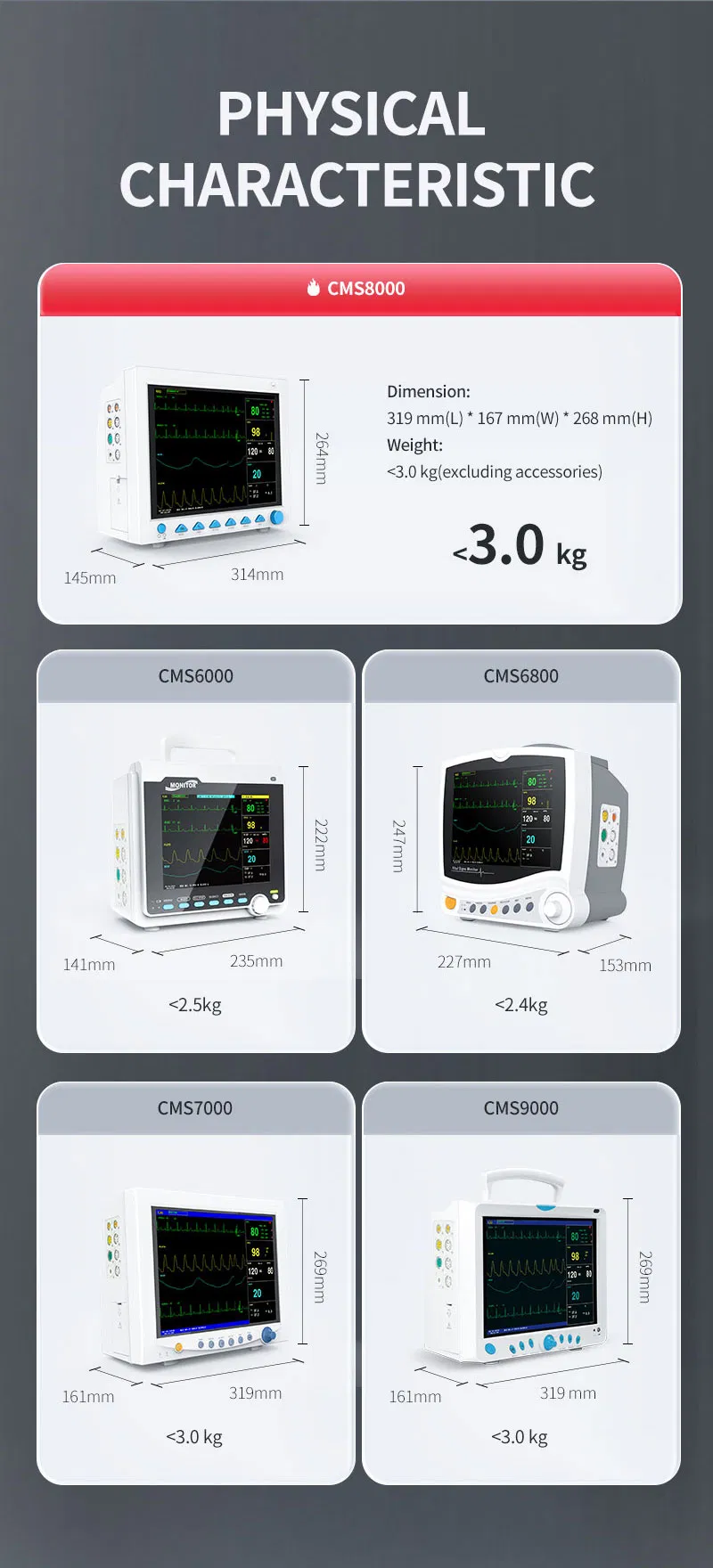

319 mm(L)*167 mm(W)*268mm(H)

HS Code

9018193010

💻 Product Overview

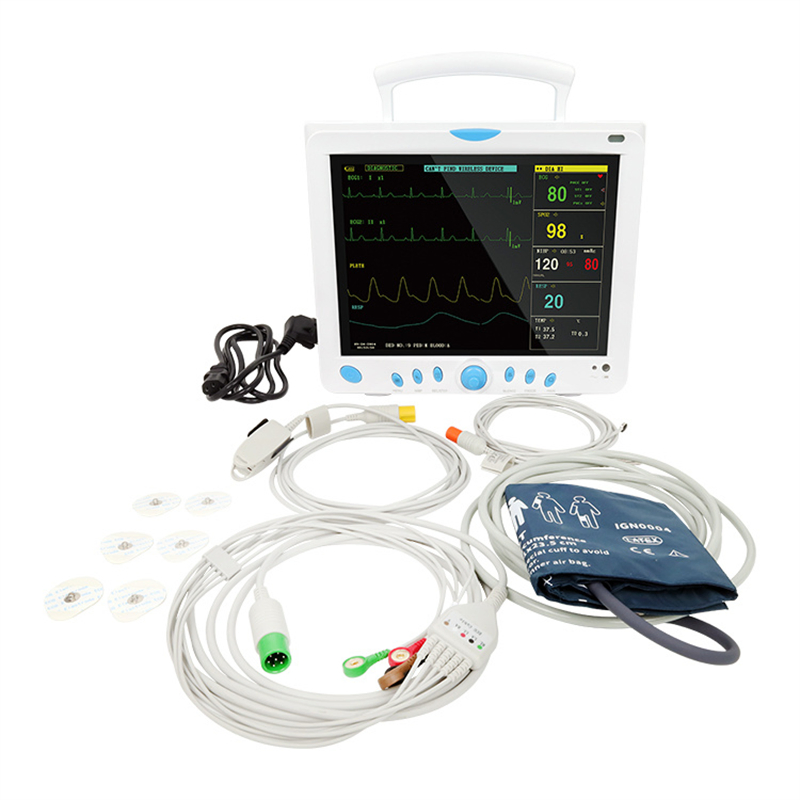

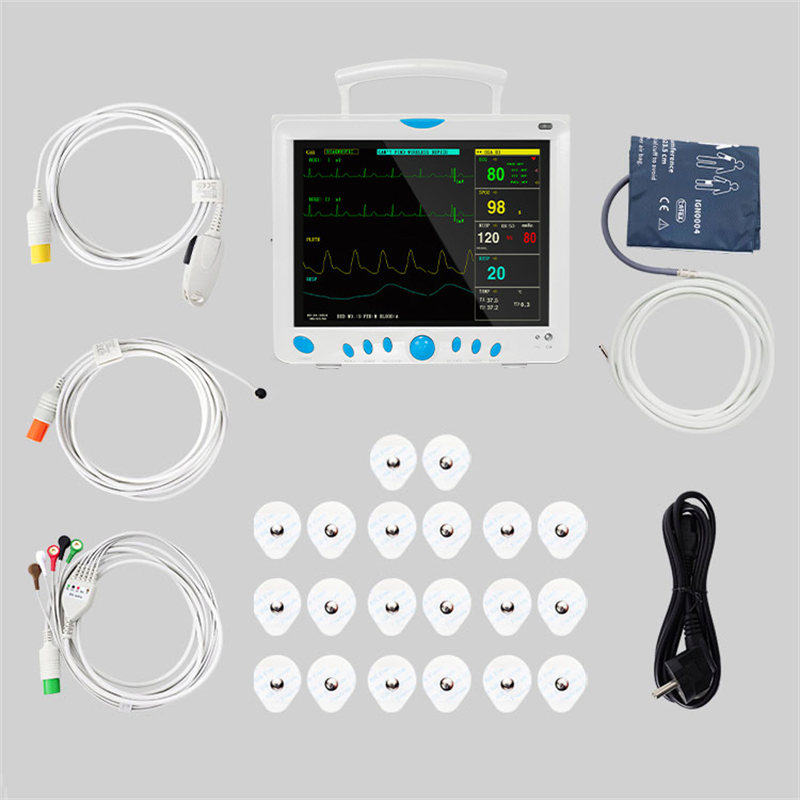

The CMS9000 is a professional medical device designed to monitor vital parameters including ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP. It integrates parameter measurement modules, a high-resolution display, and an optional recorder into a single, compact, and portable unit. Its lightweight design and built-in replaceable battery make it ideal for patient mobility and continuous monitoring.

✨ Key Features

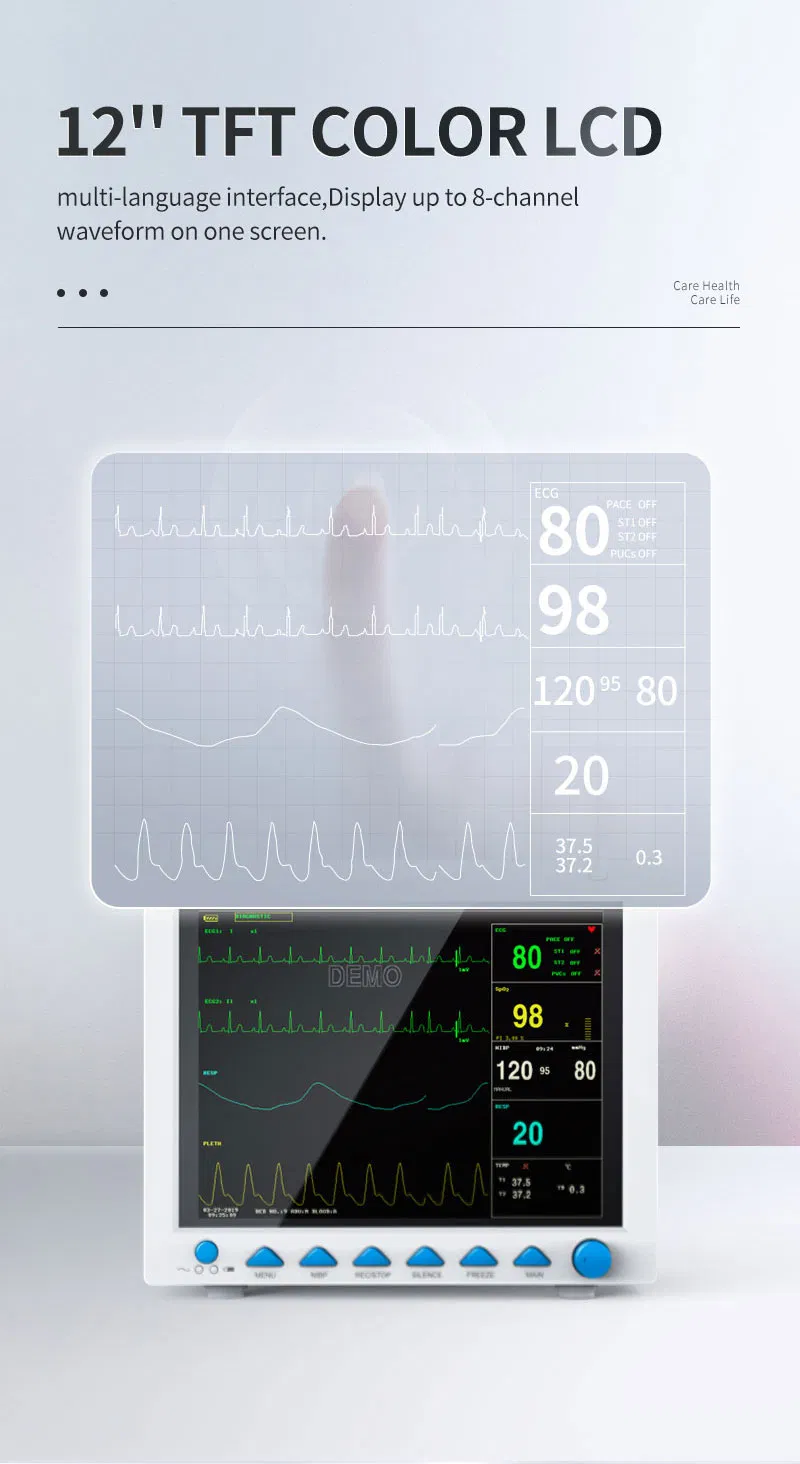

High-Resolution Display12.1'' TFT color LCD with multi-language interface supporting over 15 languages including English, Spanish, French, and more.

Quiet & Safe DesignFanless design ensures quiet operation, energy saving, and reduced risk of cross-infection.

Universal ApplicationSuitable for all-round monitoring of adult, pediatric, and neonatal patients.

Advanced ConnectivityConnects to Central Monitoring Systems via WiFi or wired mode.

Data ManagementStores up to 4800-group NIBP data and reviews 72 alarm events and 60 arrhythmia events.

Digital SpO2 TechnologyAnti-ambient light interference and precise measurement even in weak filling conditions.

⚙ Monitoring Functions

ECG	Heart rate (HR), Waveform, Arrhythmia, and ST-segment analysis.
RESP	Respiration rate (RR) and Waveform.
SpO2	Pulse oxygen saturation (SpO2), Plethysmogram (PLETH), and Pulse rate (PR).
NIBP	Systolic (SYS), Diastolic (DIA), and Mean (MEAN) pressure.
TEMP	Dual-channel monitoring: T1, T2, and TD.
Optional	CO2 (EtCO2, INSCO2, AWRR) and IBP (Dual-channel MAP).

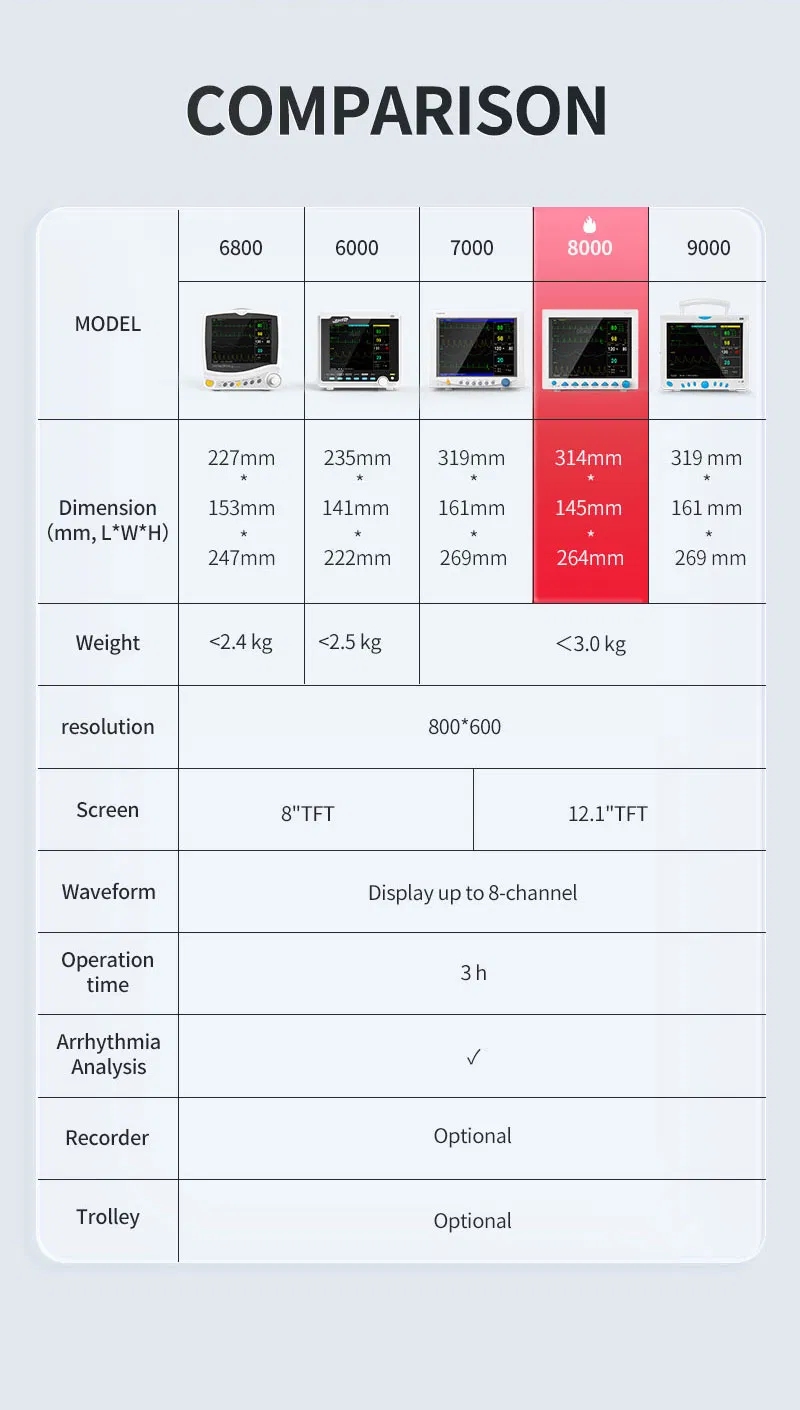

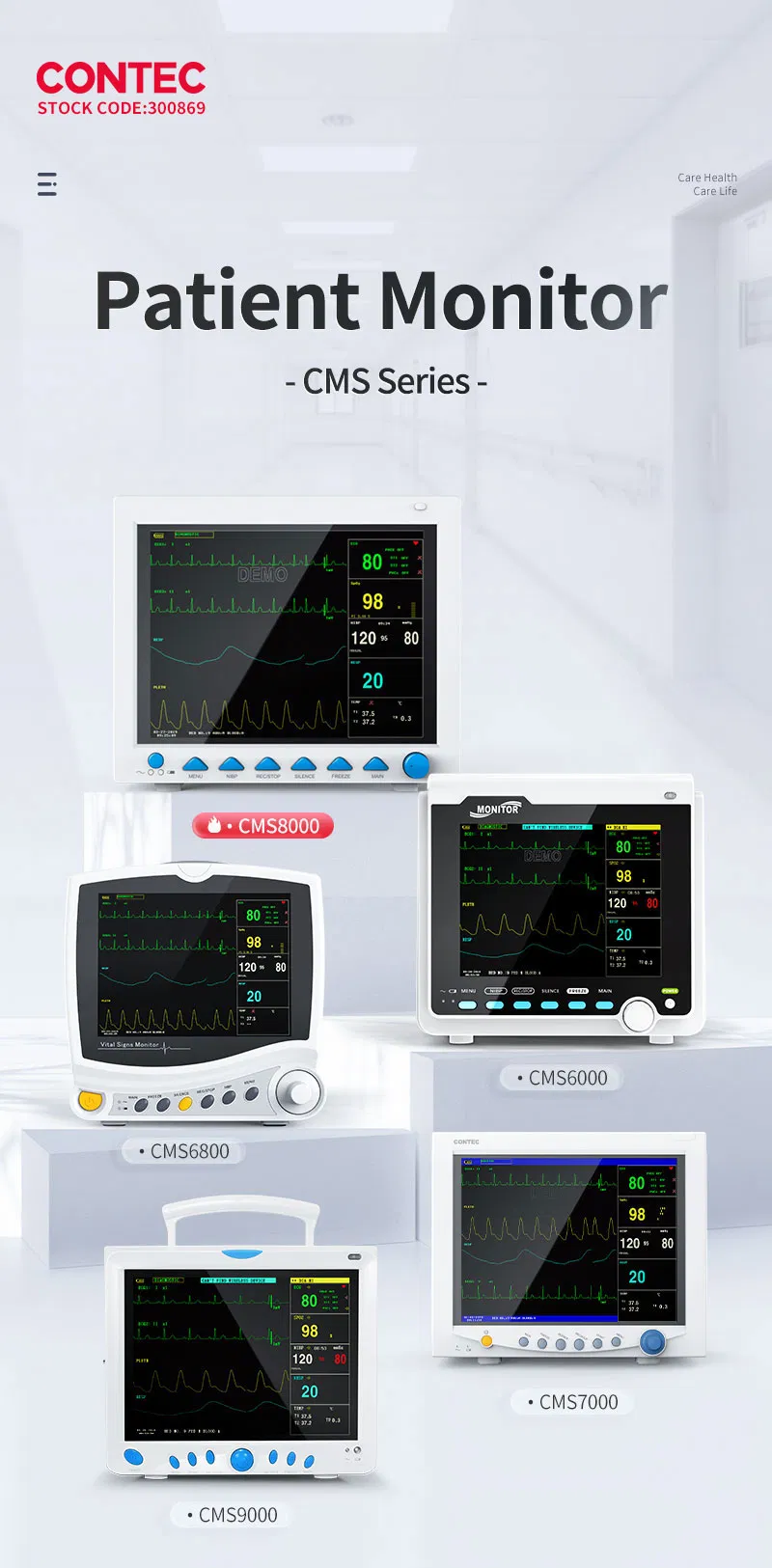

📸 Detailed Views

❓ Frequently Asked Questions

What are the standard monitoring parameters for this device?

The CMS9000 standardly monitors ECG, RESP, SpO2, PR, NIBP, and dual-channel TEMP.

Is the monitor suitable for children and infants?

Yes, it is an all-round monitor designed for adult, pediatric, and neonatal use.

Does the device support battery operation for transport?

Yes, it features a built-in rechargeable lithium battery that ensures uninterrupted monitoring during patient movement.

How many waveforms can be displayed on the screen?

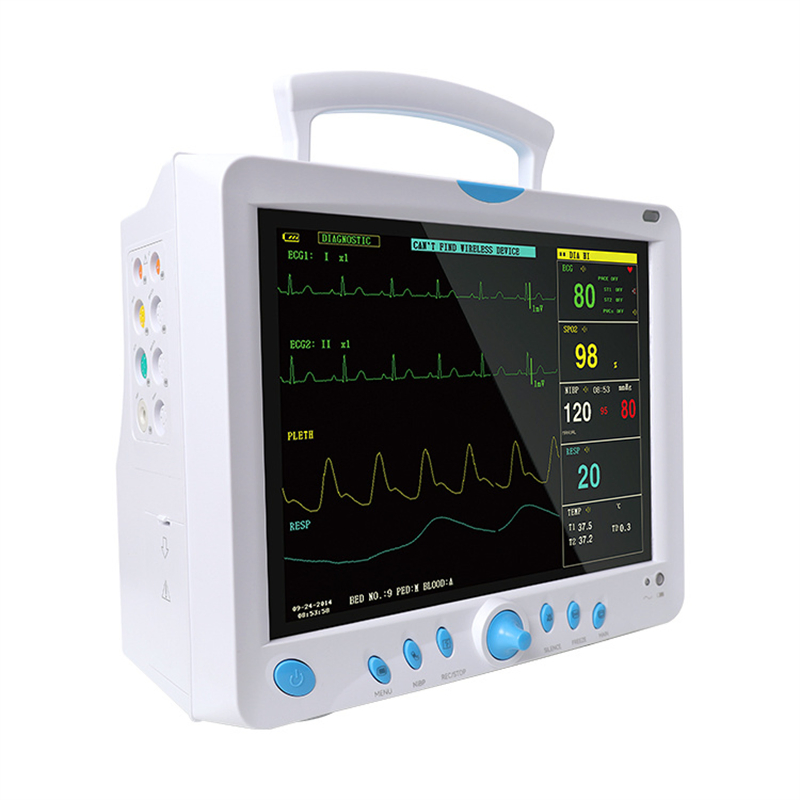

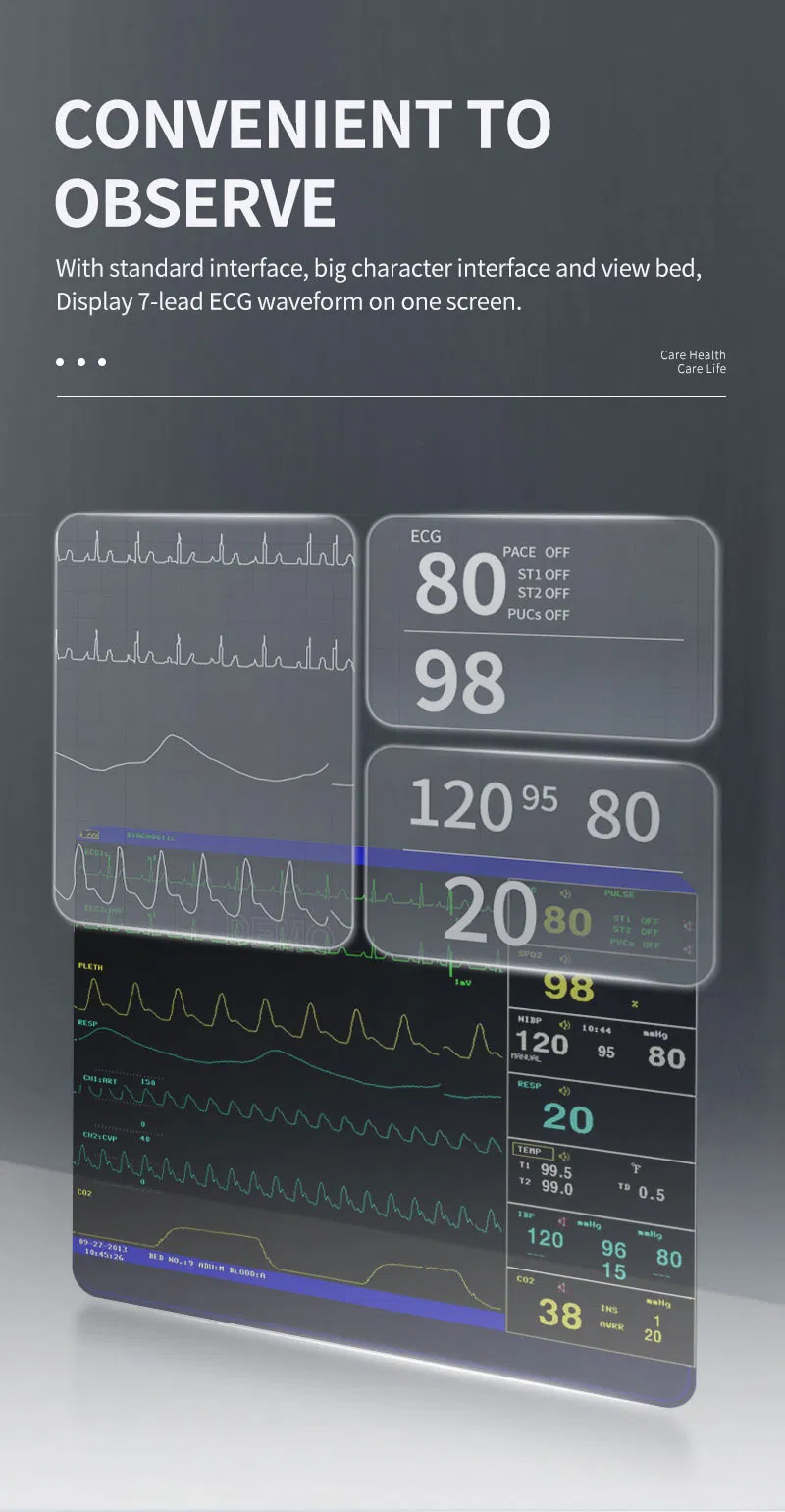

The 12.1" TFT screen can display up to 8 channels of waveforms simultaneously, including a 7-lead ECG view.

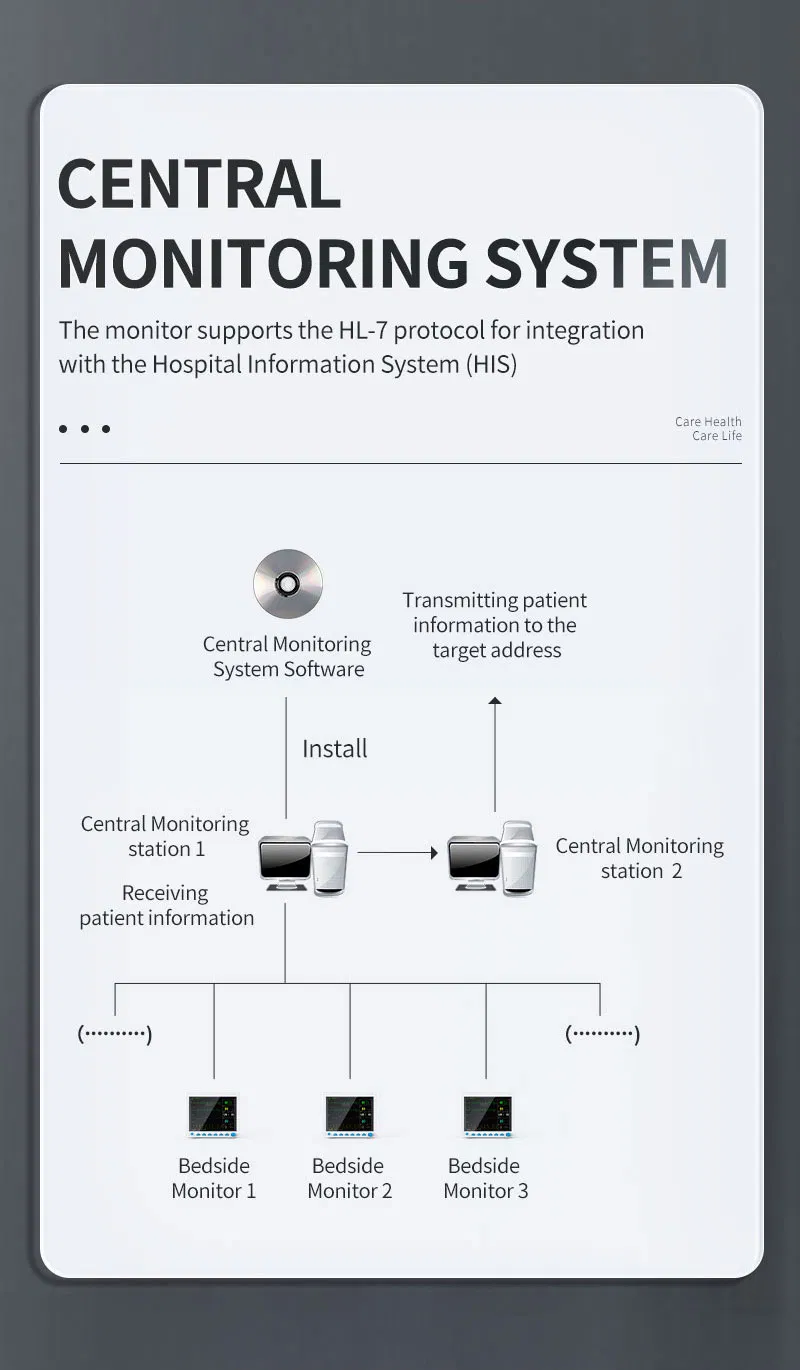

Can it be connected to a hospital network?

Absolutely. It can connect to a Central Monitoring System via both WiFi or wired Ethernet modes.

What makes the fanless design beneficial?

The fanless design provides a quiet environment, saves energy, and prevents dust circulation, which significantly reduces the possibility of cross-infection.
