Basic Specifications
Model NO.
CanSLP
Material
Titanium
Certificate
ISO13485, ISO9001, CE
Keywords
Anterior Clavicle Locking Plate
Production Capacity
1000/Month
HS Code
9021100000
Product Details

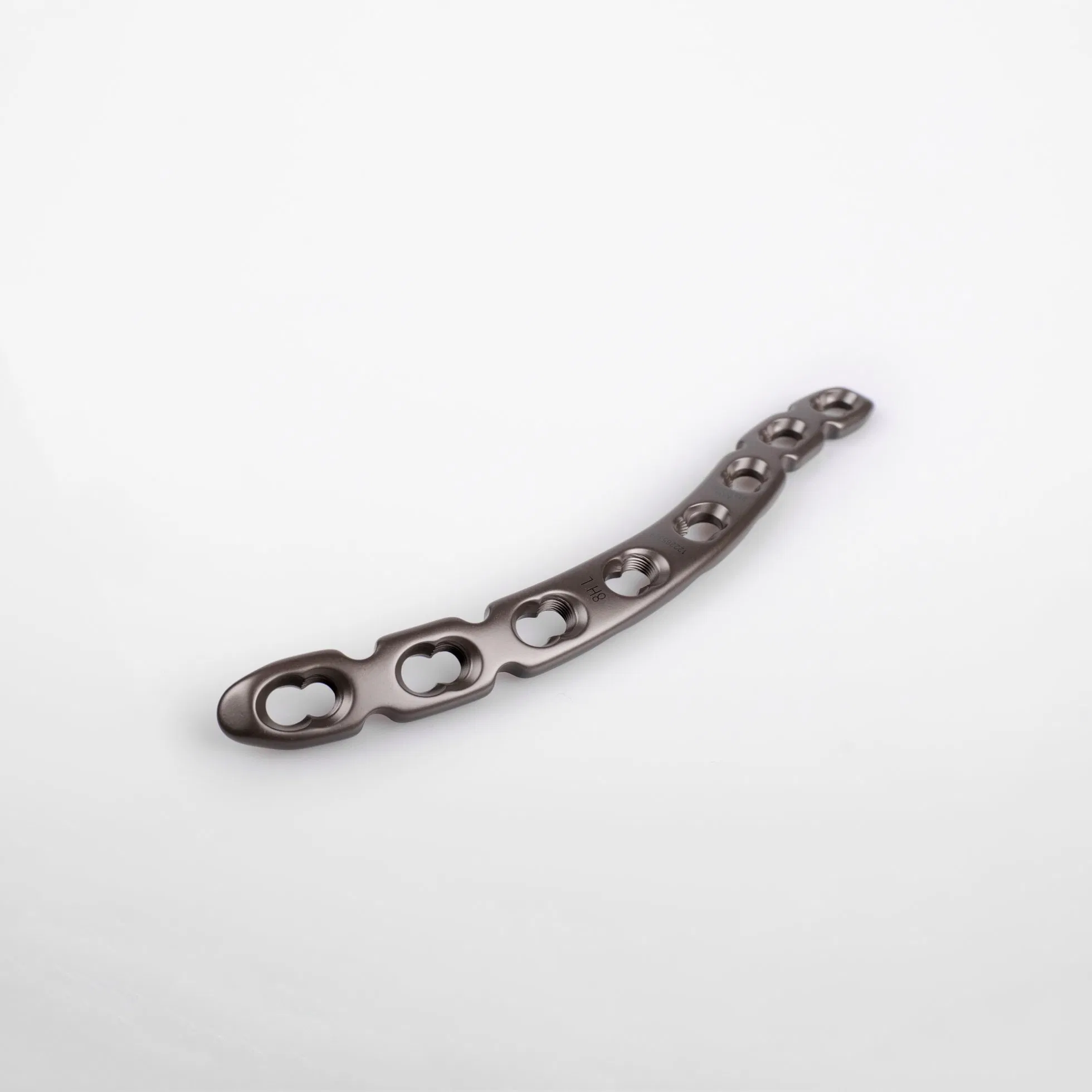

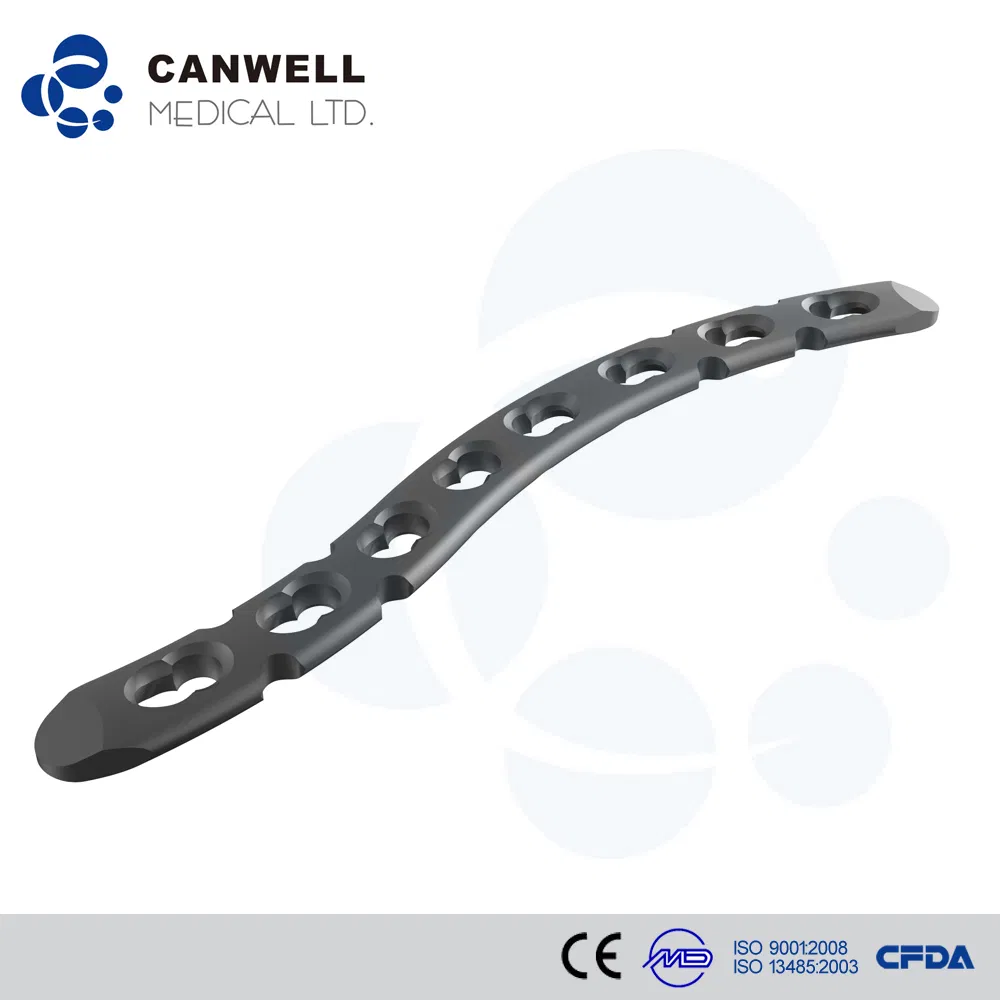

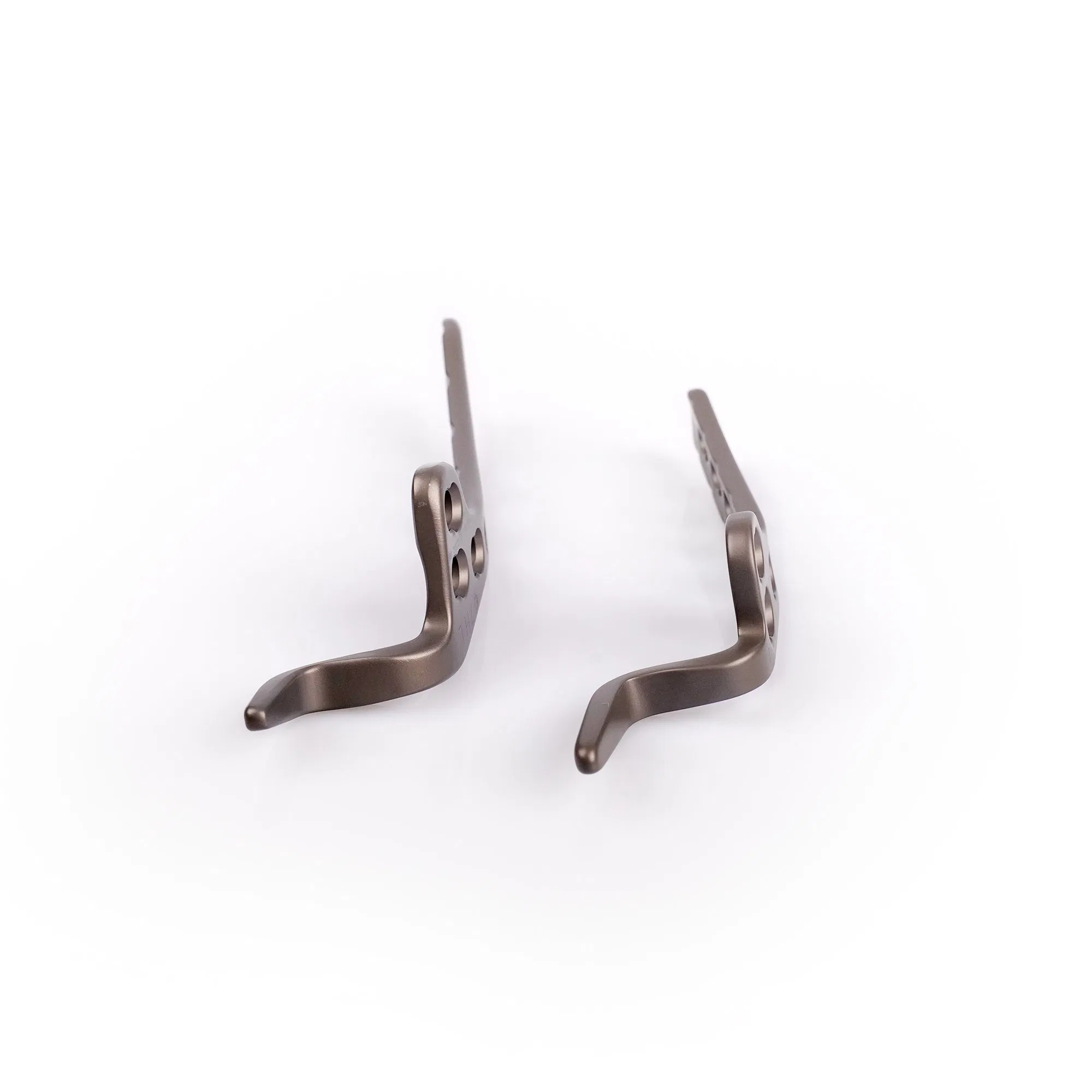

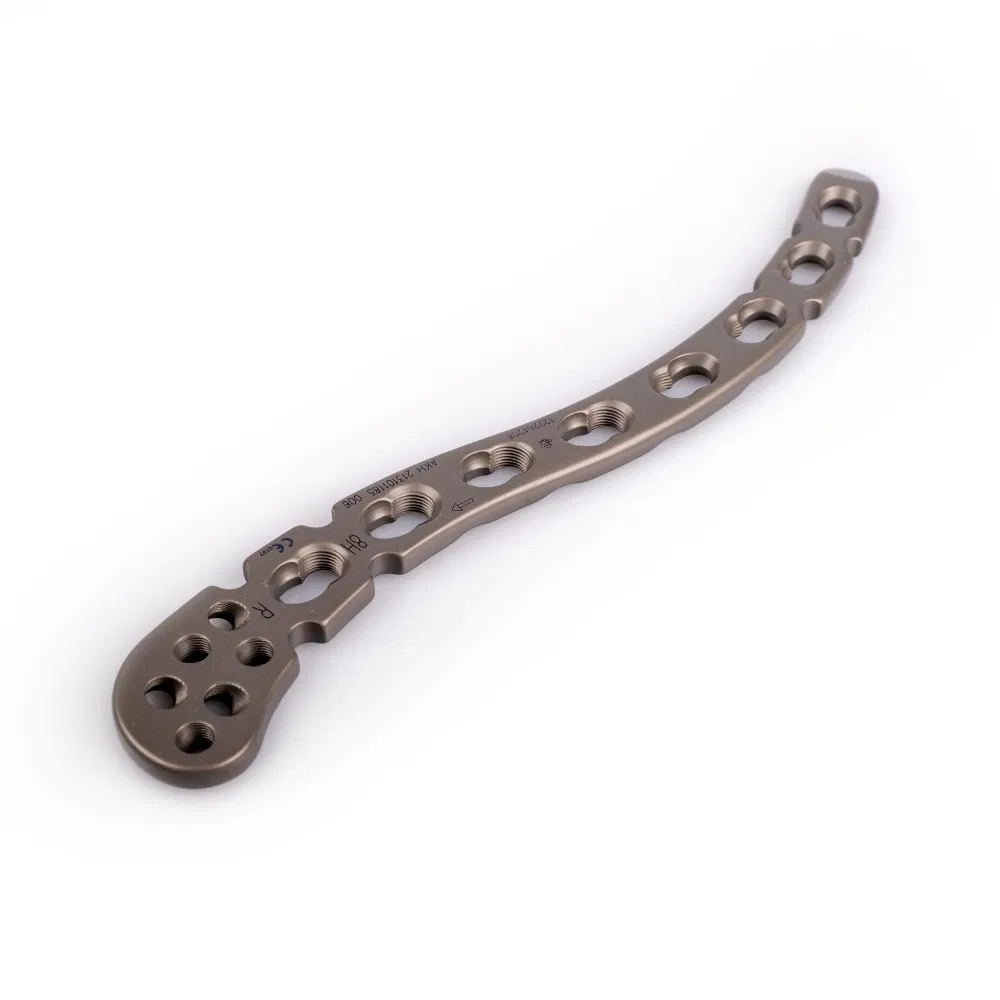

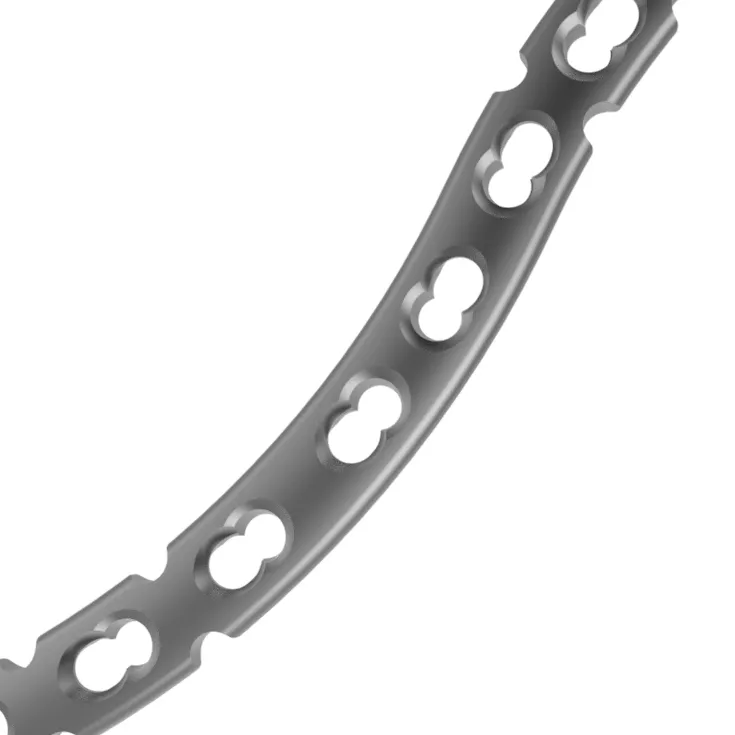

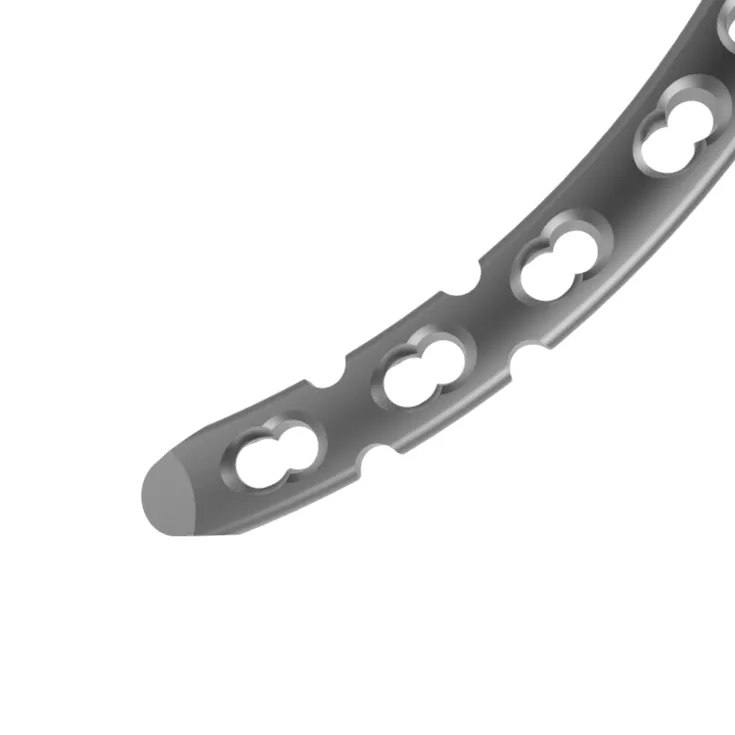

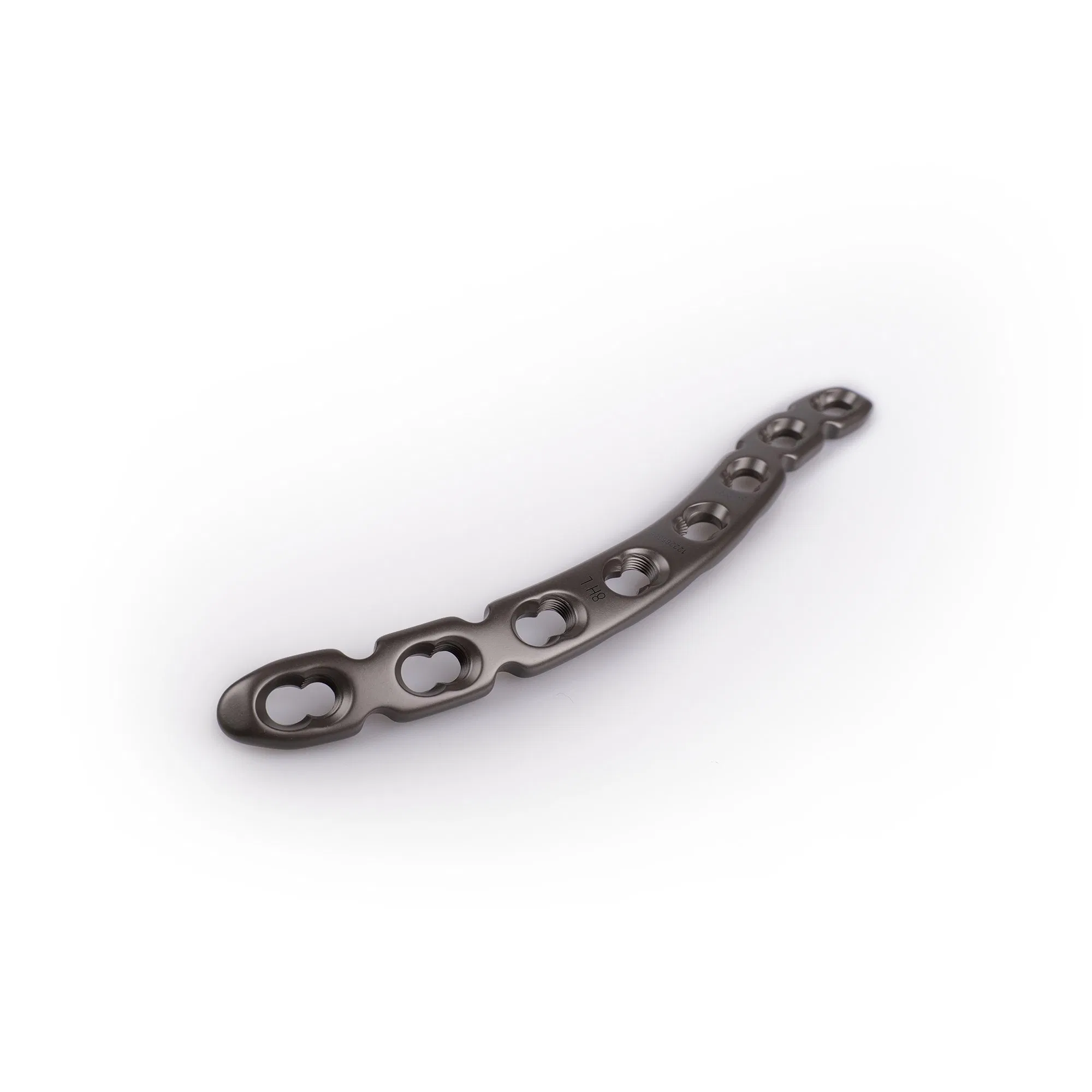

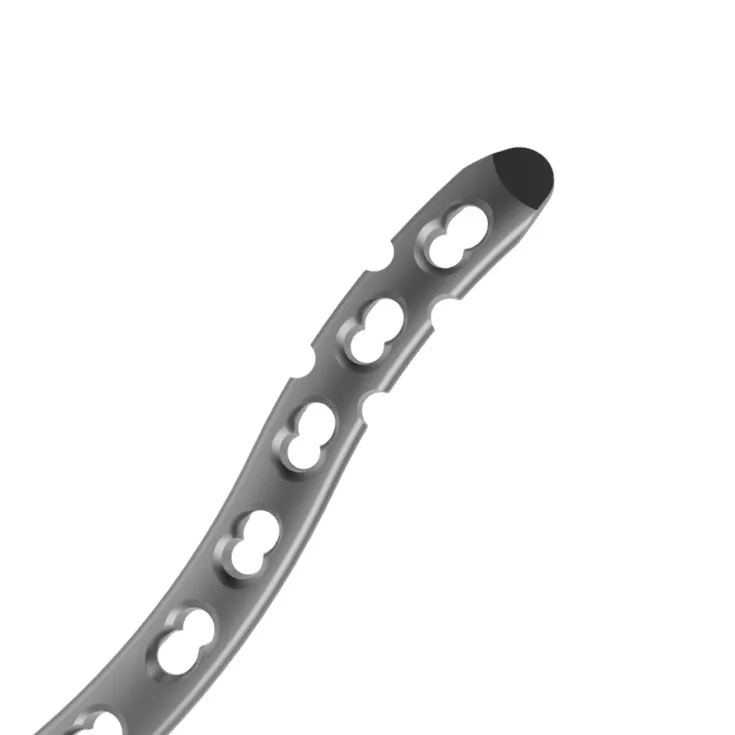

Orthopedic Implants Trauma Anterior Clavicle Lateral Extension Locking Plate
Matching Screw: 3.5mm Cortical Screw; 3.5mm Locking Screw
| Product Information |
| Product Name | Orthopedic Implant Trauma Anterior Clavicle Locking Plate |
| Material | Titanium |
| Product Color | Gray |
| Surface Finished | Anodizing |
| Quality Standard | ISO, CE |
| Specification | Hole 6-8 |
| Length | 94mm - 120mm |
| Hole |
Direction |
P.N |
Length |
Material |
| 6 Holes | Left | 122265106 | 94mm | Titanium |
| 7 Holes | Left | 122265107 | 110mm | Titanium |
| 8 Holes | Left | 122265108 | 120mm | Titanium |
| 6 Holes | Right | 122265206 | 94mm | Titanium |
| 7 Holes | Right | 122265207 | 110mm | Titanium |
| 8 Holes | Right | 122265208 | 120mm | Titanium |

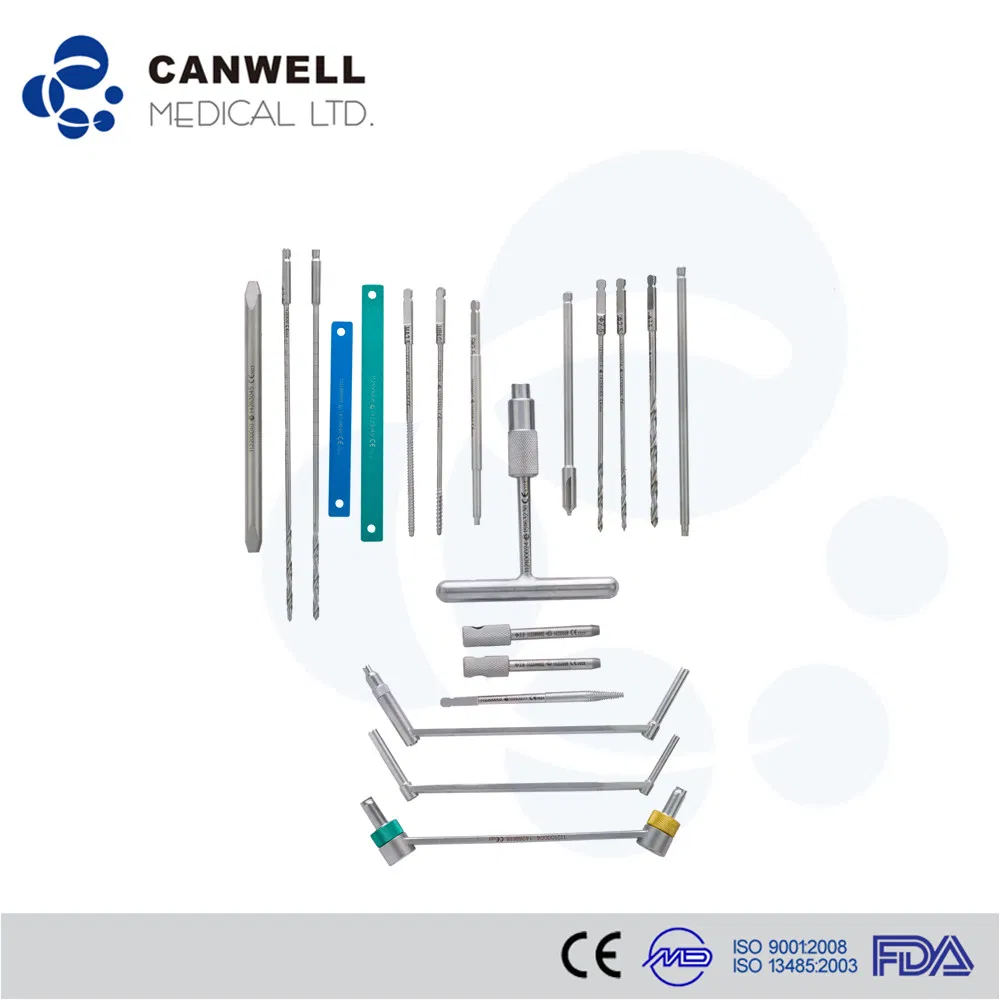

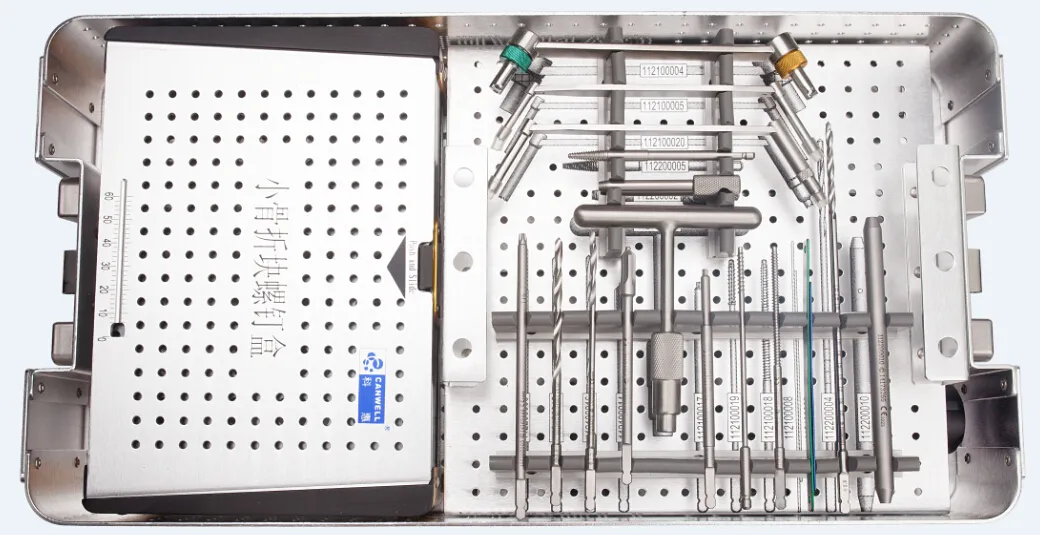

Compatible Instrument Set
| P.N |
Description |
Qty. |
| 112100001 | Depth Gauge for φ2.5mm-φ4. 0mm Length 60mm | 1 |
| 112100002 | Plate Bender, left Length 190mm | 1 |
| 112100003 | Plate Bender, right Length 190mm | 1 |
| 112100004 | LC-DCP Drill Guide, Ø2.5/Ø3.5mm | 1 |
| 112100005 | Double Drill Sleeve I, Ø2.5/Ø3.5mm | 1 |
| 112100015 | Drill Bit, Ø3.5mm Length 112mm | 1 |
| 112100016 | Drill Bit, Ø2.5mm Length 112mm | 2 |
| 112200001 | Torque Limiter 1.5N Length 220mm | 1 |
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer established since 1994, focusing on high-quality orthopedic implants.
What quality certifications do your products hold?
All our products are approved by CE and ISO13485 standards to ensure international quality compliance.
What is the typical delivery time for orders?
Generally, it takes 7-15 days if stock is available, and 30-45 days for regular production, depending on the order quantity and requirements.
Do you provide samples?
Yes, we can accept sample orders. Please note that samples are provided with an extra cost.
Can you provide OEM services?
Yes, we offer comprehensive OEM services. Products can be made-to-order based on specific technical requirements.
What are your accepted terms of payment?
We primarily accept T/T (Telegraphic Transfer) for all transactions.
