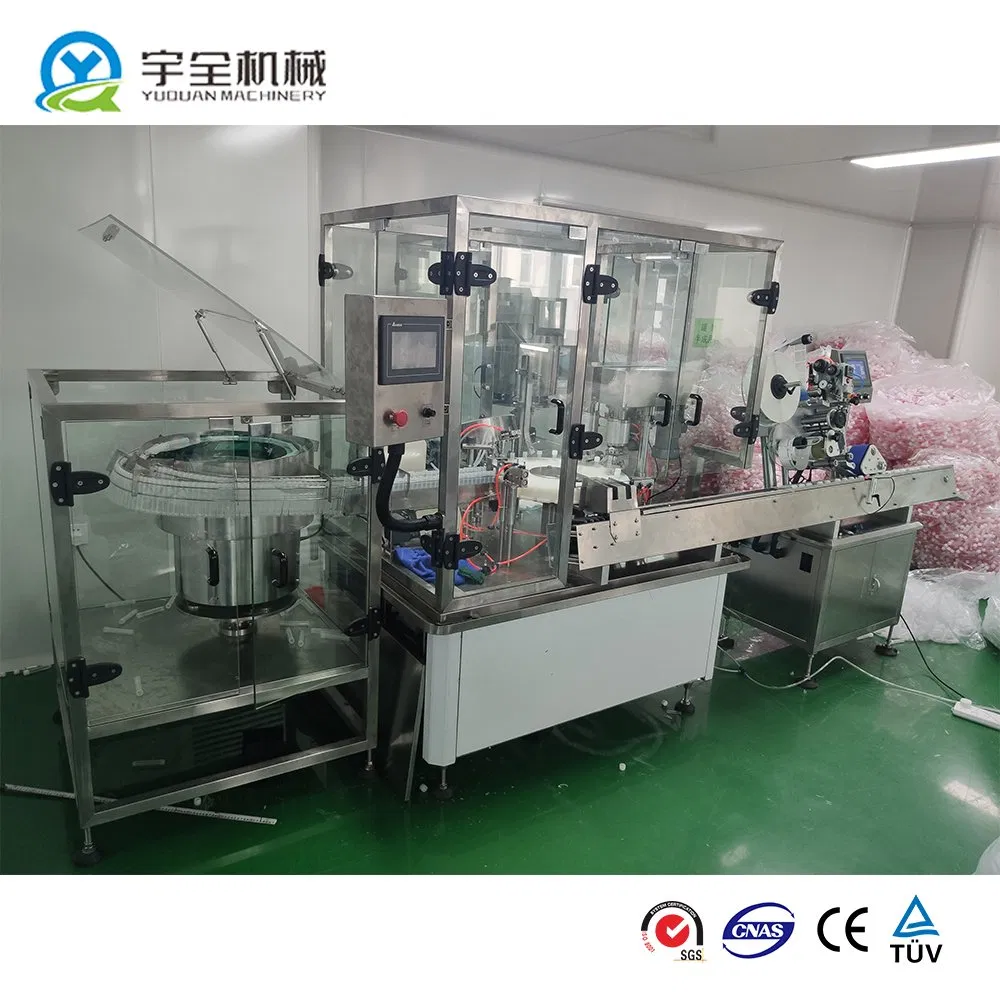

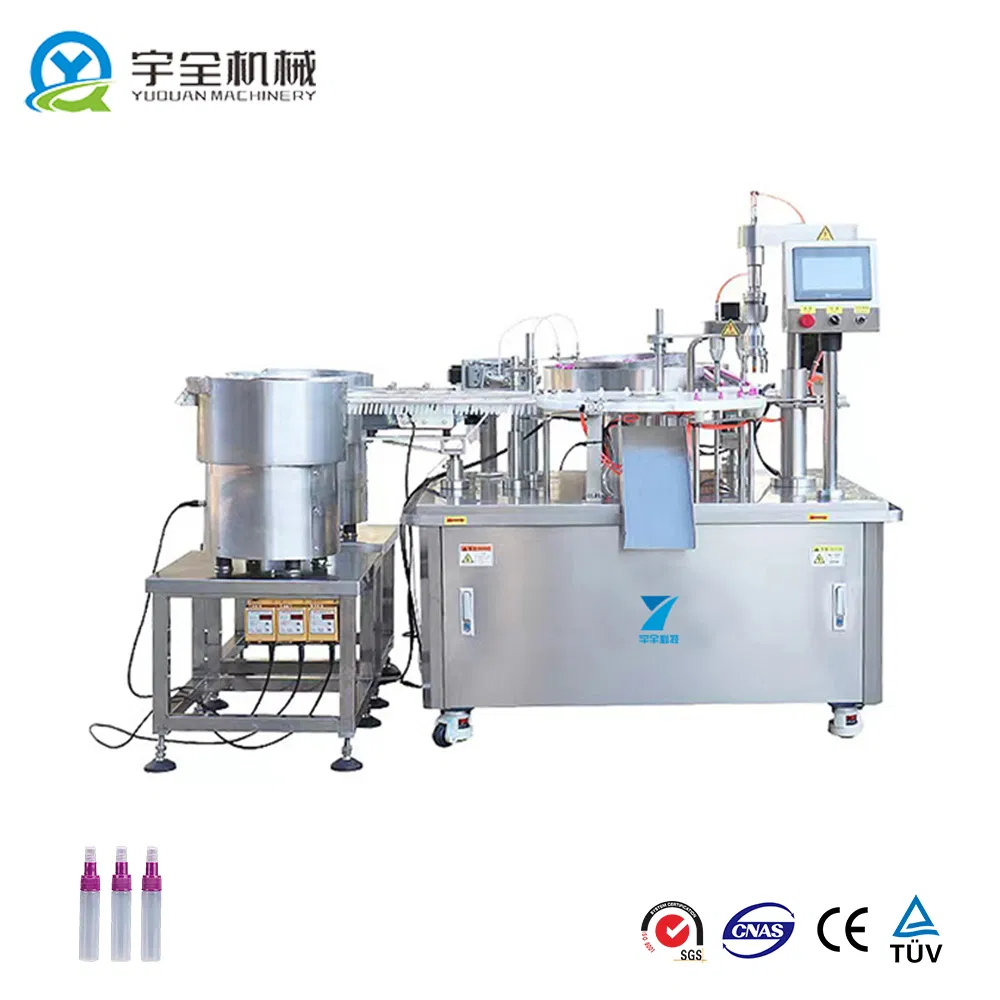

Fully Automatic Double Heads Reagent Bottle Filling Capping Equipment Liquid Filler

1) Introduction

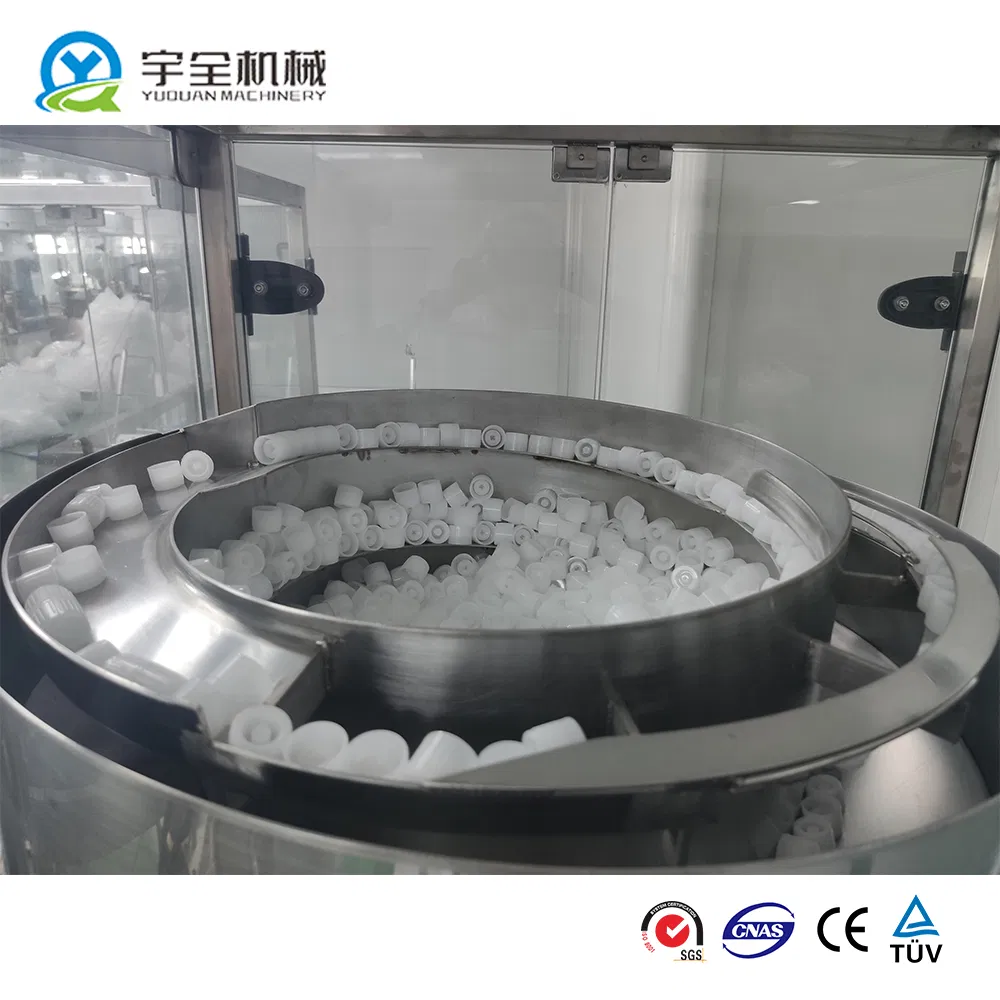

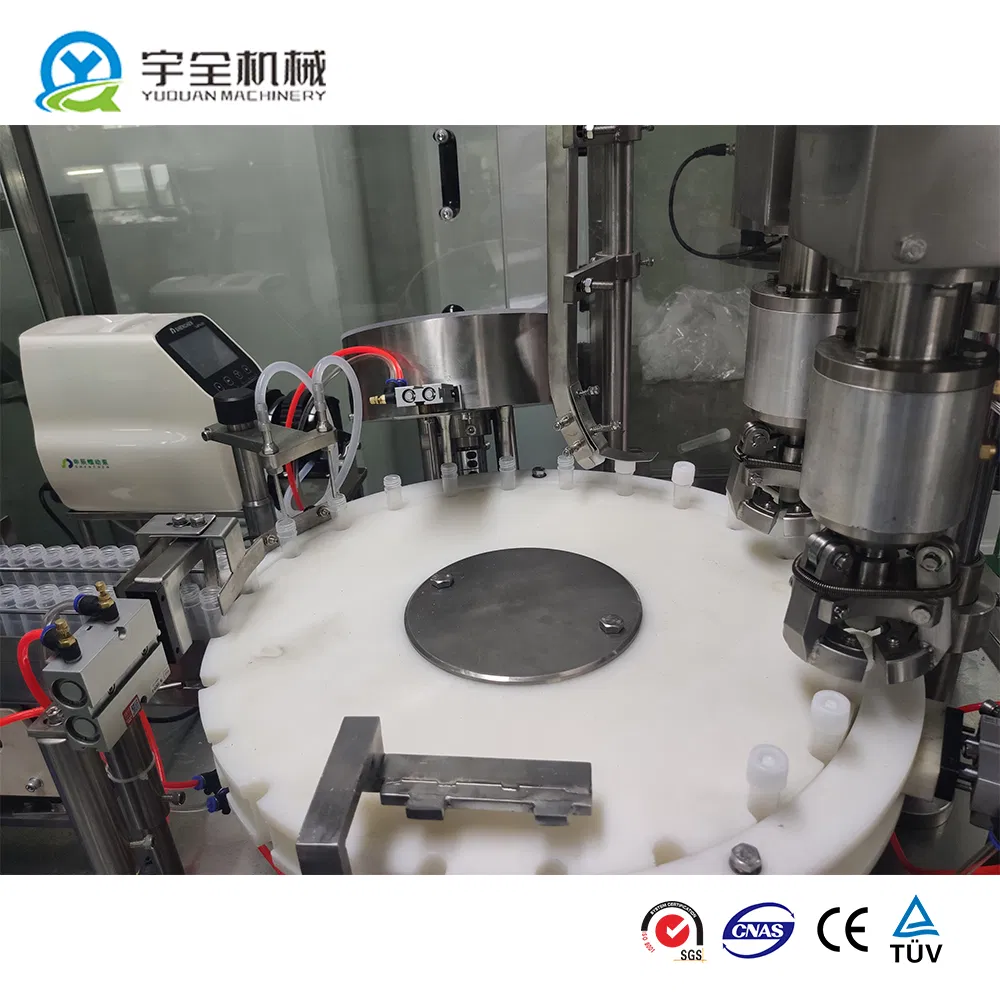

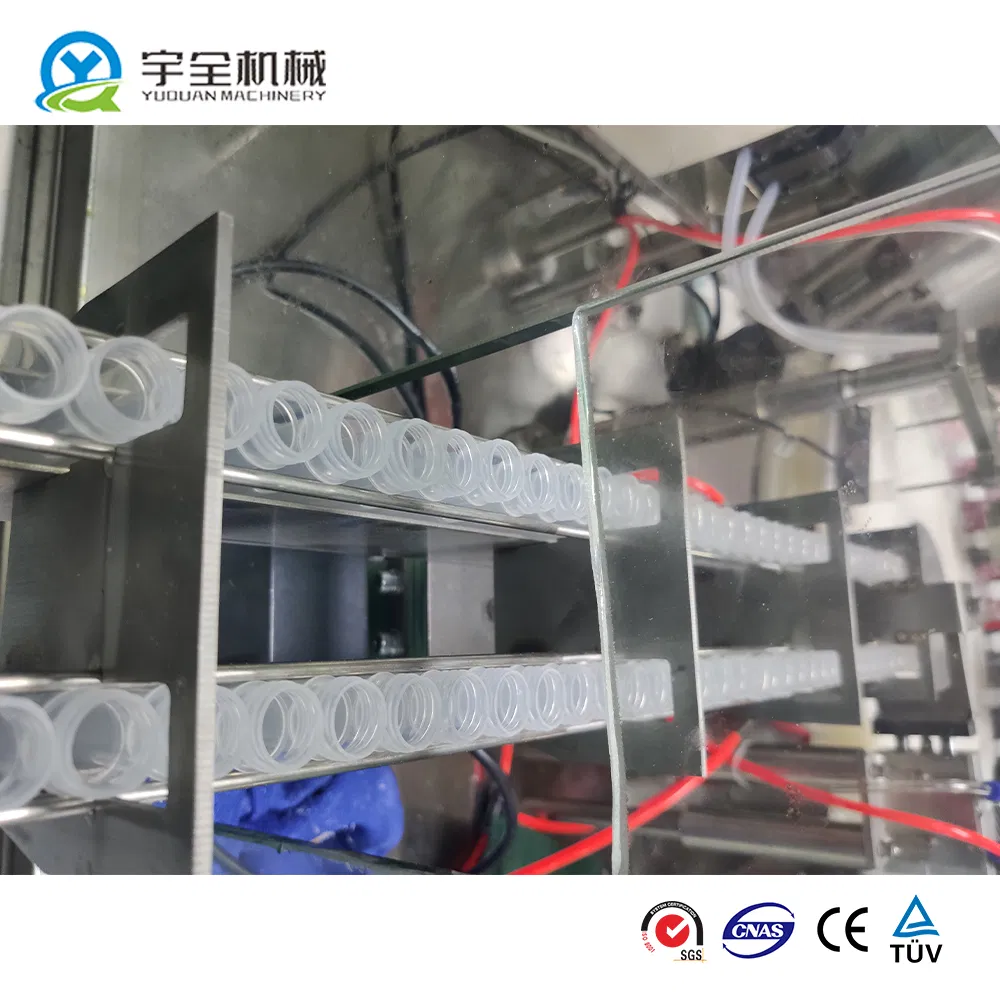

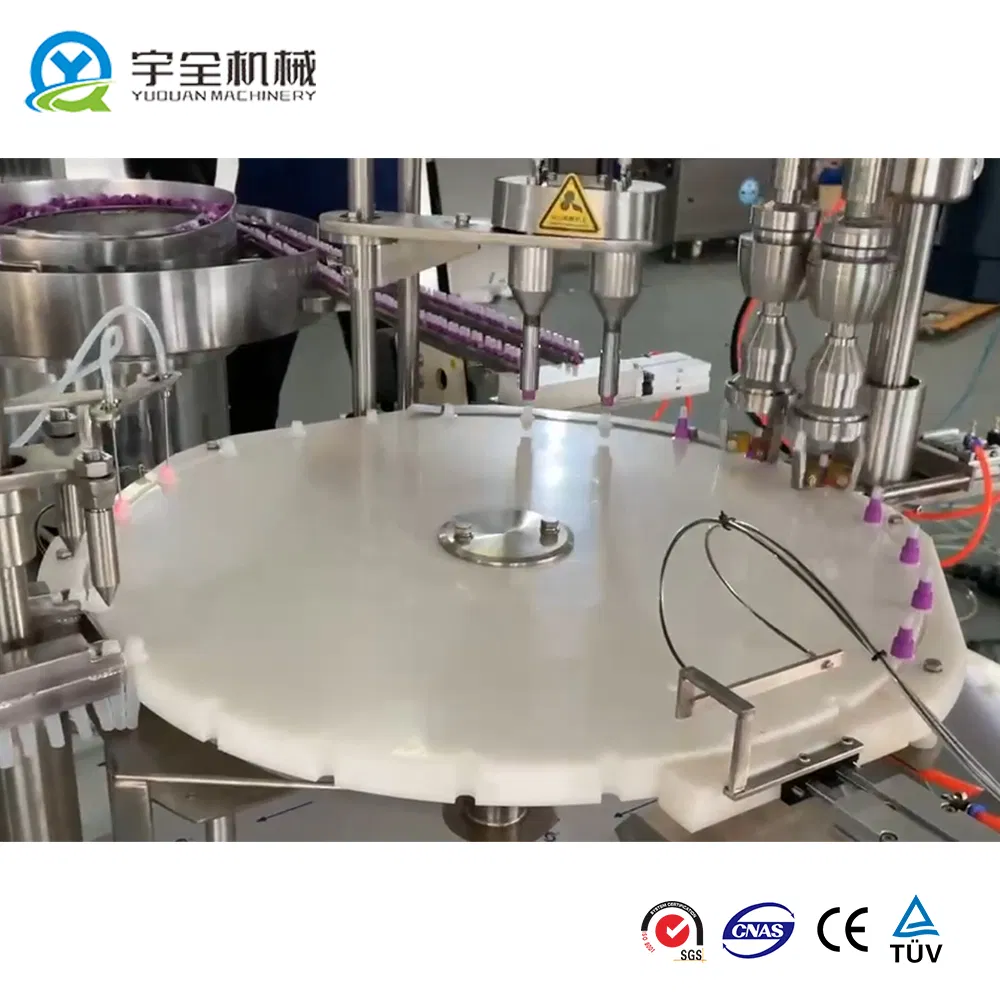

This machine is a specialized filling and capping equipment for plastic VTM tubes. The system automatically manages tubes through a bottle unscrambler, feeding them into an aliquot plate. The plate performs intermittent movements of twenty-four halves. Filling is executed via a peristaltic pump station, followed by an automatic capping process that includes pre-twisting and final tightening by a descending capping head. Finished bottles are then seamlessly discharged to the labeling conveyor.

2) Main Technical Parameters

• Production Capacity: 80-100 bottles/Min
• Applicable Specifications: Reagent bottle
• Filling Head Number: Double head
• Filling Volume: 1ml-60ml
• Loading Accuracy: 0~2%
• Power: 1.5Kw / 220V 50Hz
• Dimensions: 2500×1800×2000mm
