Basic Specifications
Model NO.Customized BESTAM-15
TypeVolumetric Filling Machine
Automatic GradeFully Automatic
Material TypeLiquid
Filling Valve HeadMulti-Head
Dosing DevicePlunger
Filling PrinciplePressure
StructureRotary
OriginChina
⚙️
Product Description

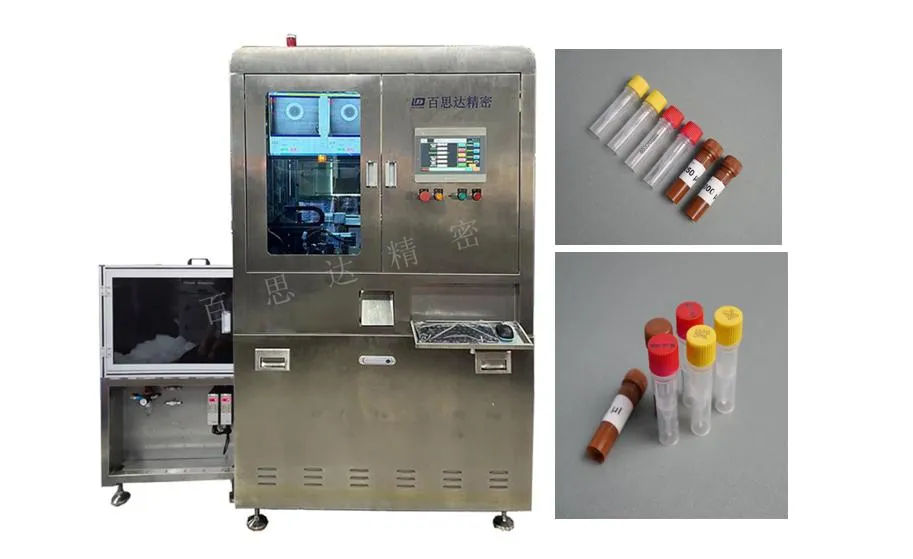

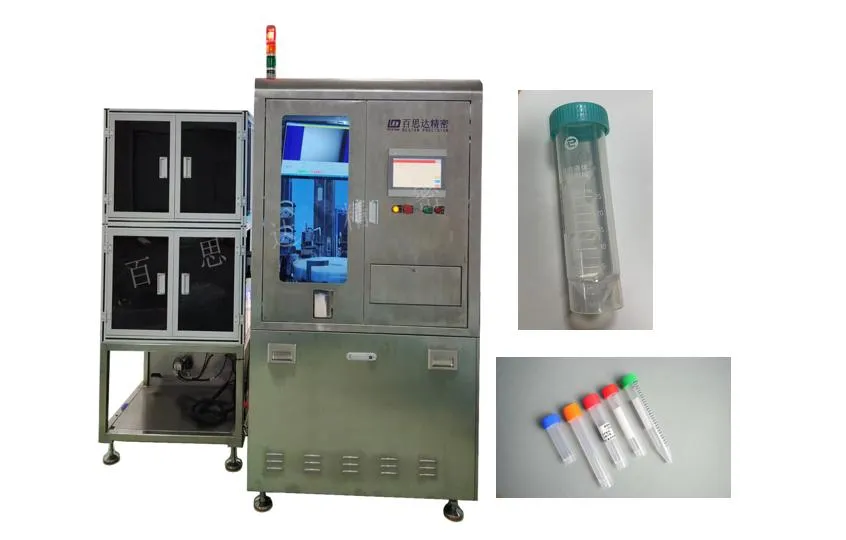

Engineered for the effortless and automatic production of cryopreservation tubes ranging from 0.5 to 1.5ml, specifically for the biological industry. This advanced system showcases a suite of powerful functions, including: seamless automatic feeding of cryogen tubes, precision automated filling, cutting-edge liquid detection, efficient automatic feeding of bottle caps, secure automatic cap screwing, precise automatic marking, meticulous automatic character detection, comprehensive bottle dirt detection, accurate automatic label printing paired with detection of printed content, precise automatic labeling, reliable automatic discharging counting, organized automatic plate arrangement, and smooth automatic output.
💡
Key Features
Delivers stable performance, boasts a remarkably low failure rate, and achieves high levels of productivity, setting the standard for efficiency;
Equipped with an integrated detection system that enables closed-loop monitoring, featuring a laser displacement sensor for precise screw cap height detection, and a visual detection system to ensure accurate liquid level monitoring;
Incorporates dual liquid injection pumps to significantly boost output capacity;
Ingeniously designed screw cap structure that combines simplicity with exceptional stability and high reliability;
User-friendly man-machine interface operation that intuitively displays both the cause and location of any faults.
| Capacity |
1800 PCS/H |
Utilization Rate |
≥92% |
| Size |
L3.0 * W1.3 * H2.1 M |
Rated Voltage |
220V / 50Hz |
| Weight |
1100 KG |
Power |
About 3.5 kW |
| Uploading |
Vibrating plate feeding |
Noise Level |
Under 78 dB |
| Pressure |
0.5 - 0.7 Mpa |
Gas Consumption |
450 L/min |
❓
Frequently Asked Questions
What tube sizes is this machine compatible with?

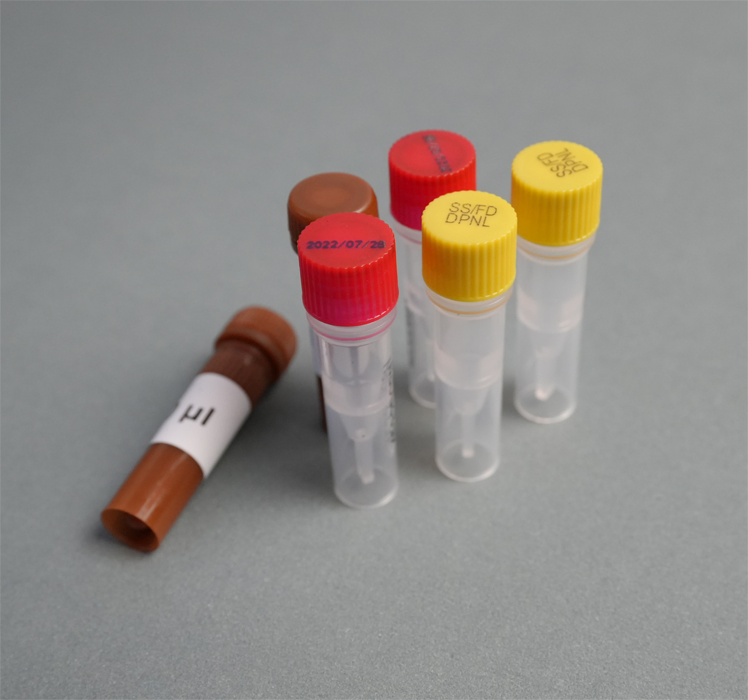

The system is specifically engineered for cryopreservation tubes ranging from 0.5ml up to 1.5ml.
What is the production capacity of the filling machine?
The machine delivers a production capacity of approximately 1800 PCS per hour with a utilization rate of ≥92%.
What kind of detection systems are integrated?
It features an integrated detection system with laser displacement sensors for cap height and visual detection for liquid level monitoring and character verification.
Is the machine easy to troubleshoot if a fault occurs?
Yes, it includes a user-friendly man-machine interface that intuitively displays both the specific cause and the location of any operational faults.
What are the power and gas requirements?
The system operates on 220V/50Hz voltage with a power consumption of about 3.5kW and requires a gas pressure of 0.5-0.7Mpa with a consumption of 450L/min.
