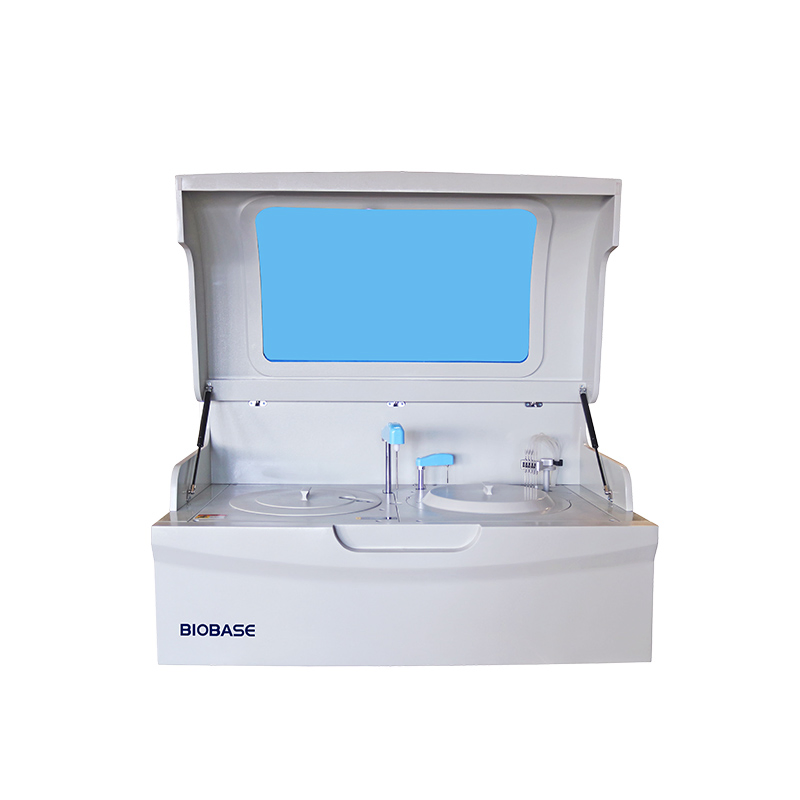

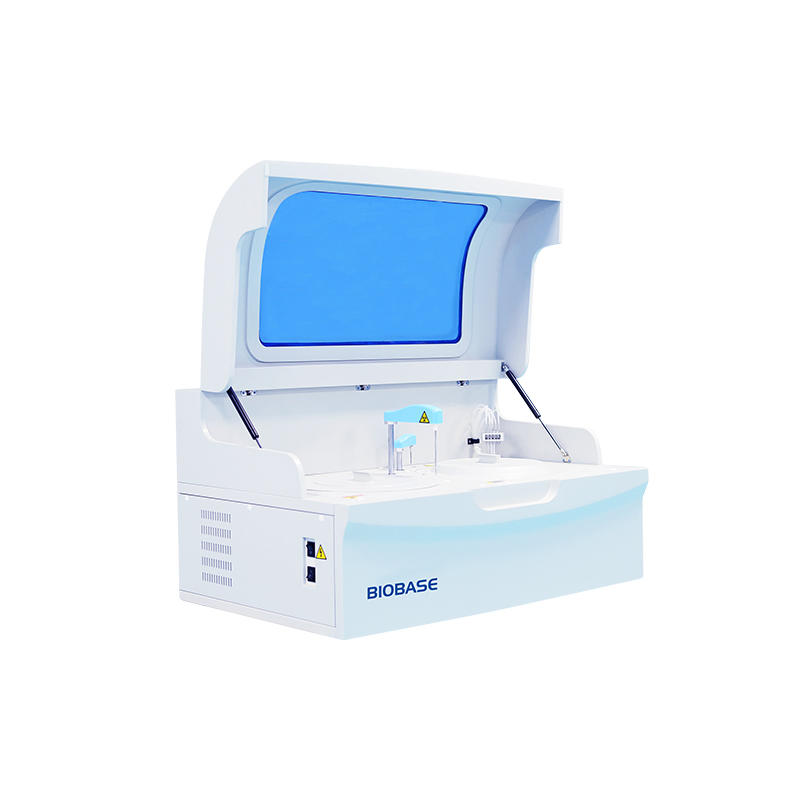

Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
1 / 5
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine
Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine

Biobase 200 Tests Clinical Fully Automated Biochemistry Chemistry Analyser Machine

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

📋 Overview - Basic Info
Model NO.BK-280
CertificationCE, ISO13485
NameChemistry Analyzer
Throughput200 Tests/Hour
Analysis MethodEnd-Point, Fixed-Time, Rate(Kinetic)
Sample Positions49 Sample Positions
Reagent Position56 Reagent Positions
Probe WashingAutomatic Washing Interior and Exterior
Reagent CoolingRefrigerated Tray with Independent Switch
Temperature Control37+0.1℃, Real-Time Monitoring
Cuvettes120 Reusable Cuvettes, Optical Length 6mm
Mixer ProbeIndependent Stirring
WashingAutomatic Cuvettes Washing
Stat FunctionYes
Transport PackageWooden/Carton
📷 Detailed Photos

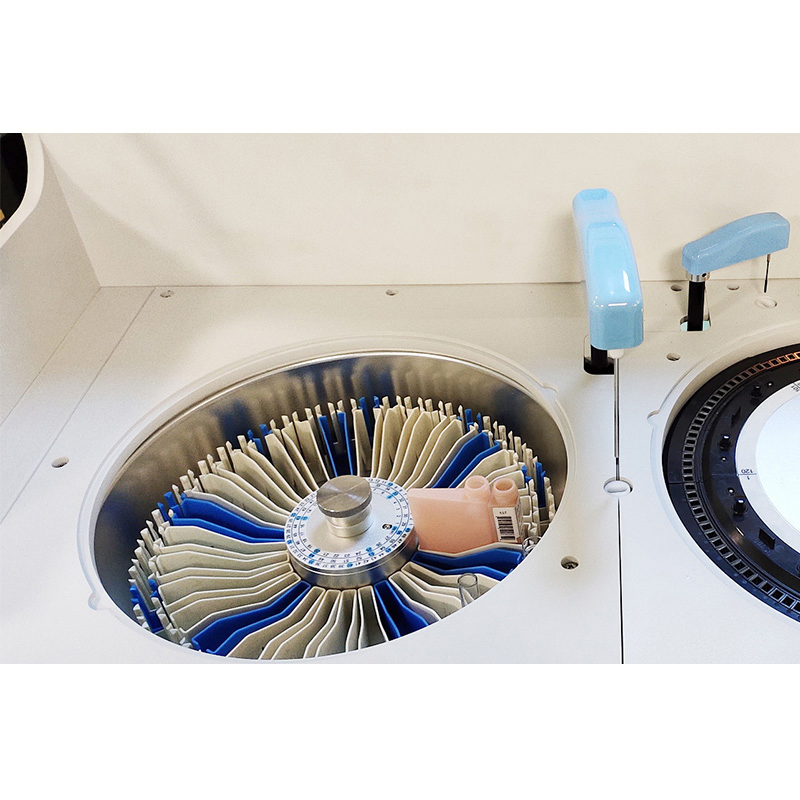

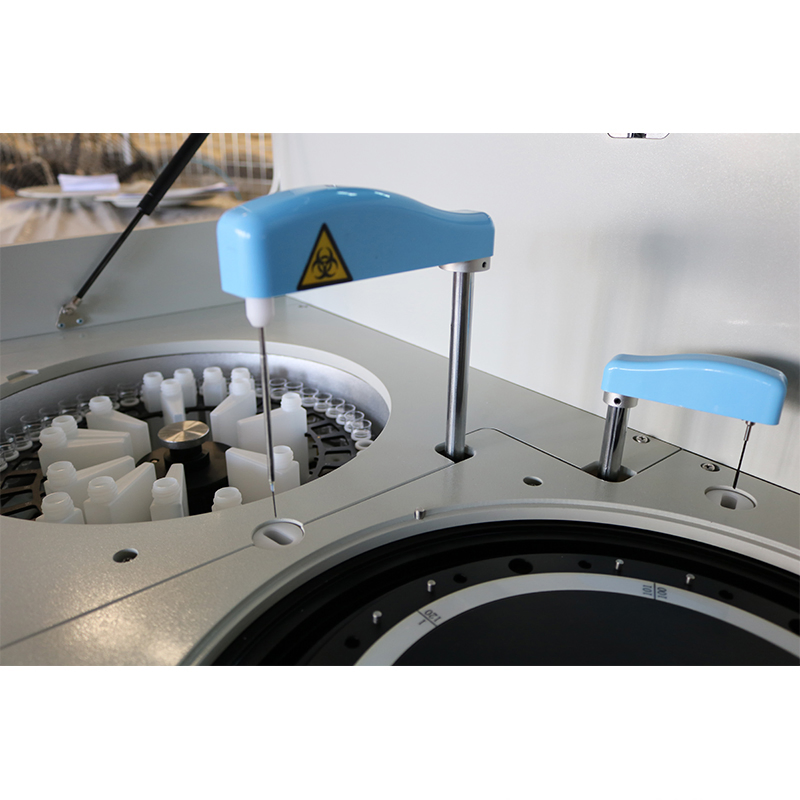

Chemistry Analyser Detailed View
🔹 49 Sample positions.
🔹 56 Reagent positions.
🔹 120 Reaction cuvettes.
🔹 200 Tests per hour.
🔹 Probe anti-collision & liquid level detection.
✨ Key Features
Overall appearance: One probe for reagents and sample; One mixer; Washing probe.
Reaction tray: 37ºC±0.1ºC, real-time monitor.
Reagent Tray: Refrigerated tray with independent switch.
Sample needle: Liquid level sensor function. Anti-collision function. Reagent volume real-time detection.
Washing Probe: Independent 2-step washing system.
📊 Product Parameters
Specification Details
Overall Performance Throughput 200 Tests/Hour
Analysis Method End-point, Fixed-time, Rate(Kinetic), Turbidimetry
Certificates CE, FDA, ISO9001, ISO14001, ISO13485
Sample & Reagent Unit Sample Positions 49 sample positions
Reagent Positions 56 reagent positions
Probe Washing Automatic washing interior and exterior
Reagent Cooling Refrigerated tray with independent switch
Reaction System Temperature Control 37±0.1ºC, real-time monitor
Cuvettes 120 reusable cuvettes, optical length 6mm
Mixer Probe Independent stirring
Washing Automatic cuvettes washing
STAT function YES
Optical System Light Source 12V/30W halogen lamp
Wavelength 340, 405, 450, 510, 546, 578, 630, 700nm
Absorbance 0~3.0Abs
Technical Specs Diagram
🏢 Company Overview
Manufacturing Facility
Quality Control
📞 Additional Information
Support Information
❓ Frequently Asked Questions
Q1: What is the maximum testing speed of the BK-280?
A1: The analyzer can handle a throughput of up to 200 tests per hour, making it efficient for clinical laboratory needs.
Q2: How does the system handle emergency samples?
A2: This model includes a built-in STAT function, allowing for immediate processing of priority or emergency samples without interrupting the routine workflow.
Q3: Is the reagent storage temperature controlled?
A3: Yes, it features a refrigerated tray with an independent switch to ensure reagents are kept at the optimal temperature for stability and accuracy.
Q4: What type of cuvettes does the machine use?
A4: The system uses 120 reusable cuvettes with an optical length of 6mm, supported by an automatic washing system for efficiency.
Q5: What are the software and connectivity options?
A5: It is compatible with Windows 7, 8, and 10, supports LAN port access, and is LIS system ready (Bi-directional, HL7 protocol).
Q6: What certifications does this chemistry analyzer have?
A6: The device is fully certified with CE, ISO9001, ISO14001, and ISO13485, ensuring high standards of quality and safety.
