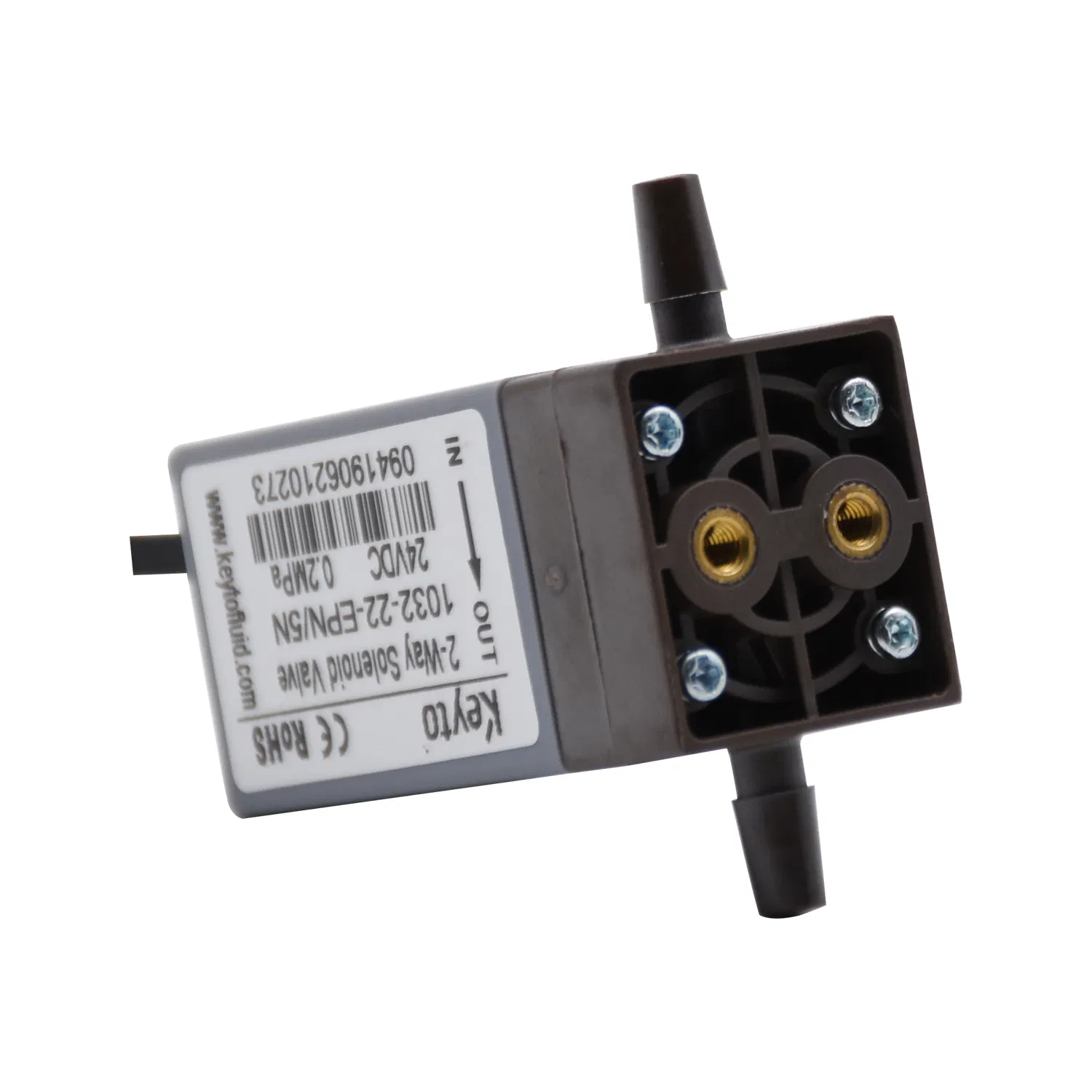

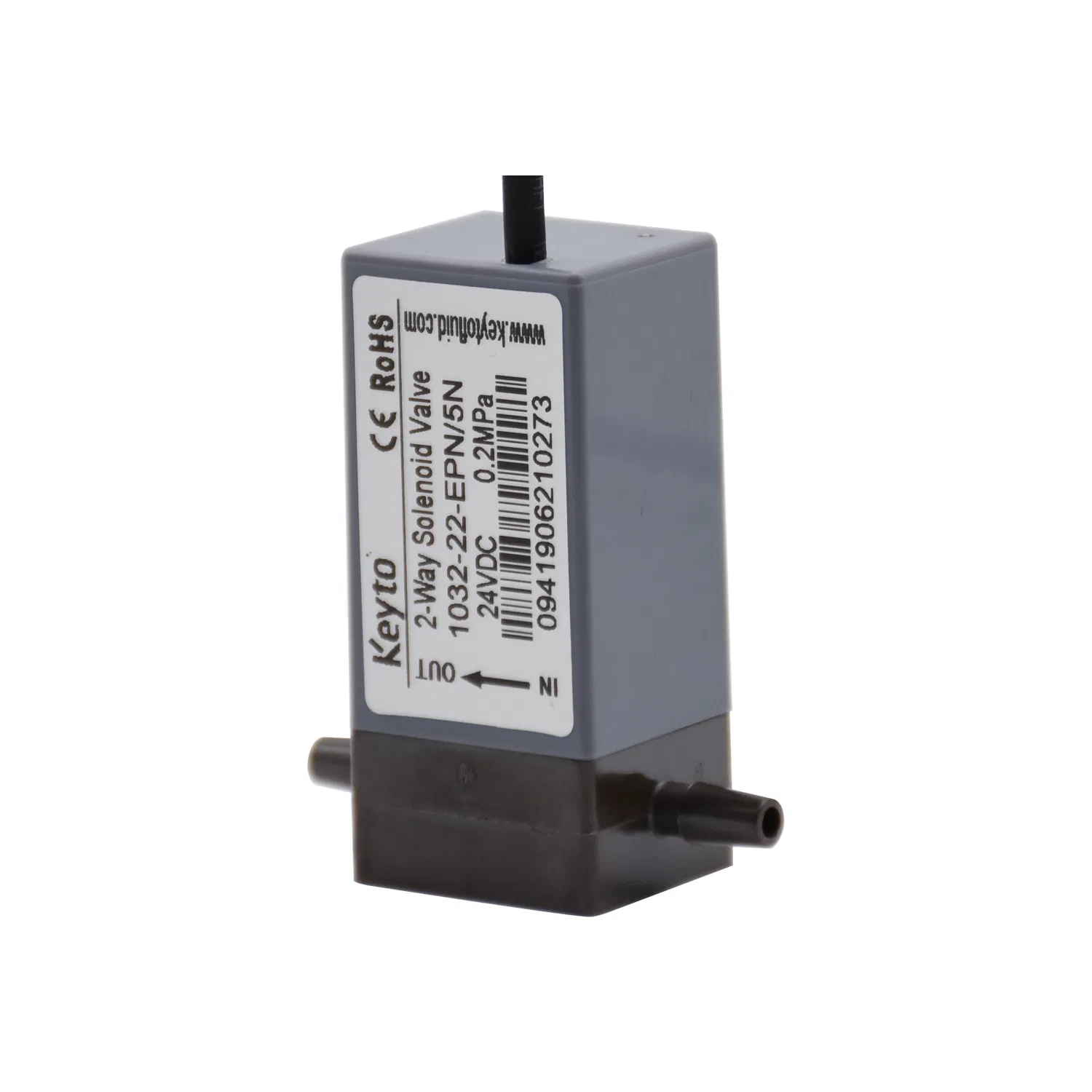

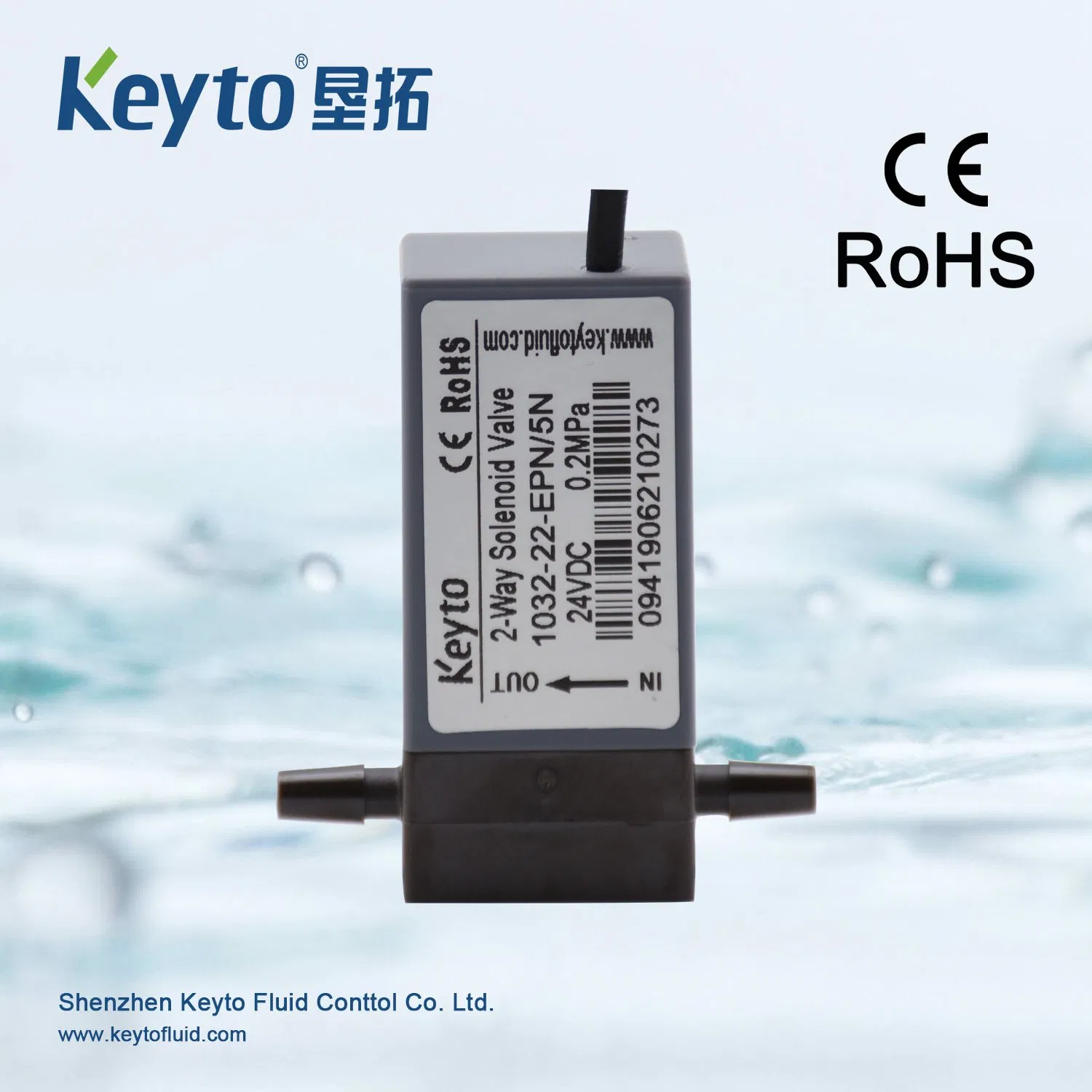

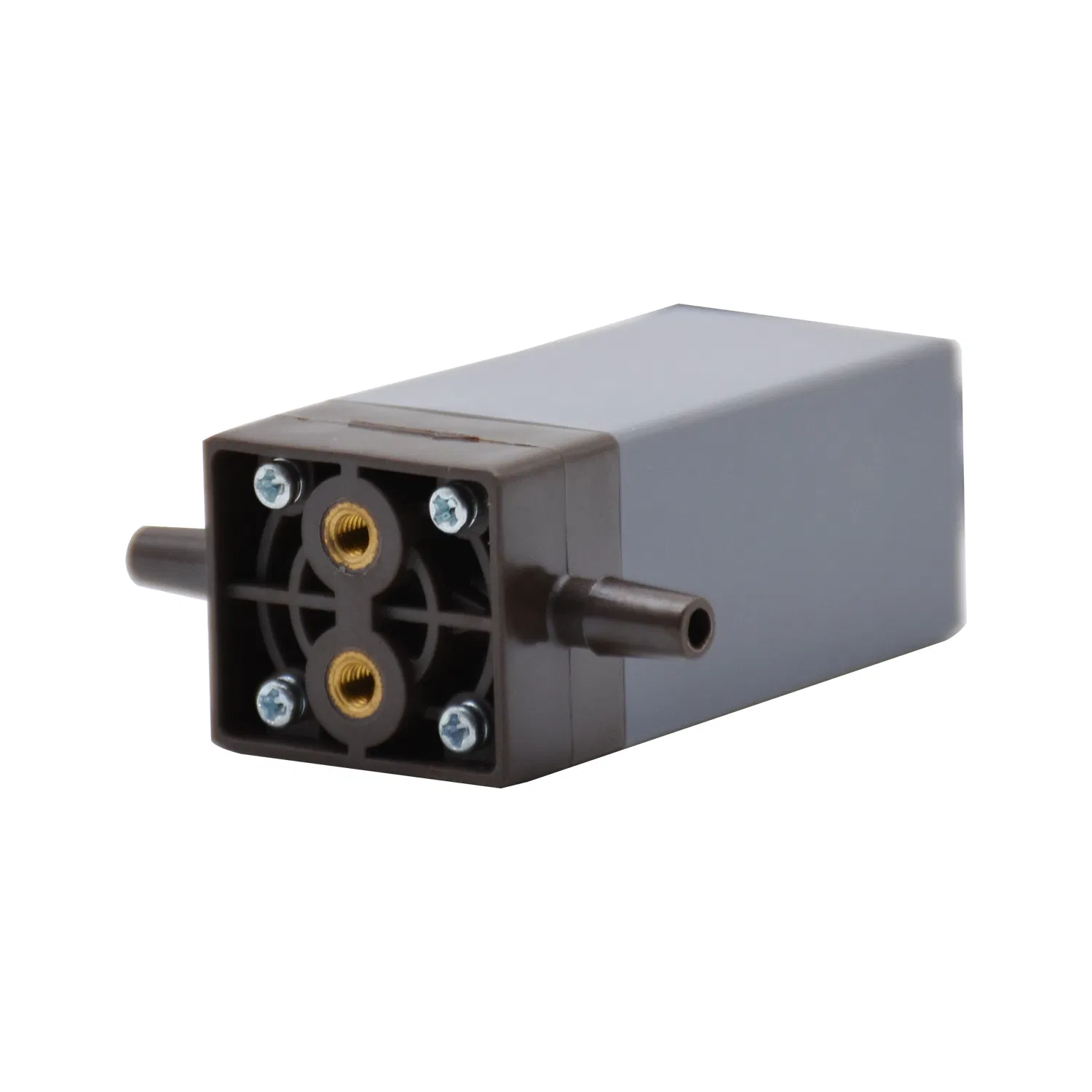

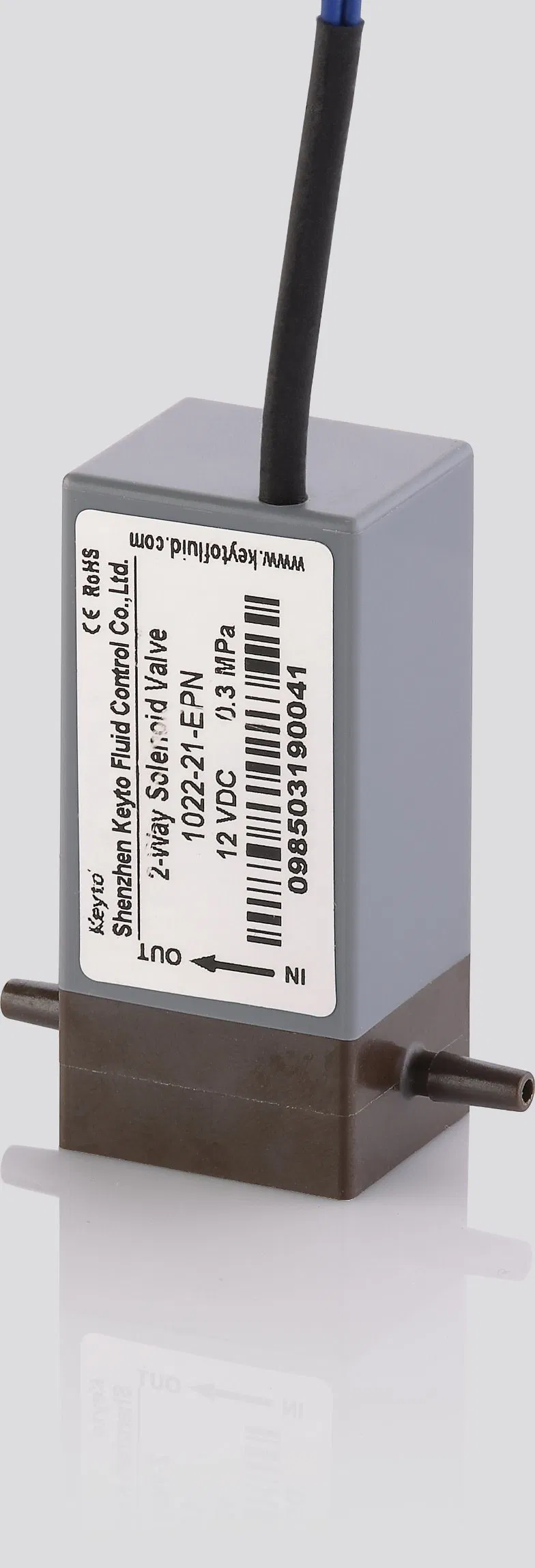

2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
1 / 5
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer
2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer

2 Way Direct-Acting Diaphragm Solenoid Valve (1032-22-EPN/5N) for Urine/Hematology/ Vaginal Infections/Chemistry Analyzer

Customization: Available
Size: 58*Φ25mm
Transport Package: Bulk Package
Send Inquiry

Product Description

Basic Specifications

Model NO.
1032-22-EPN/5N
Specification
CE, RoHS
Origin
China
HS Code
8481804090
Production Capacity
200,000 PCS/Year

Key Features

🛡️ Withstand high pressure
🌊 Large flow rate
⚙️ Long life span
🧪 Suitable for water, air, organic solvents, acid and base corrosive mediums

Technical Parameters

Model 1032 2-way Body Parted Solenoid Valve
Body material PPS
Seal material EPDM, FFKM
Outline Dimension 20.5 * 23.5 * 51.2 mm
Structure Direct-acting diaphragm
Number of port 2
Orifice diameter 2.5 mm
Flow 8.5 g/s (water, 25ºC, 50 kPa)
Voltage 24V
Power consumption 3.5 W
Operating pressure -70 kPa ~ 0.2 mPa

Installation & Dimensions

Installation Diagram 1
Installation Diagram 2
Product Dimension View
Technical Drawing
Solenoid Valve Structure

Frequently Asked Questions

What types of media can the 1032 Solenoid Valve handle?
The valve is designed to be compatible with a wide range of media including water, air, various organic solvents, as well as acidic and basic corrosive substances.
What materials are used for the body and seals?
The body is constructed from PPS (Polyphenylene Sulfide), and the seal materials available are EPDM or FFKM, ensuring durability and chemical resistance.
What is the operating pressure range for this model?
The 1032 series operates effectively within a pressure range of -70 kPa to 0.2 mPa.
What are the electrical requirements?
This solenoid valve operates on a 24V voltage with a power consumption of 3.5 W.
What is the orifice diameter and flow rate?
The valve features a 2.5 mm orifice diameter and provides a flow rate of 8.5 g/s (tested with water at 25ºC and 50 kPa).
Is the valve compliant with international standards?
Yes, the 1032-22-EPN/5N model is fully compliant with CE and RoHS specifications.
