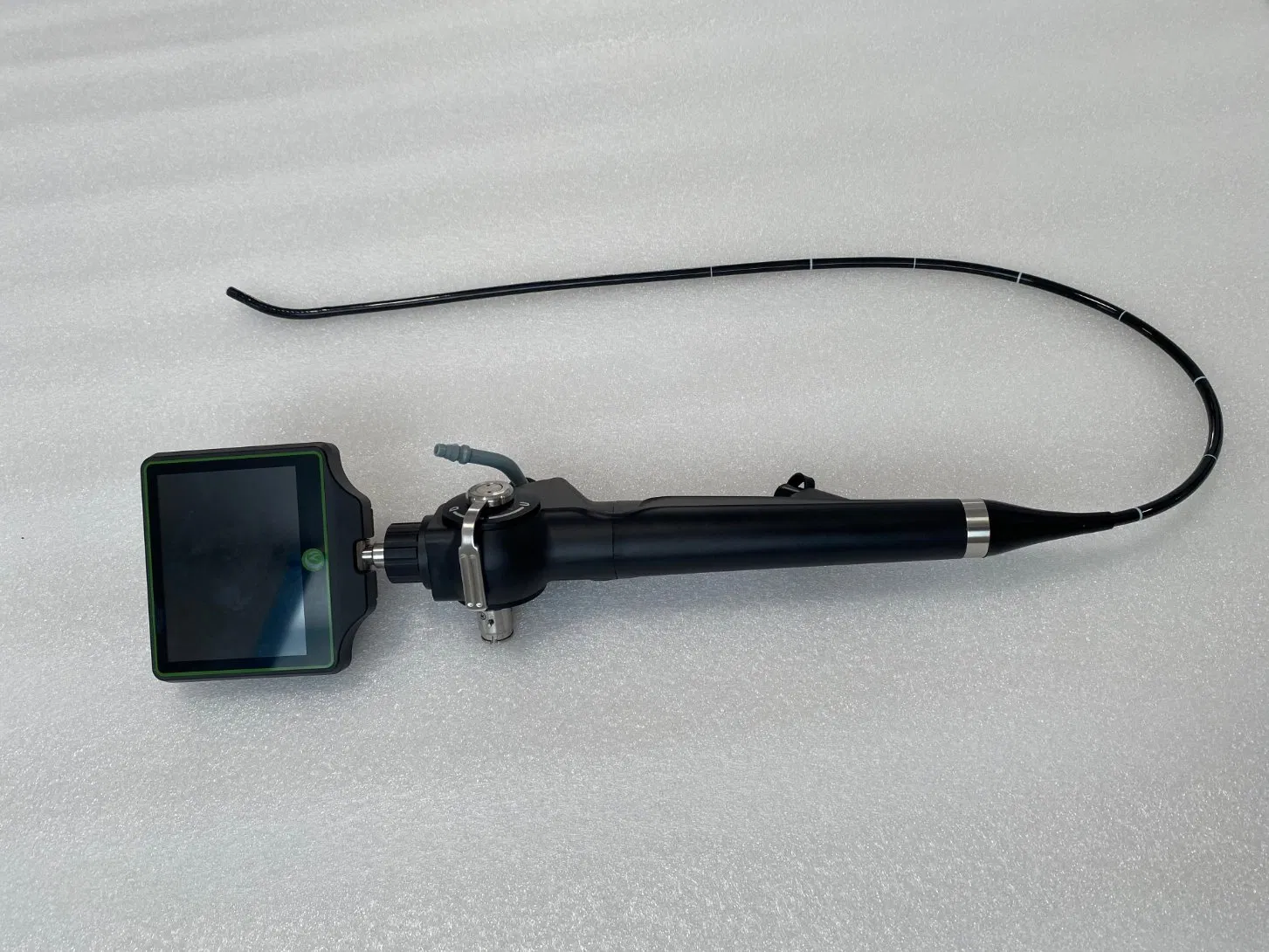

Portable Fiberoptic Bronchoscope Kit with LED Light Source for Respiratory Endoscopy Procedures

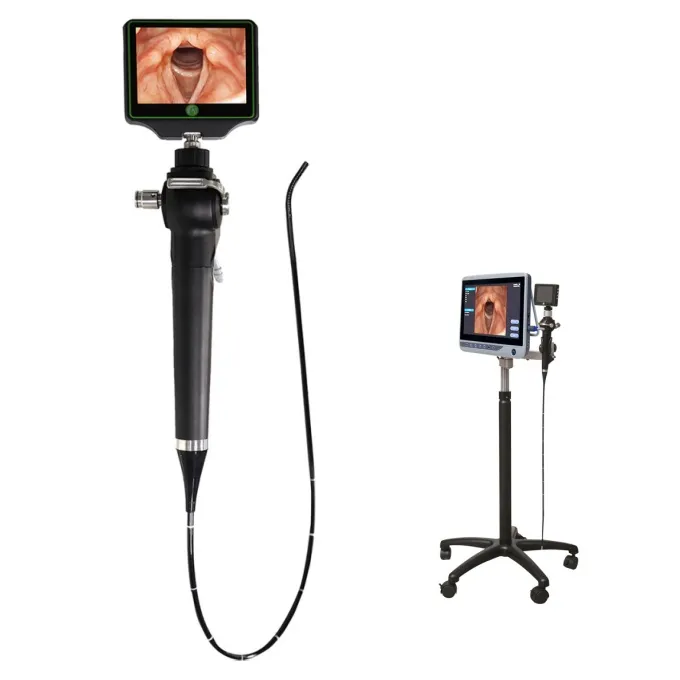

This handheld electronic device is suitable for clinical departments to carry out airway management, especially difficult tracheal intubation, nasal tracheal intubation, and placement of bronchial occluders. It enables physicians to accurately complete tracheal intubation under direct vision and endobronchial intubation positioning.
Key Features:
| Parameter Item | Specifications | ||||
|---|---|---|---|---|---|
| Visual Field | 90°± 10% | ||||
| Observe depth | 3-100mm | ||||
| Intubation diameter | 3.2mm | 3.8mm | 4.8mm | 5.2mm | 5.8mm |

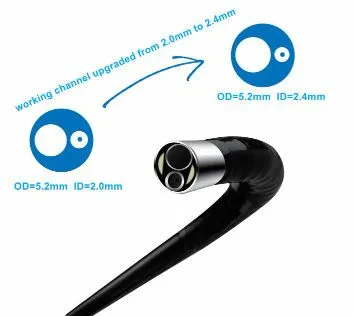

| Suction channel | 1.2mm | 1.4mm | 2.4mm | 2.6mm | 2.8mm |
| Effective work length | 600mm | ||||
| Curved angle | Upward 150°, Downward 130° | ||||
| Illuminance | ≥800lux | ||||
| Pixel | 2,000,000 pixels | ||||

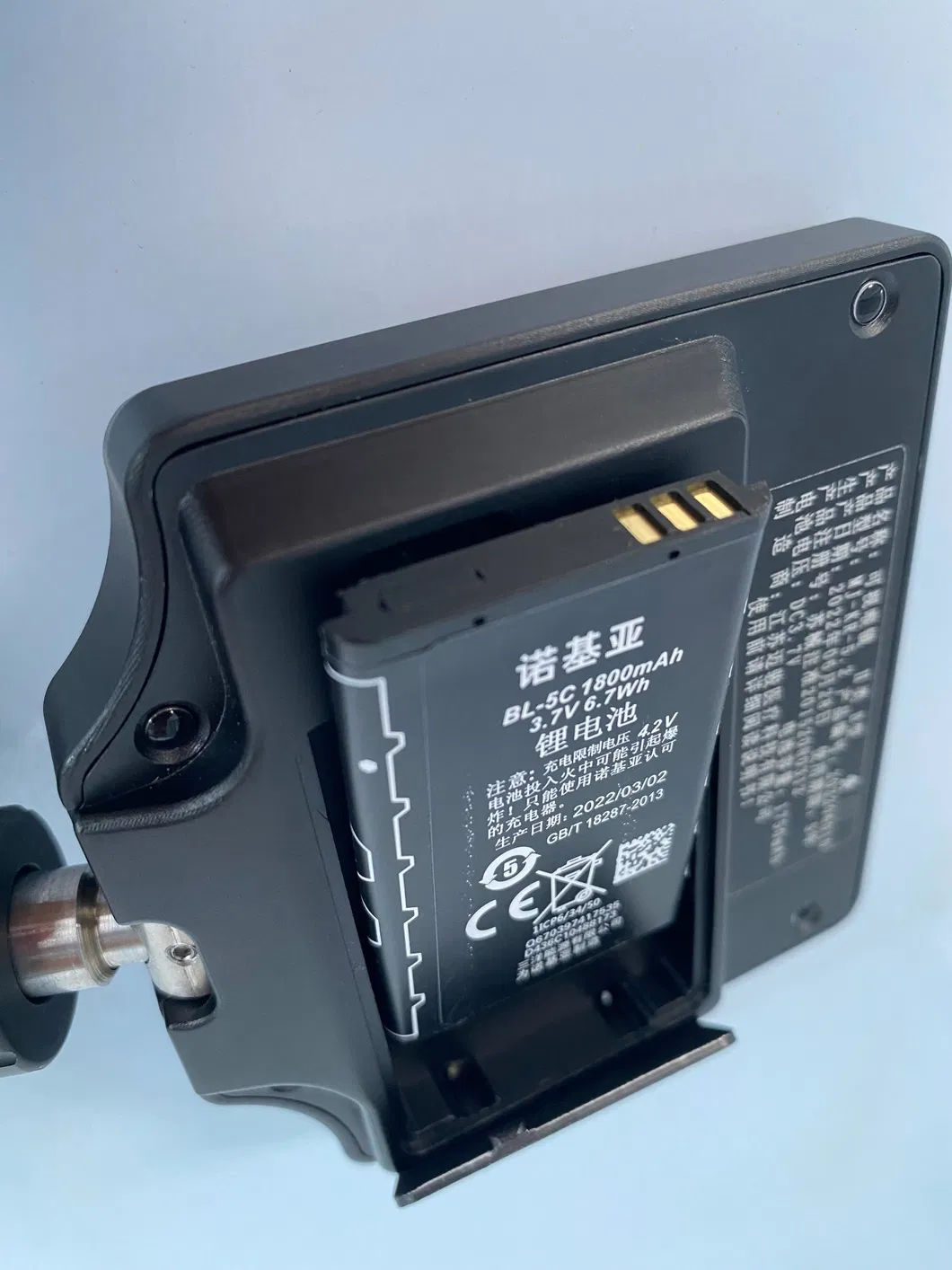

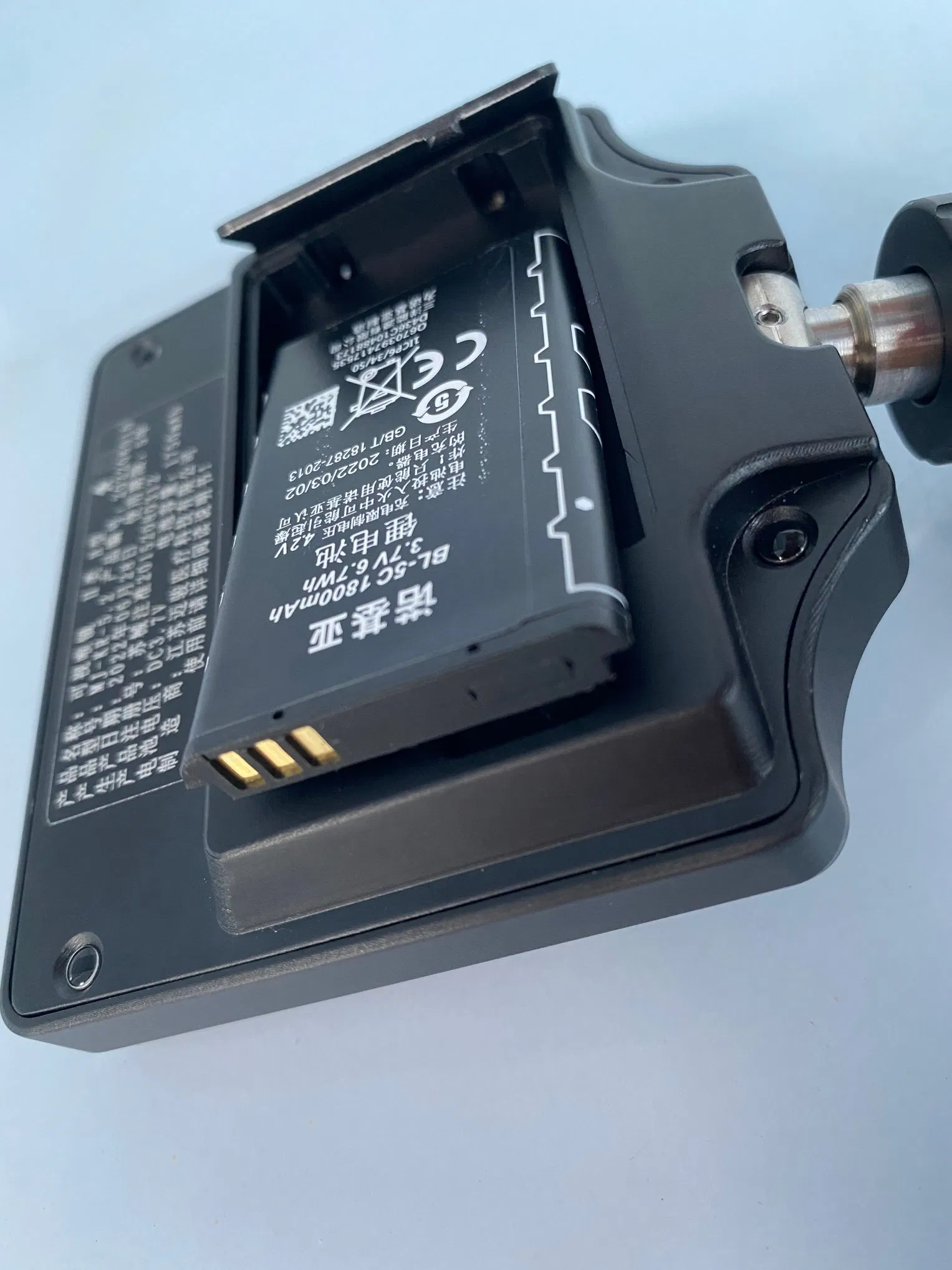

| Battery Capacity | 1850mA (Built-in 3.7V polymer) | ||||
| Revolve angle | Up/Down 0-180°, Left/Right 0-330° | ||||

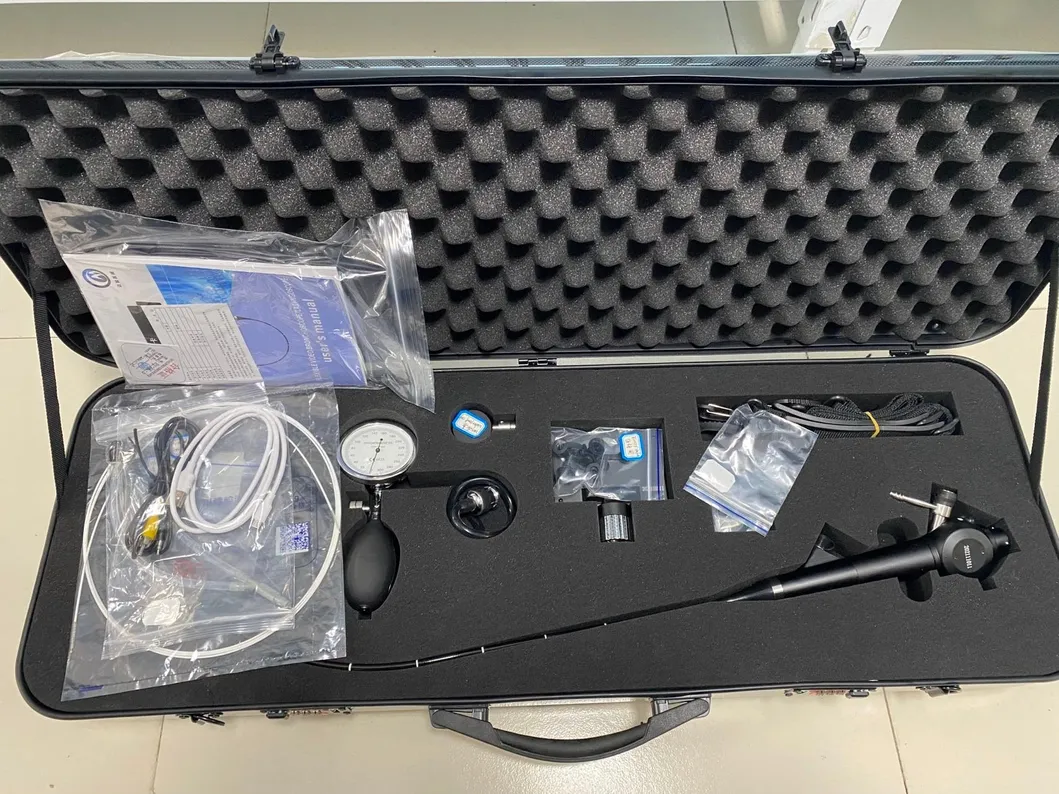

| ITEM | QTY | ITEM | QTY |
|---|---|---|---|
| 3.5inch display | 1 set | Operative section | 1 pc |
| Recharger battery | 1 pc | Pressure compensation cap | 2 pcs |
| Waterproof cap | 2 pcs | Reusable biopsy valve | 2 pcs |
| Suction button | 2 pcs | Leak detector | 1 pc |
| Cleaning brush | 1 pc | SD save card | 1 pc |

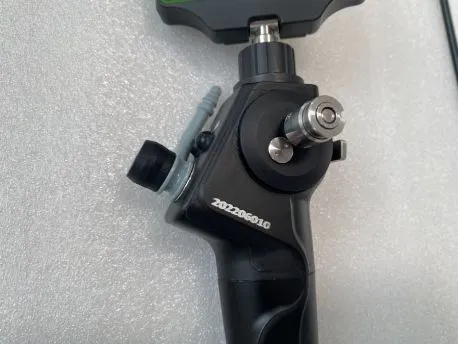

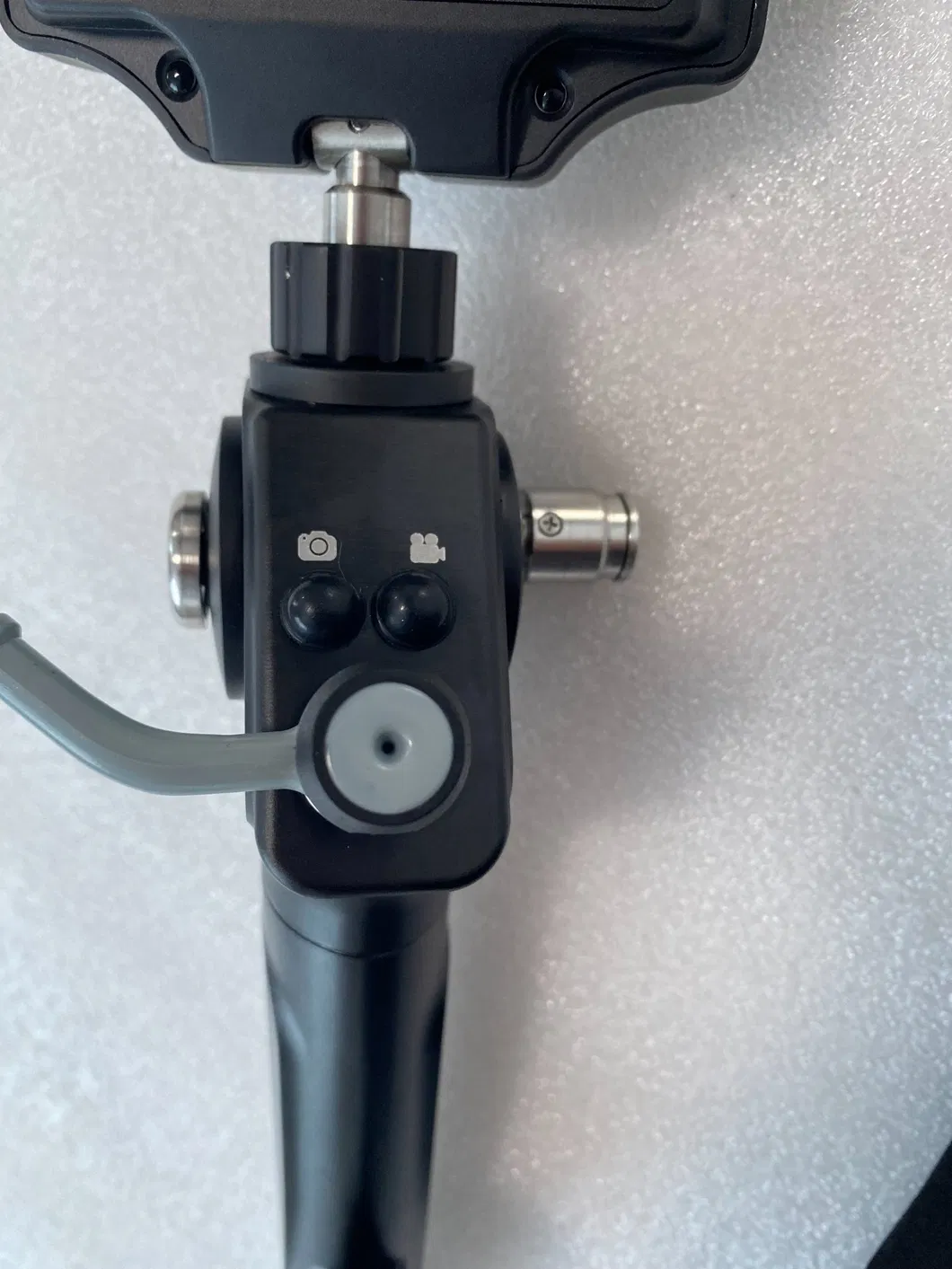

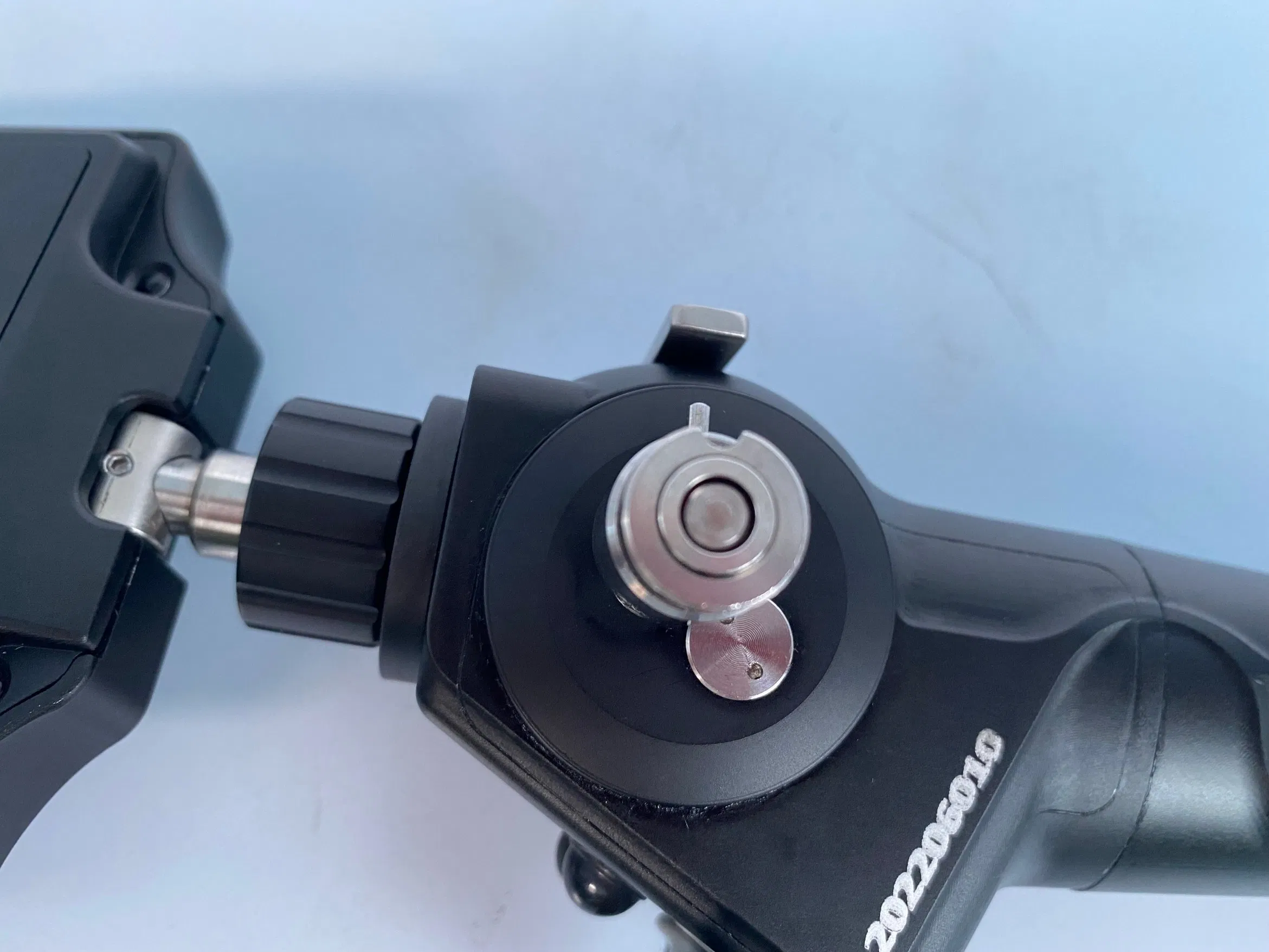

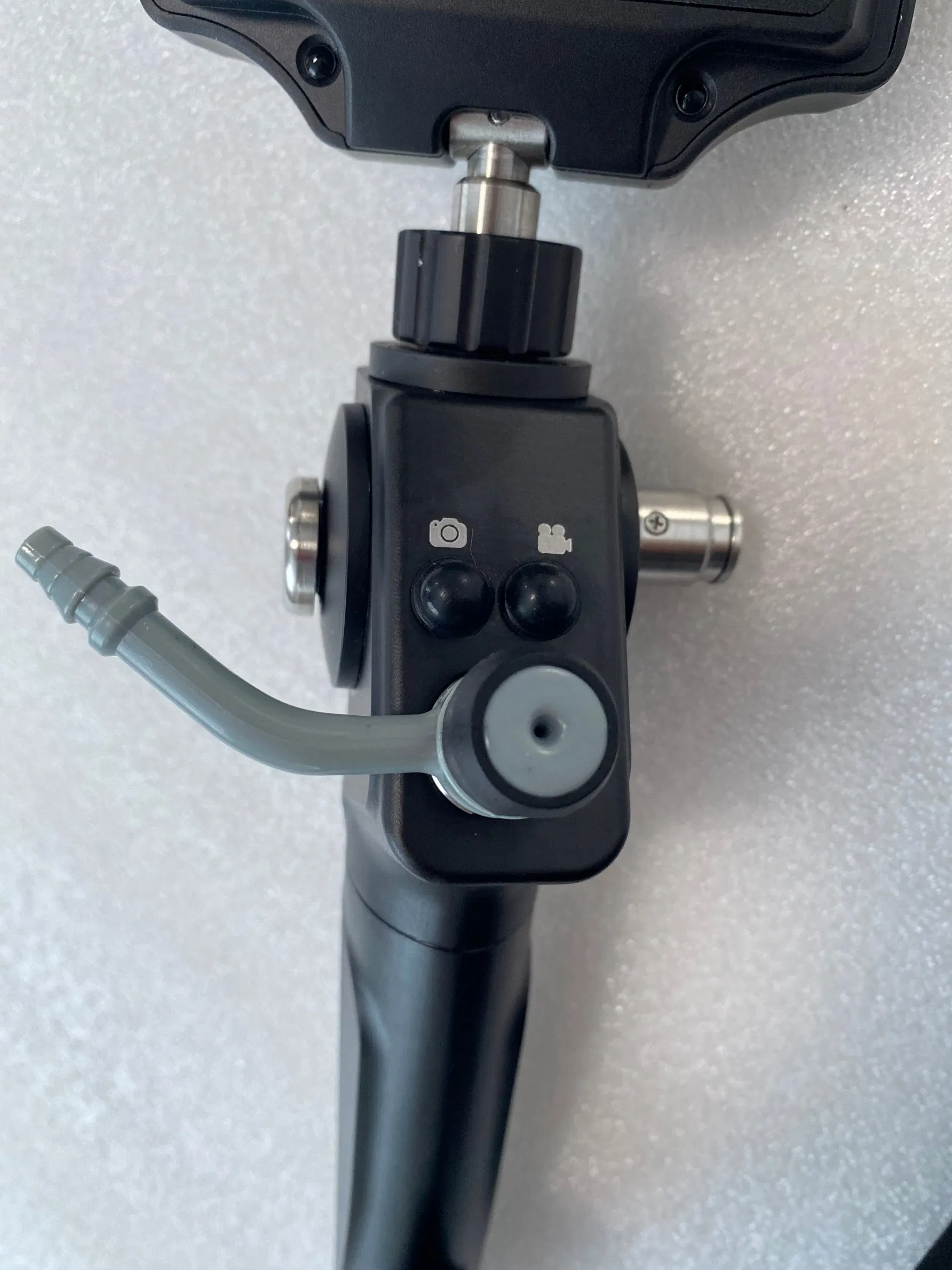

Operating Part: Features an operating wrench connected to a circular drum with traction wire. Turning the wrench drives the wire to zoom in/out, achieving precise bending.

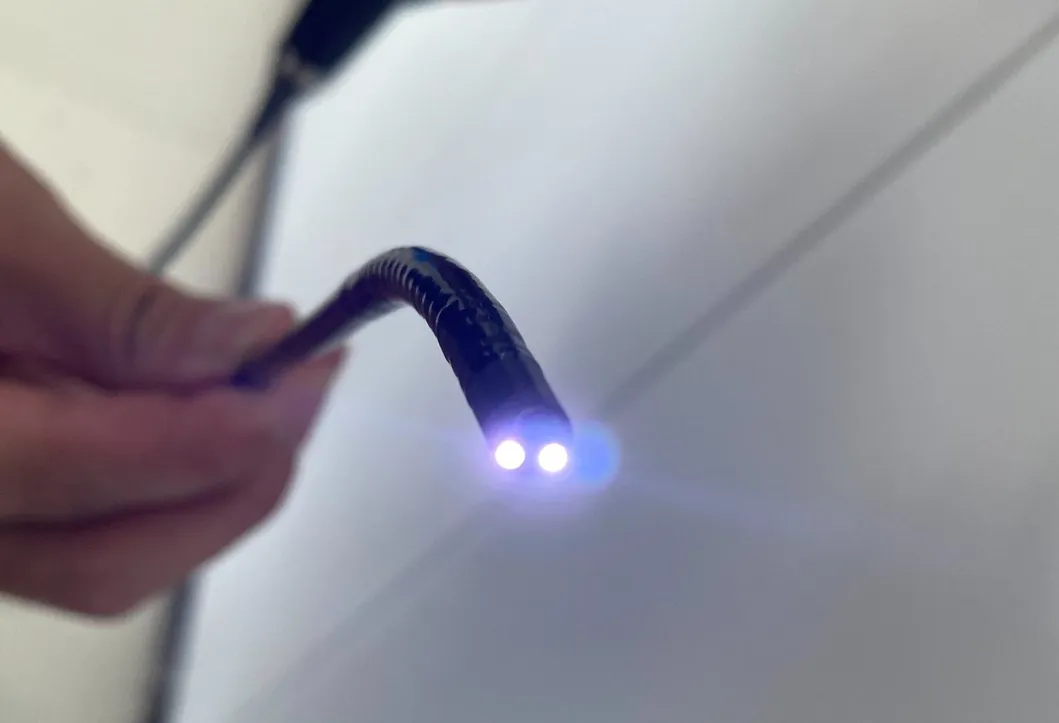

LED Illumination: White light ≥800lux, utilizing nano anti-fog cold light source technology for durable, clear vision.
