| Model NO. | EEG2 | Group | All |
|---|---|---|---|
| Trade Terms | EXW, FOB, CFR, CIF | Channels | 24 Monopolar and 8 Bipolar Channels, Customizable |
| Resolution | 24-Bit Analog-to-Digital Conversion | Origin | China |

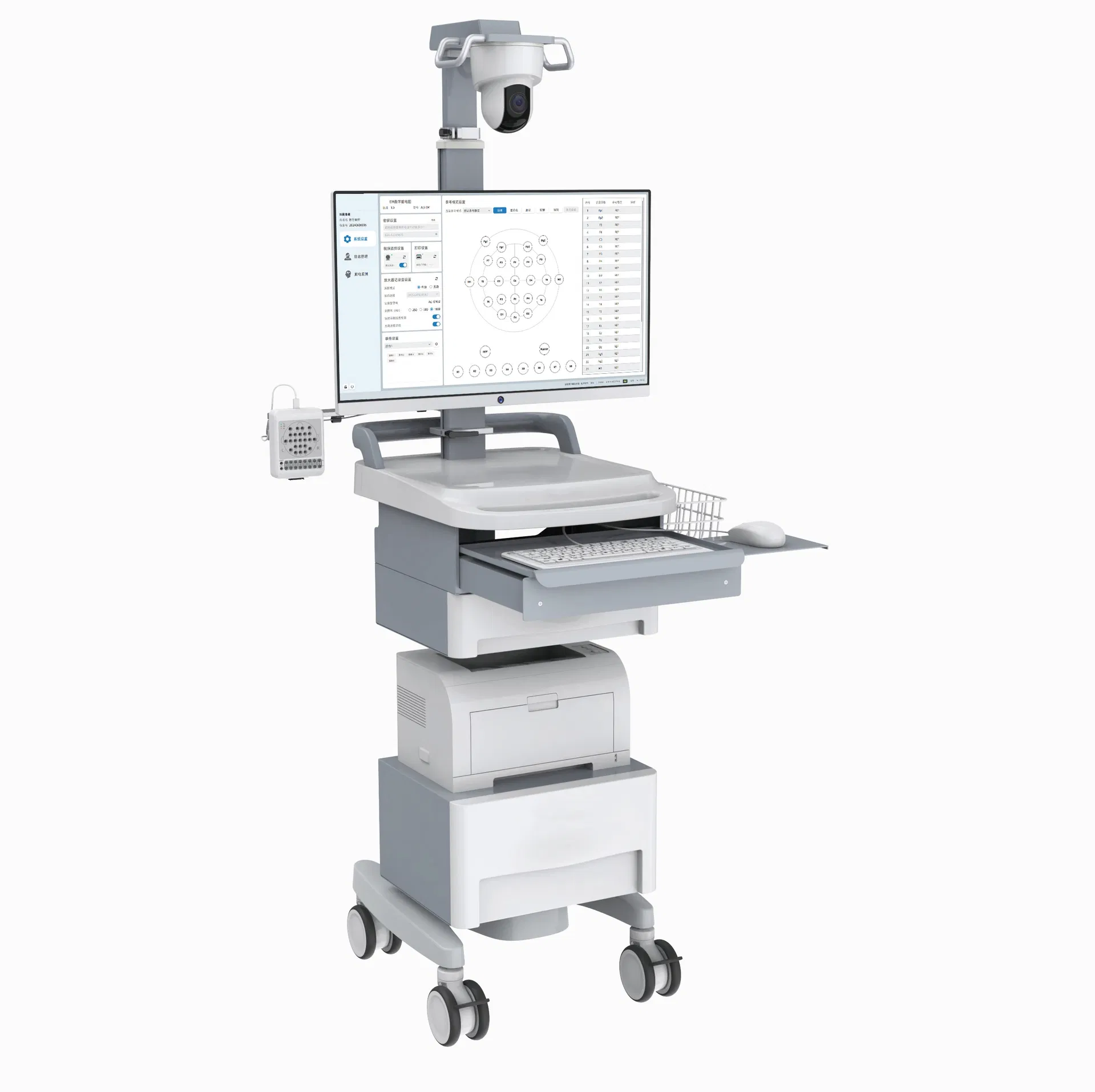

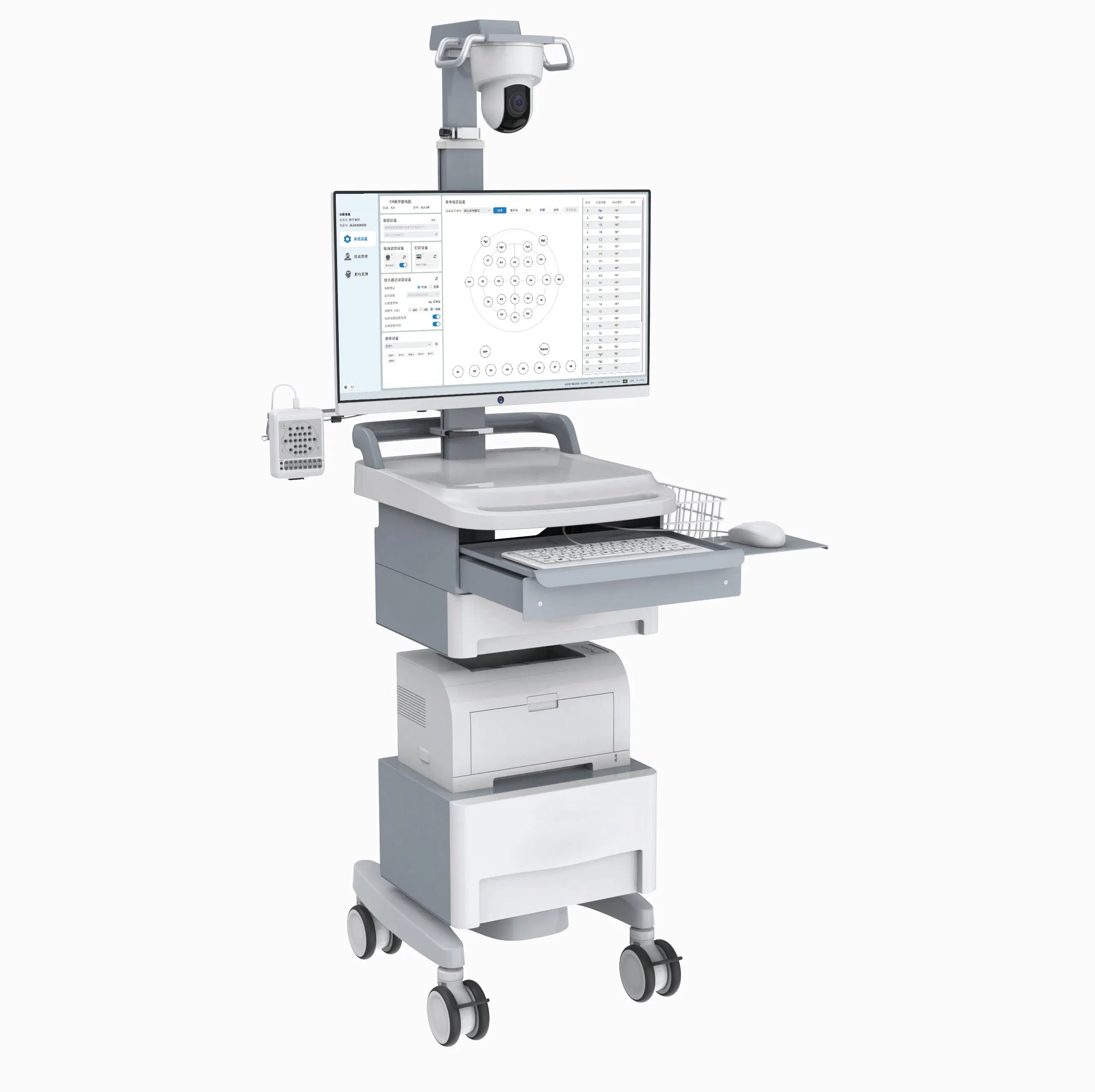

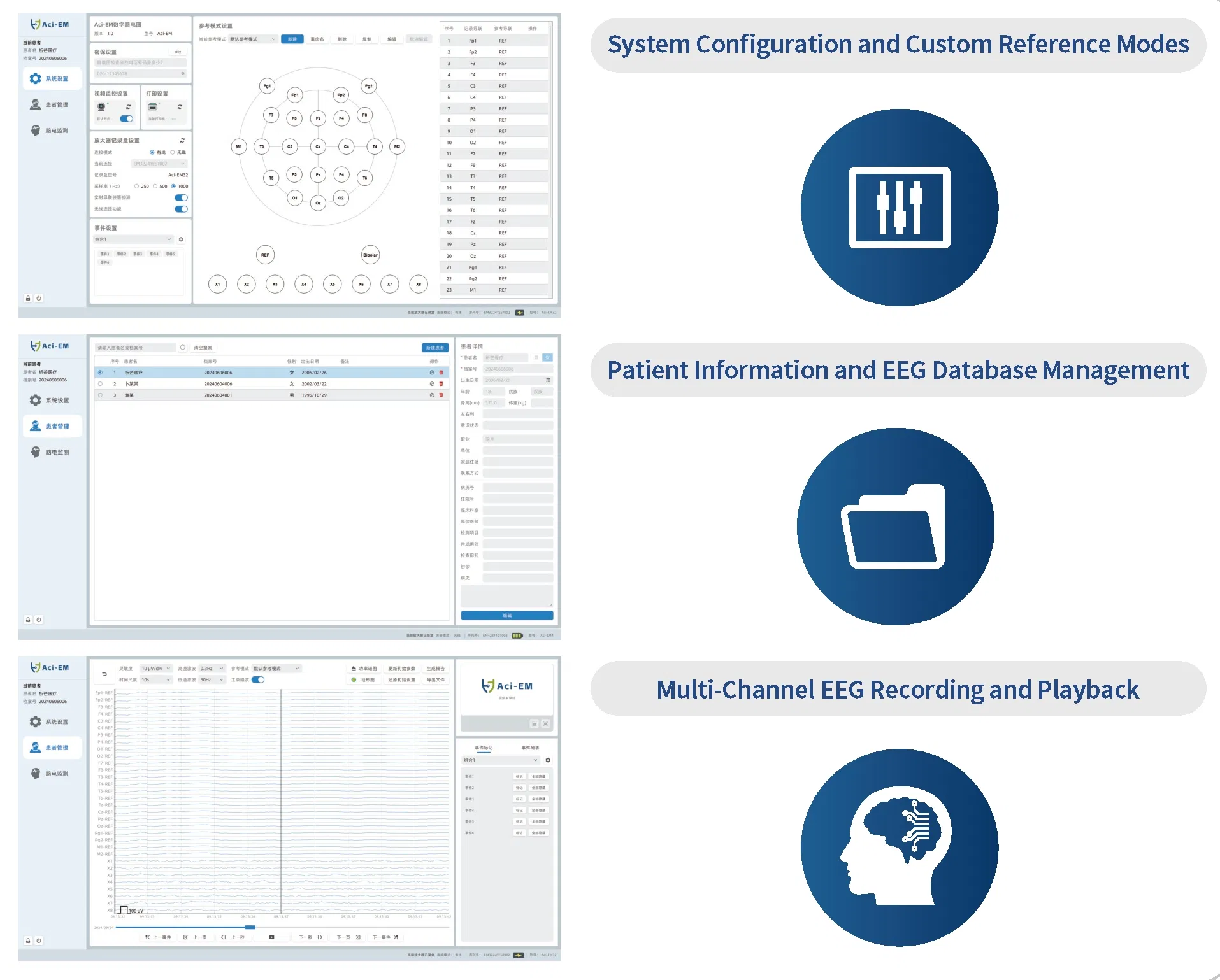

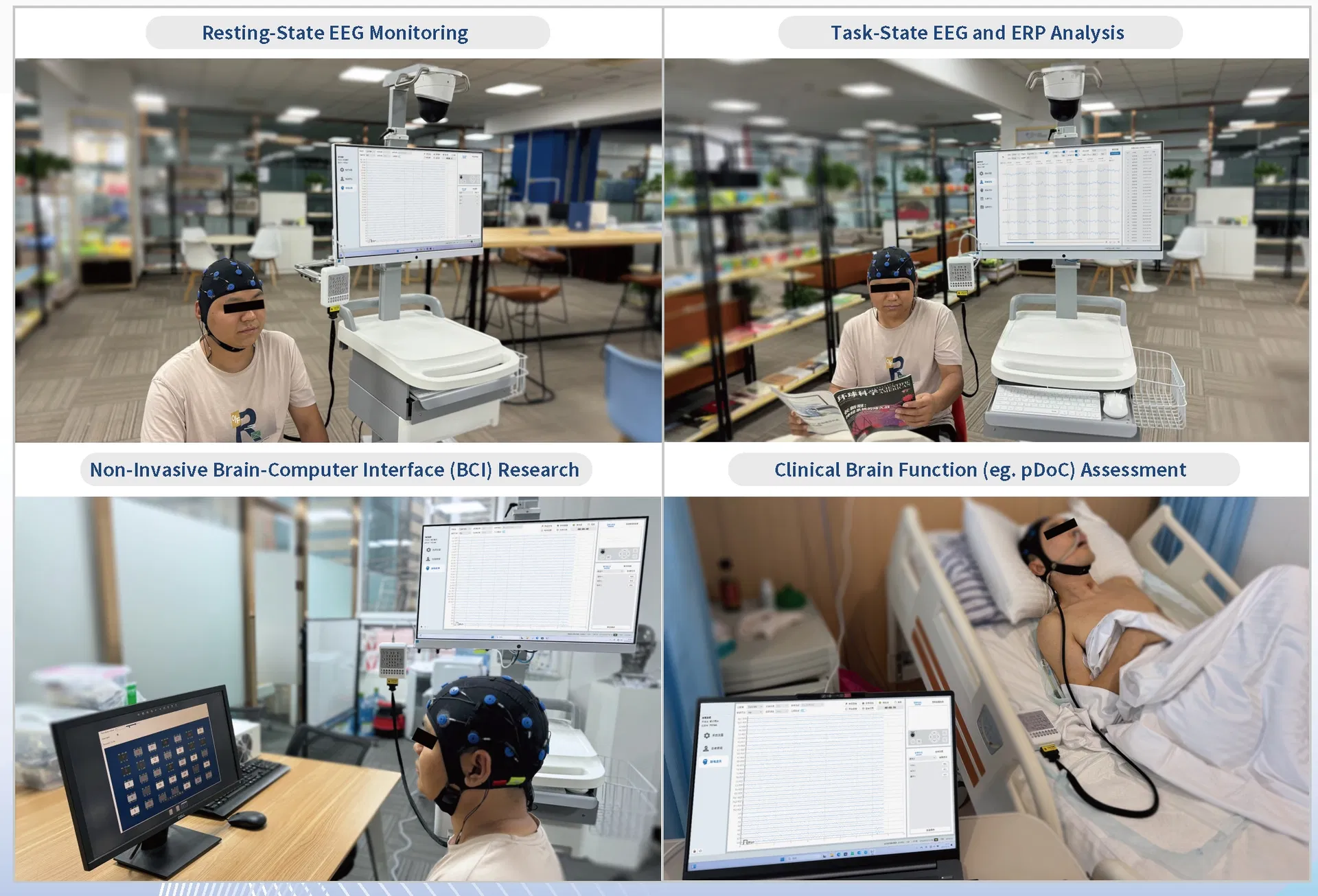

The digital EEG system is tailored for clinical EEG and EMG monitoring. Renowned for its global advanced performance, it enables high-precision, low-noise, and long-duration multi-channel recordings—seamlessly synchronized with high-resolution video. This system is pivotal for clinical assessments, analyses, and diagnoses across a range of neurological domains, including brain function, consciousness, cognition, muscle tone, and motor functions.

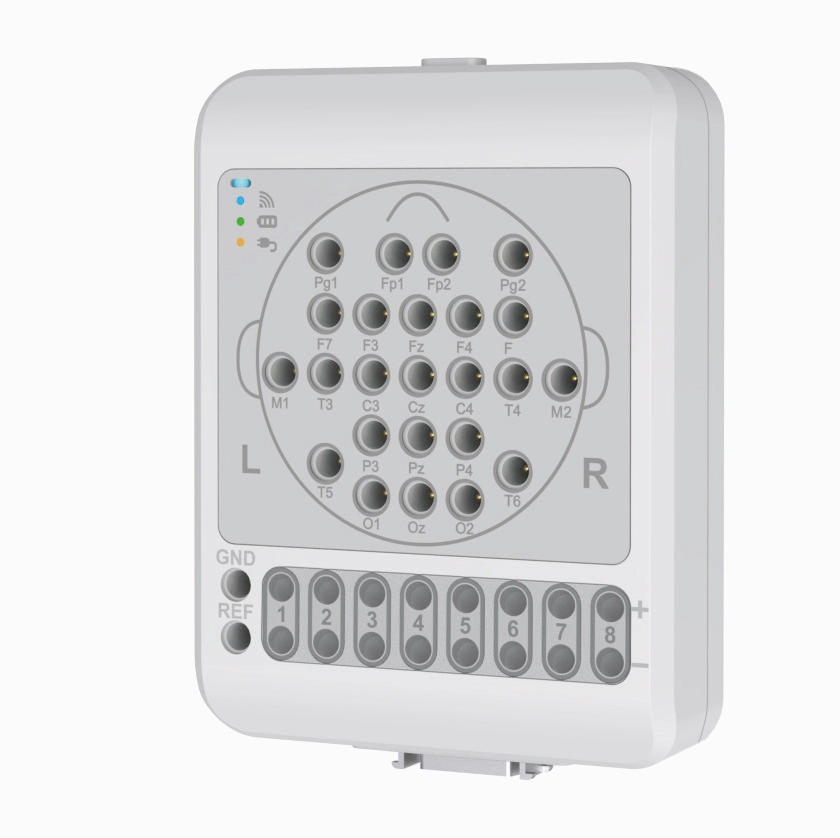

| Channels | 24 monopolar and 8 bipolar channels, configurable up to 32 |
| Sampling Rates | Adjustable at 1000 Hz, 500 Hz, and 250 Hz |
| Resolution | 24-bit analog-to-digital conversion |
| Input Noise | ≤ 2 μV pp |
| CMRR | ≥120 dB |
| High-Pass Filter | 0.1 Hz, 0.3 Hz, 0.5 Hz, 1 Hz, 5 Hz |
| Low-Pass Filter | 15 Hz to 120 Hz, or disabled |
| Sensitivity | 5 to 50 μV/div across ten levels |

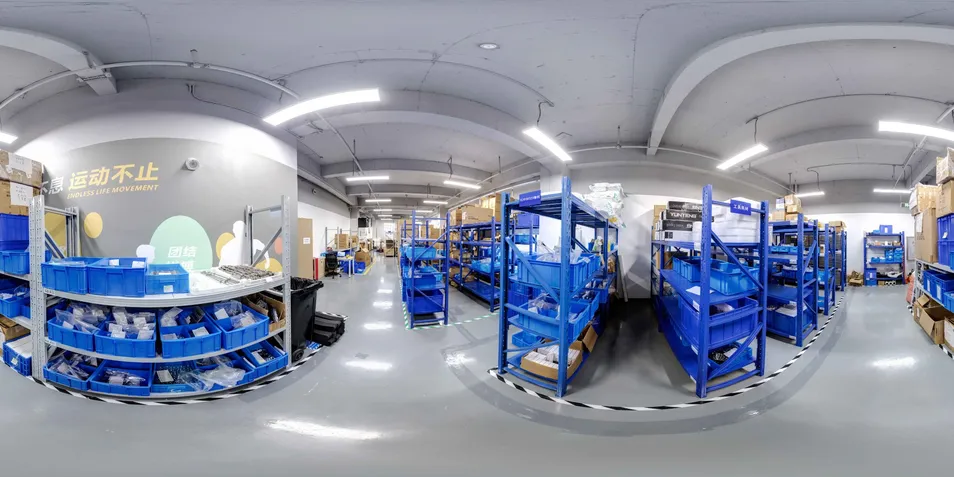

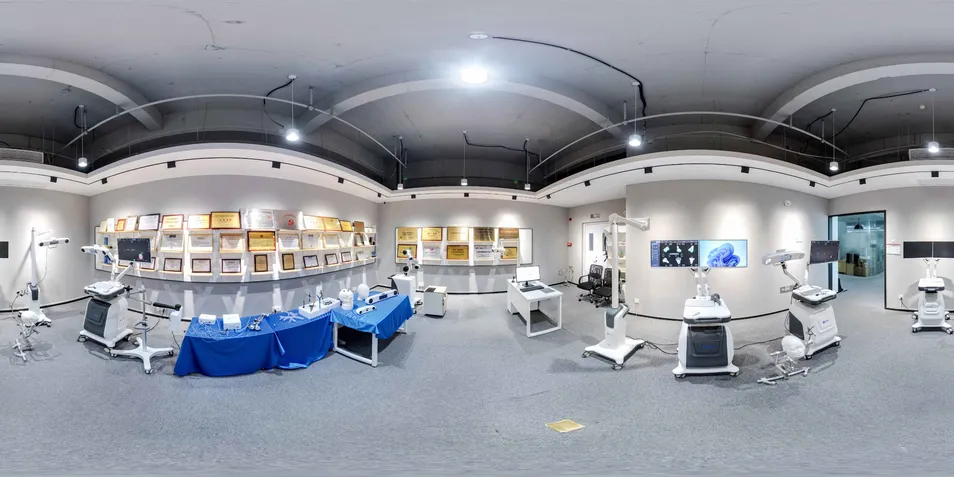

The company is a high-tech, innovative healthcare company equipped with robust AI computing power, big data platforms, and affiliations with multiple medical institutes and premium manufacturers. Dedicated to providing AI-driven digital healthcare services and intelligent solutions for the global healthcare sector. Expertise covers clinical care, rehabilitation, and In Vitro Diagnostics (IVD) fields, with a focus on delivering cutting-edge intelligent solutions spanning surgical procedures, neurosurgical brain-computer interfaces, and AI-powered rehabilitation.
