Basic Specifications
Certification
CE, ISO13485
Properties
Implant Materials & Artificial Organs
Instrument Class
Class III
After-Sale
Online Technical Support
Package
Sterile/Non-Sterile Package
Product Features
- Reversible Use: Locking maxillofacial micro and mini plates can be used reversibly.
- Locking Mechanism: Advanced squeeze locking technology.
- Versatile Holes: One hole accommodates both locking and non-locking screws for free collocation.
- Premium Material: Customized German ZAPP pure titanium with superior biocompatibility and uniform grain size.
- Imaging Friendly: Does not affect MRI or CT examinations.
- Anatomical Design: Concave hole design and smooth edges reduce soft tissue discomfort and stimulation.
Matching Screws & Instruments
🔩
Screws:

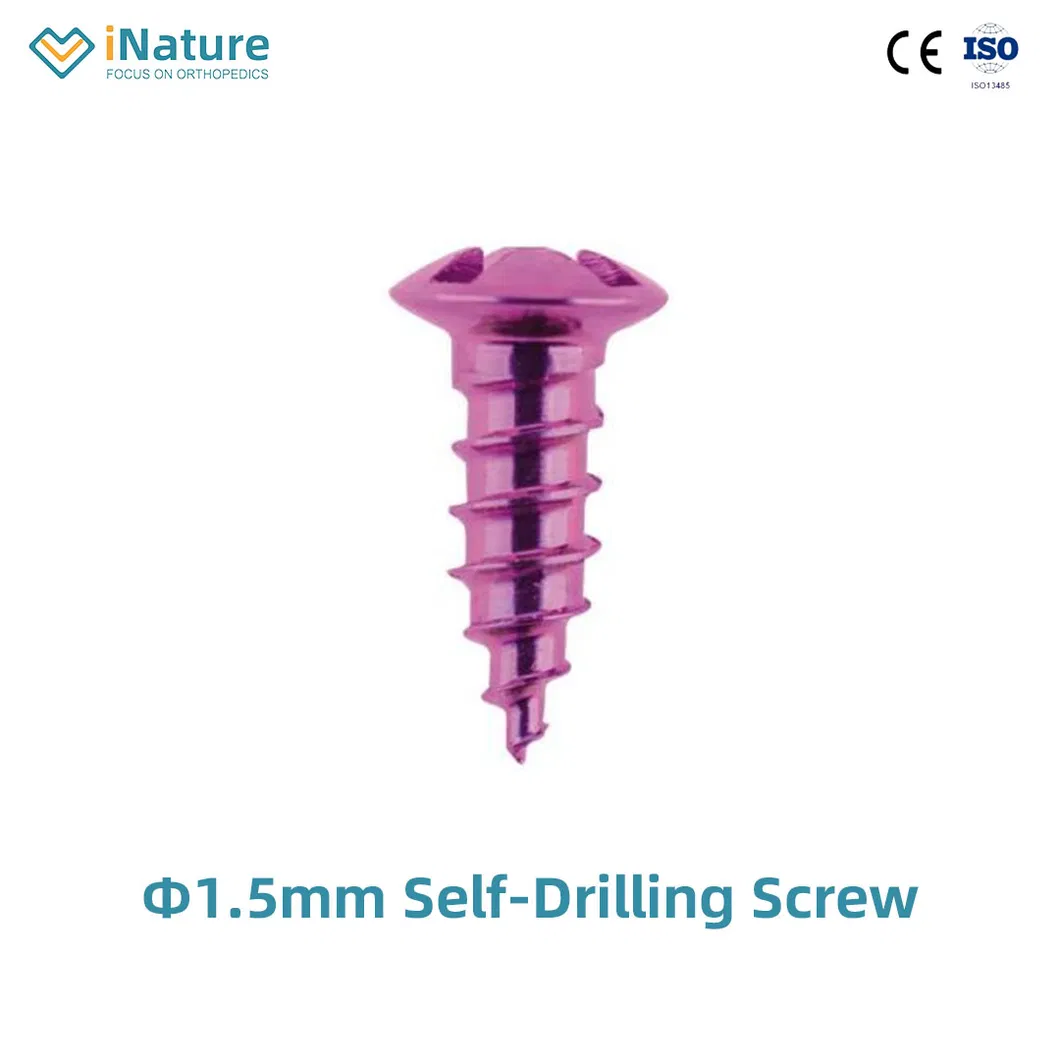

φ1.5mm self-drilling, self-tapping, and locking screws.
🛠️
Instruments:
Medical drill bit (φ1.1*8.5*48mm), Cross head screwdriver (SW0.5*2.8*95mm), and straight quick coupling handle.
Technical Specifications
| Model |
Specification (Holes, Thickness, Length) |
| Maxillofacial Micro Locking X-Plate | 4 holes, 0.6mm, 14mm |

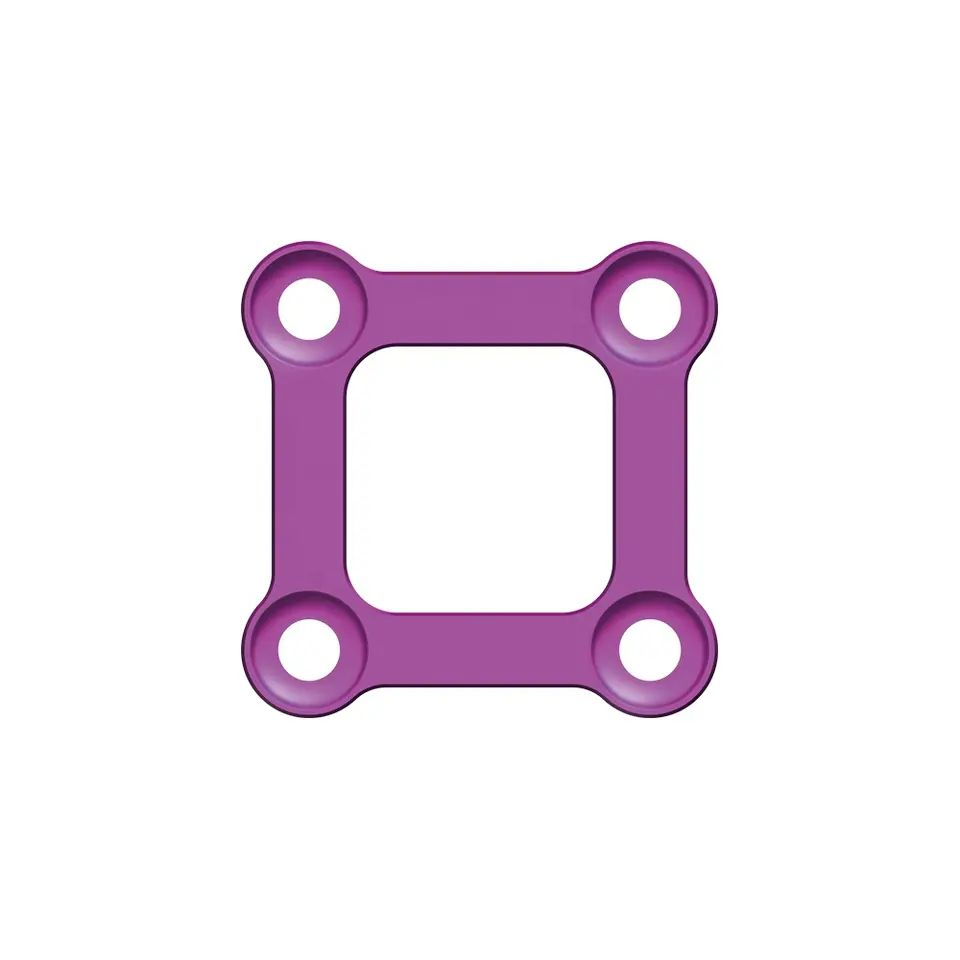

| Maxillofacial Micro Locking Rectangular Plate | 4 holes, 0.6mm, 14*14mm |
| Maxillofacial Micro Locking Straight bridge Plate | 4 holes, 0.6mm, 20mm |

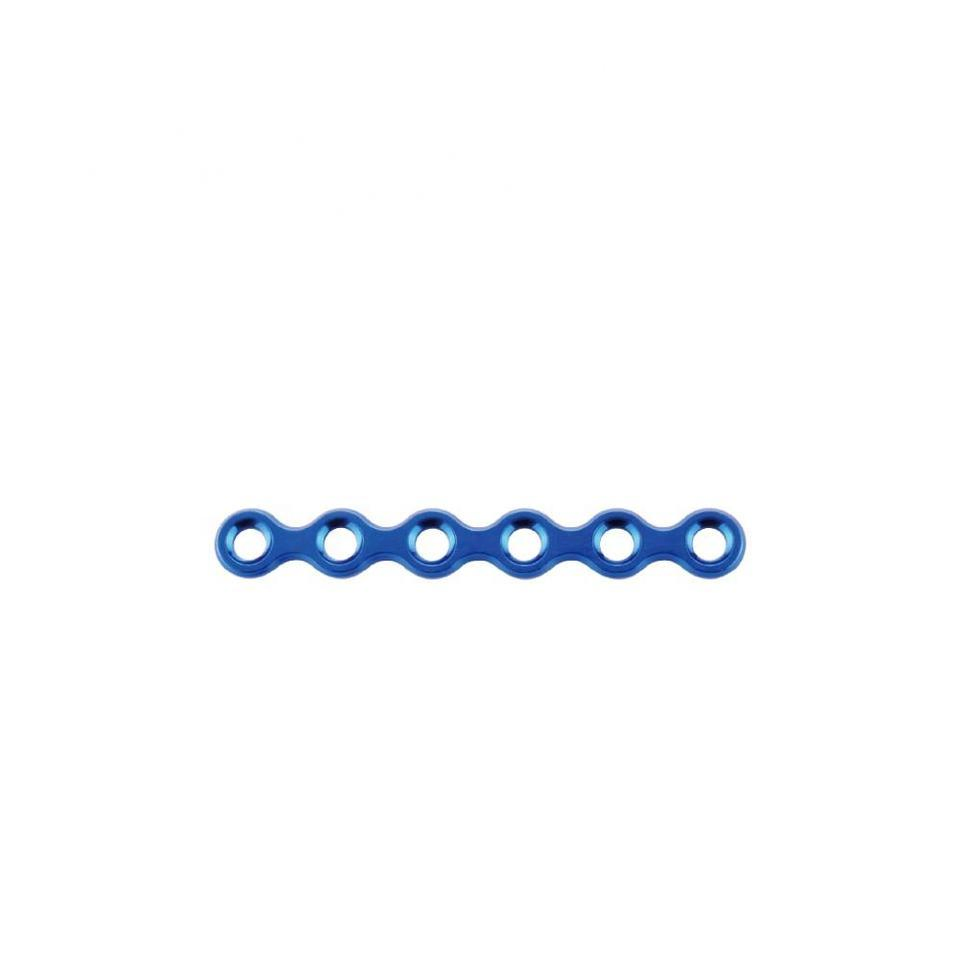

| Maxillofacial Micro Locking Straight Plate | 6-14 holes, 0.6mm, 24-56mm |
| Maxillofacial Micro Locking Arc Plate | 6-14 holes, 0.6mm, 24-49mm |

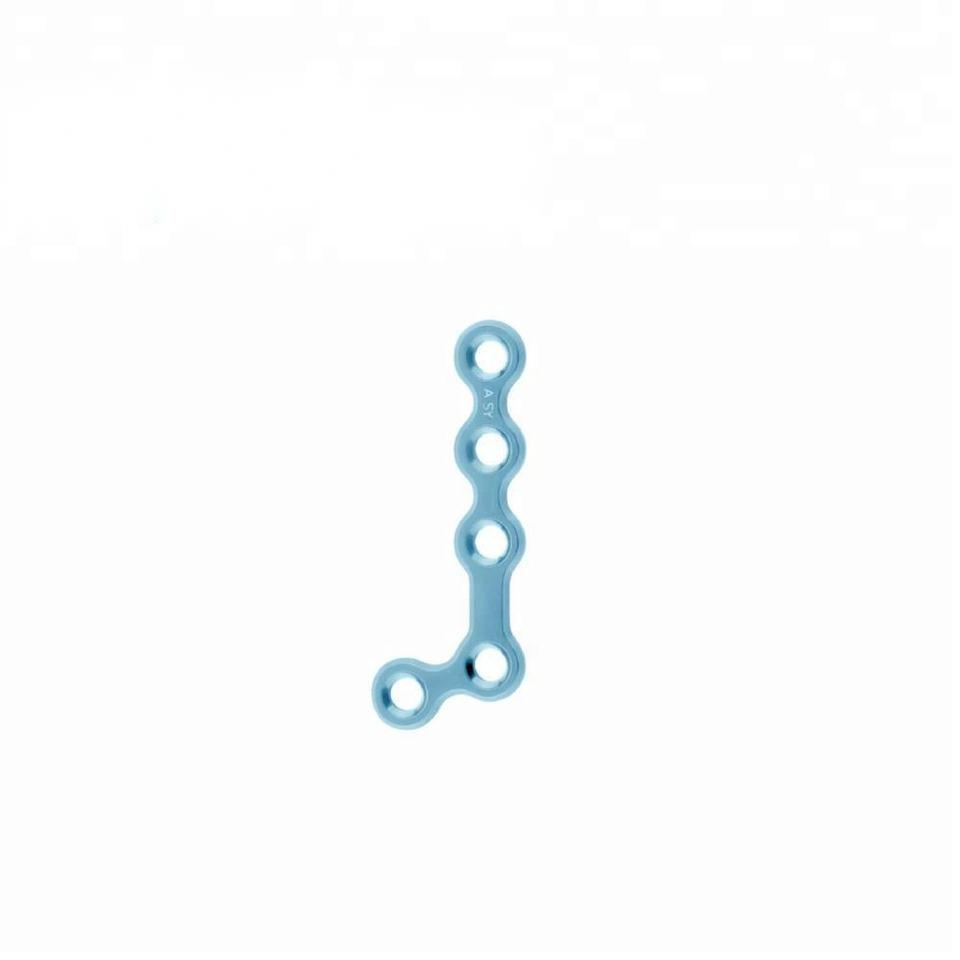

| Maxillofacial Micro Locking 110°L-plate | 4-5 holes, 0.6mm, 16-20mm |
| Maxillofacial Micro Locking 90°L-plate | 4 holes, 0.6mm, 16mm |

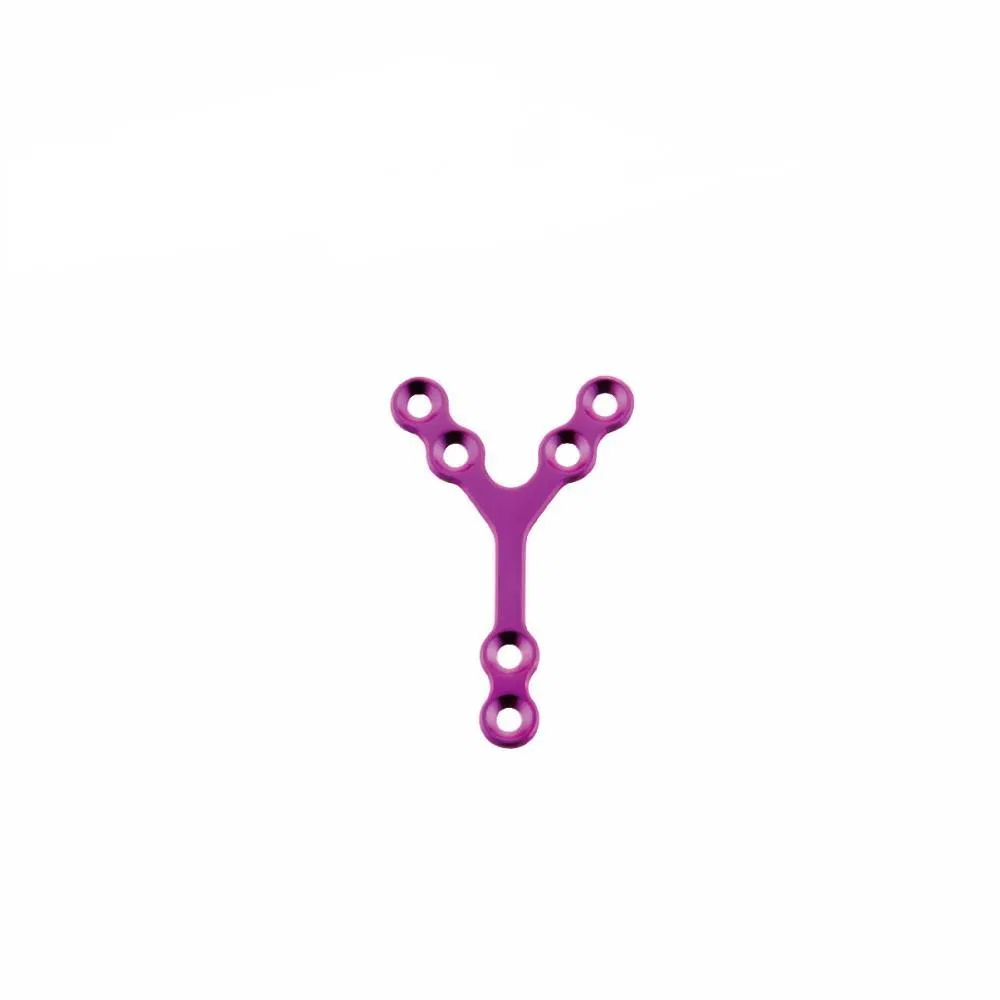

| Maxillofacial Micro Locking Y-plate | 6-7 holes, 0.6mm, 17-28mm |
| Maxillofacial Micro Locking T-plate | 5-7 holes, 0.6mm, 16-24mm |
*All prices are for reference. Exact price based on latest quotation.
Product Gallery
Frequently Asked Questions
What material is used for the maxillofacial implants?
The bone plates are manufactured using specialized German ZAPP pure titanium, ensuring excellent biocompatibility and high-quality performance.
Are these titanium plates compatible with MRI and CT scans?
Yes, the high-quality titanium material used does not interfere with MRI or CT examinations, allowing for safe post-operative imaging.
Can I use both locking and non-locking screws with these plates?
Absolutely. The unique design allows a single hole to accommodate both locking and non-locking screws, providing flexibility for clinical indications.
What is the advantage of the concave hole design?
The concave design allows the plate and screw to combine more closely with lower profiles, significantly reducing soft tissue discomfort.
What certifications do these medical implants hold?
The products are fully certified with CE and ISO13485, meeting international standards for Class III medical instruments.
Is technical support available after purchase?
Yes, we provide online technical support and a one-year warranty on our orthopedic implant products.
