1. Smart Oxygen Monitoring System with Colorful TFT LCD Display

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Certification

ISO13485, FSC

Group

Adults, Children and Newborns

LCD Display

Colorful TFT LCD Display

Purpose

Oxygen Breathing Monitoring

Item Name

Patient Monitor

HS Code

9019200000

Capacity

20000 sets/Month

Medical Supply Multi-Parameter TFT LCD Vital Sign Patient Monitor

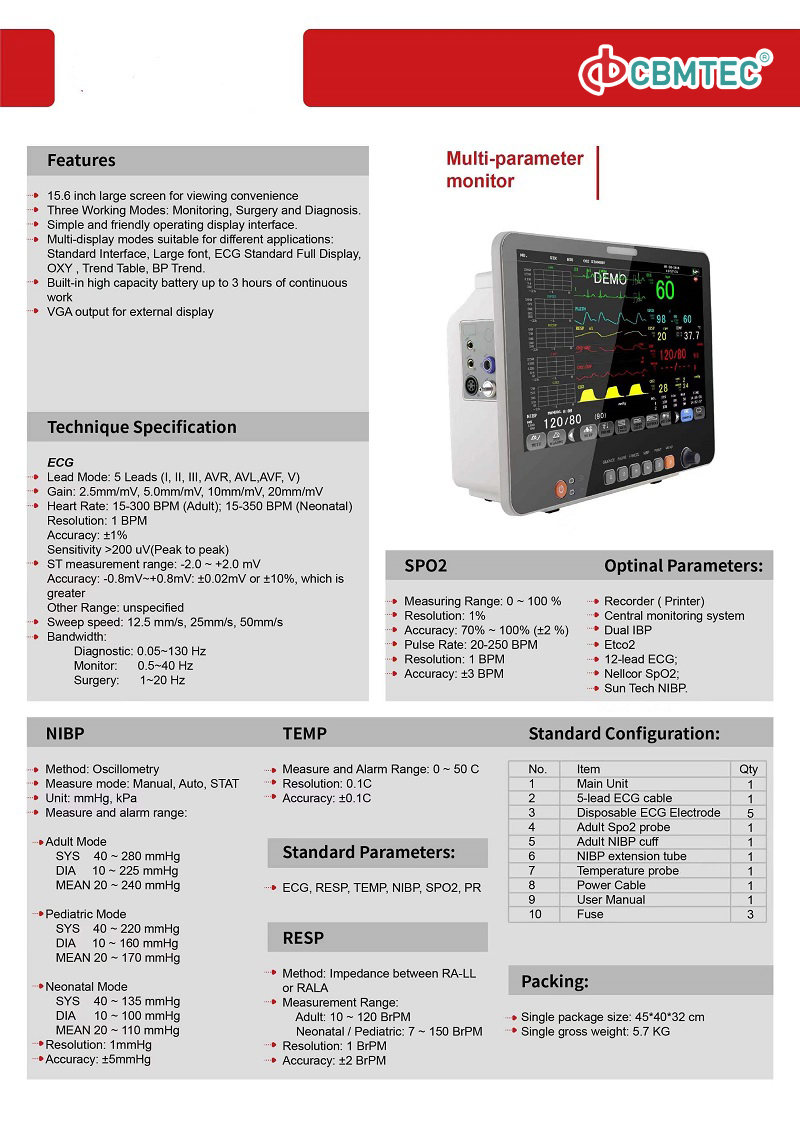

🔹 Specs of 12'' multi-parameter patient monitor:

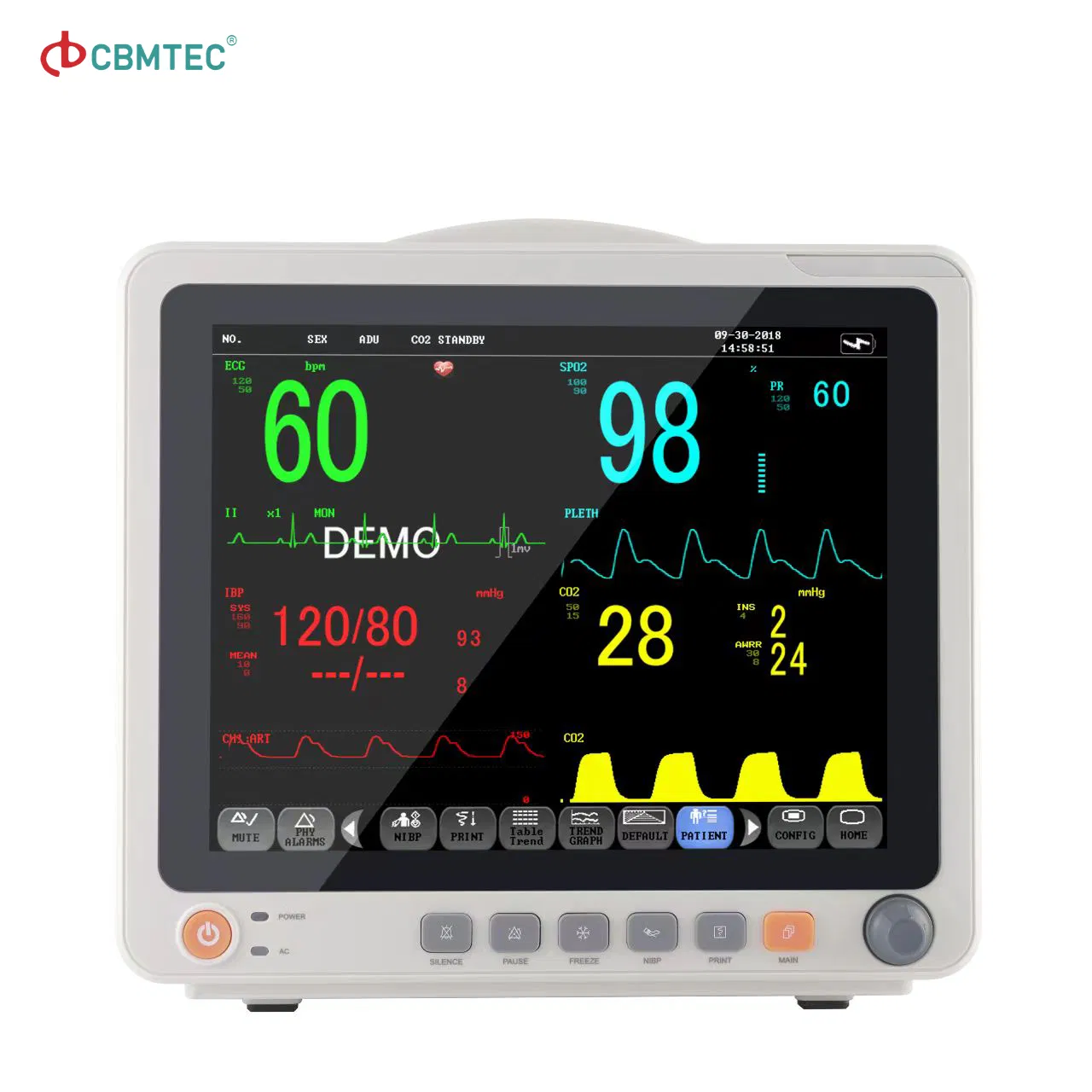

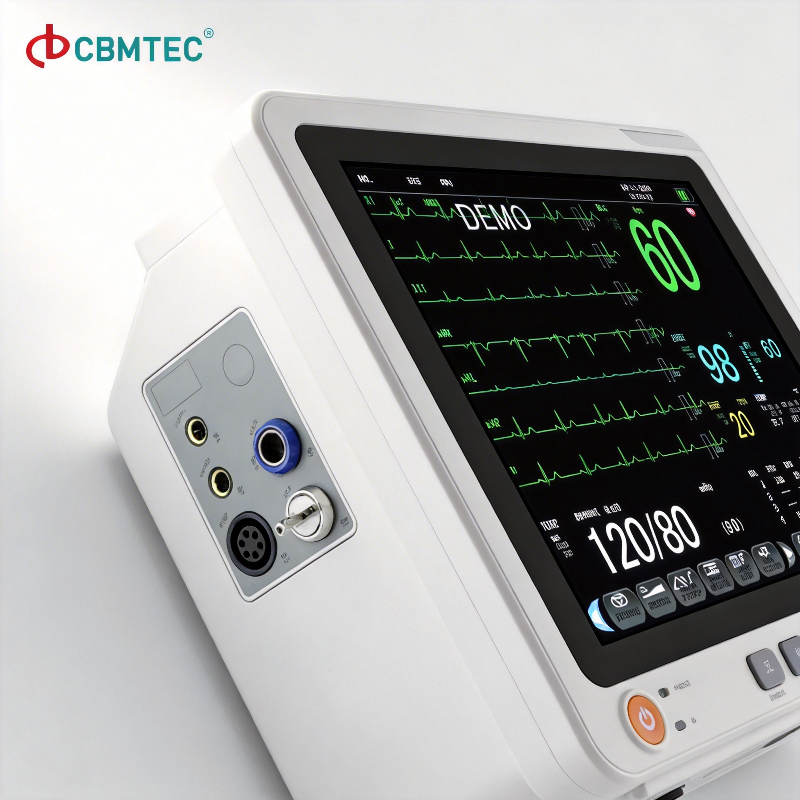

12.1-inch high brightness colorful TFT LCD display with big font screen options.
Seven-channel synchronous ECG display.
Built-in li-ion battery with up to 240 minutes standby time and AC/DC power conversion.

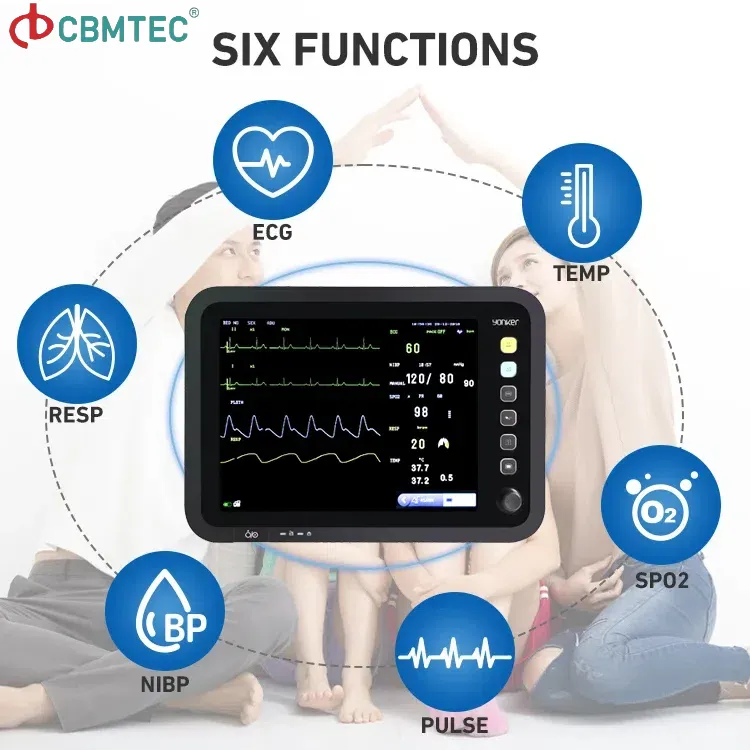

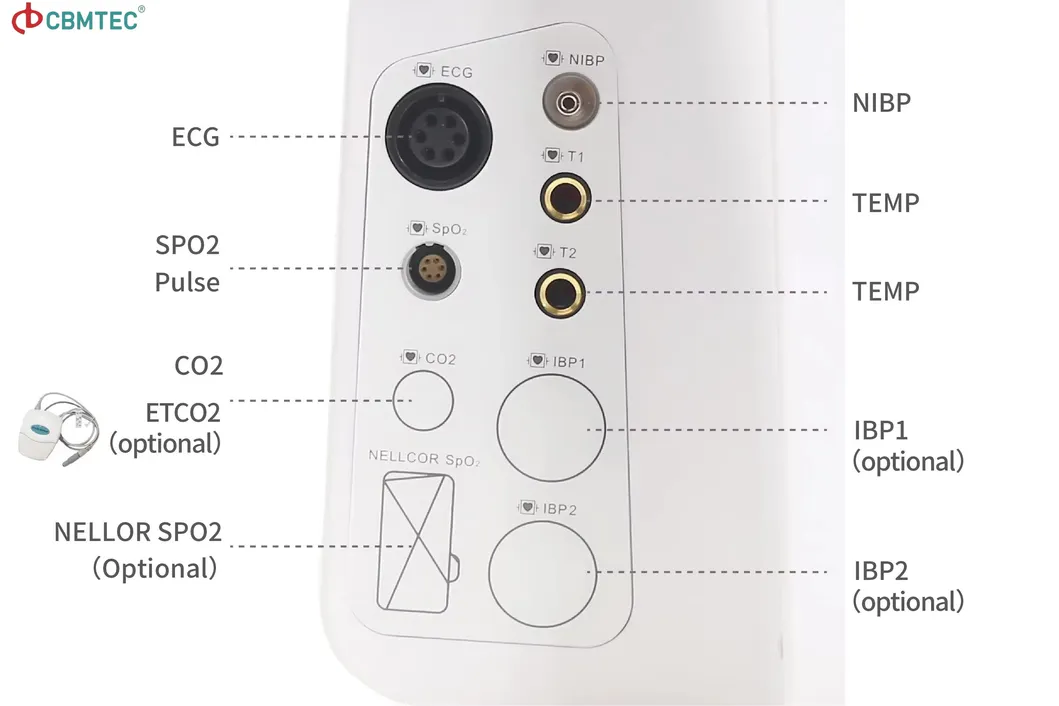

Standard parameters: ECG, HR/PR, SPO2, NIBP, RESP, TEMP.
Full digital SpO2 technology for excellent performance in low perfusion.

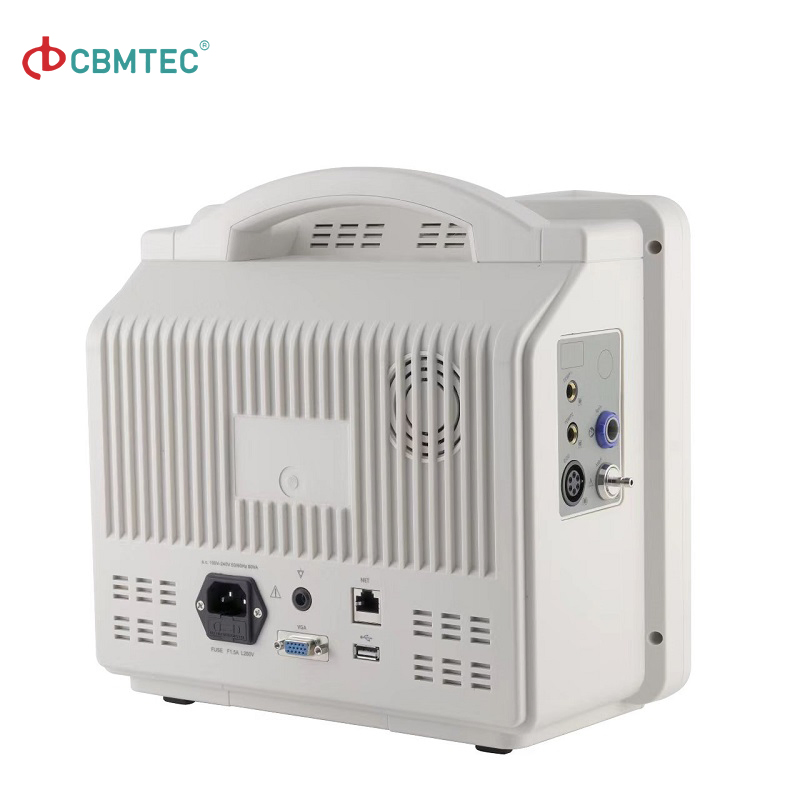

USB data export (PDF supported) and WIFI module compatibility.
NIBP dual over-pressure protection for enhanced patient safety.
Comprehensive 3-level alarm system (sound, light, and on-screen messages).
Large storage: 43,200 trend entries, 2,000 data points, and 200 alarm groups.
Advanced analysis: Pacemaker, ST segment, arrhythmia, and drug concentration measurement.
Supports 16 languages including English, Spanish, Portuguese, Russian, French, and German.

Parameter	Specifications	Parameter	Specifications
ECG	Lead mode: I, II, III, AVR, AVL, AVF, V1-6; Gain: ×0.25 to ×2; ST Detection: -2.0mV to +2.0mV; Response time: 1s.	NIBP	Technology: Oscillography; Mode: Manual/Auto; Range: 0-250 mmHg; Over-pressure protection for adults/children/newborns.
SPO2	Range: 0-100%; Accuracy: 1%; Pulse frequency: 20-250 times/min; Visual and audible alarms.	TEMP	Range: 20°C - 45°C; Resolution: 0.1%; Accuracy: ±0.1°C; Adjustable alarm limits.
RESP	Breathing frequency: 0-60 rpm; Accuracy: ±1rpm; Multiple gain options (×0.25 to ×2).	Printer	Optional dual channel thermal array data recorder; Real-time or event-triggered recording.
System	12" TFT LCD screen; Sealed maintenance-free lithium battery; IEC601-1 (GB9706.1) safety standard compliant.

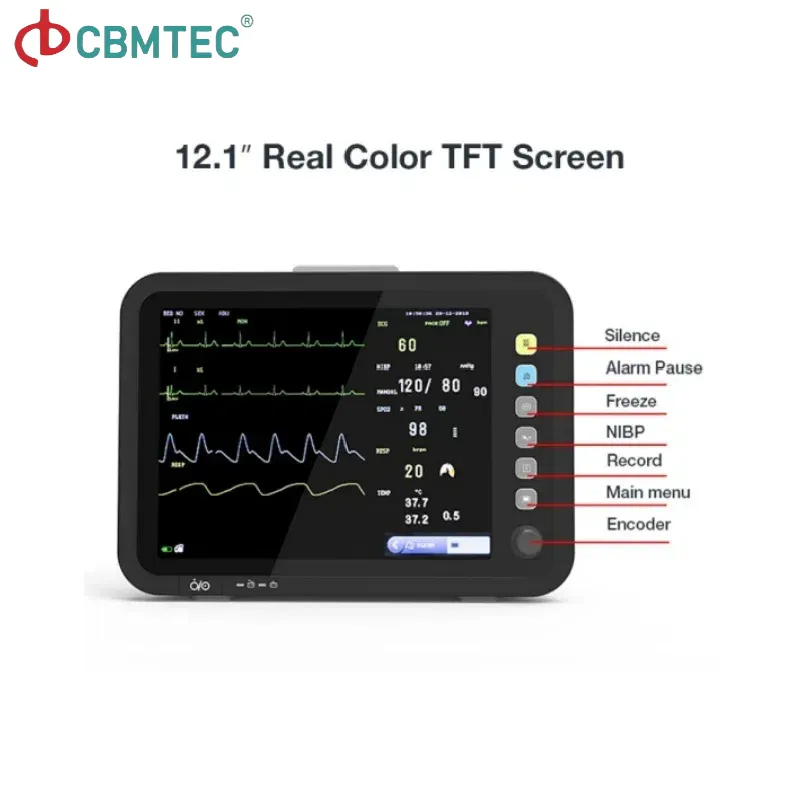

⭐ Simple and User-Friendly Operating Interface

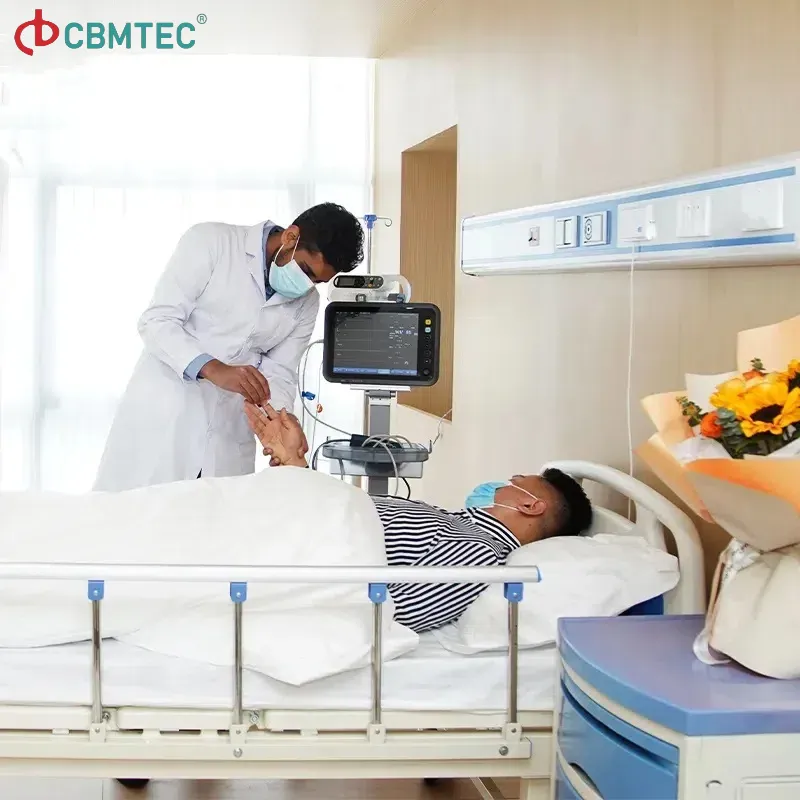

Internal large capacity battery for patient mobility.
Long-term waveform playback and monitoring data record browsing.
Anti-interference from high-frequency electric surgical equipment.
Full-synchronistic multi-channel ECG display.
7-day trend chart storage and 6000 seconds ECG review.

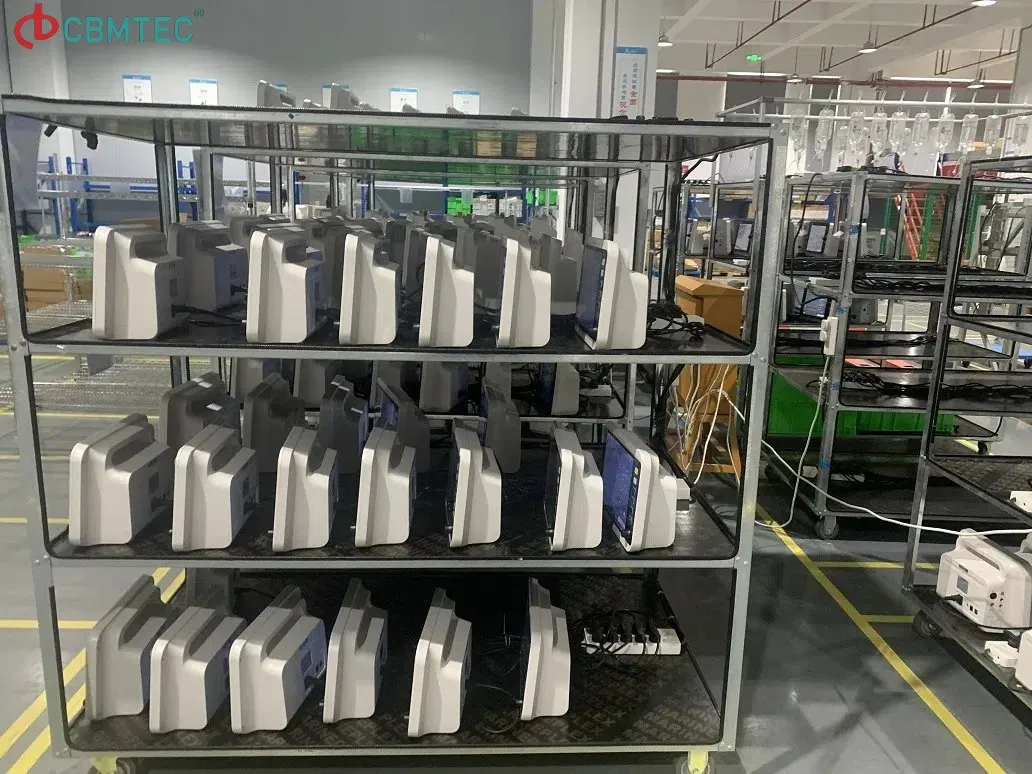

Manufacturing & Quality

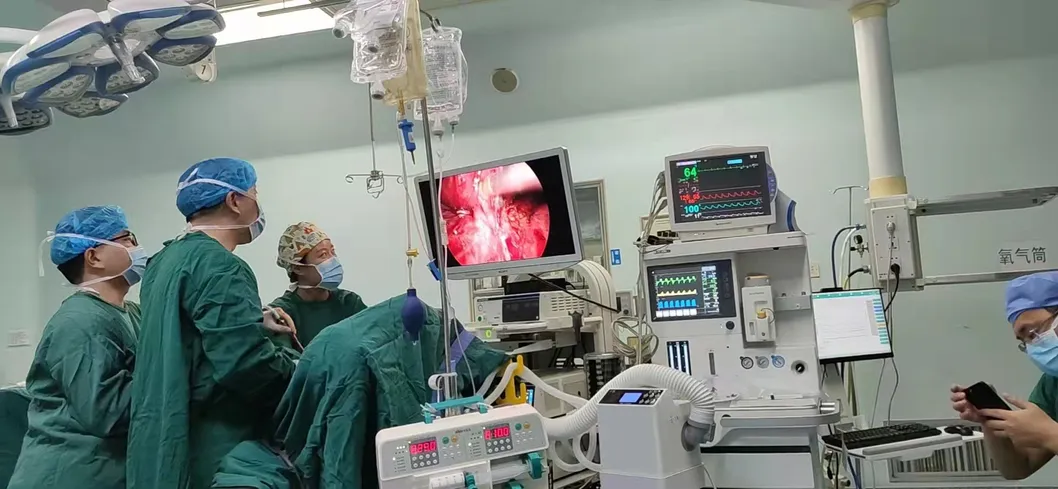

We are a professional manufacturer and supplier of medical respiratory and gas supply systems. Our expertise covers Gas Cylinder Regulators, Oxygen Flowmeters, Medical Oxygen Kits, and complete Hospital Central Oxygen System products. Our facility is equipped with professional punch machines and medical gas testing equipment to ensure every product meets the highest safety standards.

Our Advantages

Original Manufacturer: Professional equipment including punch and medical gas machines.
Large Capacity: Production capability exceeding 50,000 units per month.
Quality Control: ISO13485 management system with 100% factory testing.
Cost Efficiency: Competitive pricing achieved through professional scale economy.
Export Expertise: Over 15 years of international shipping and regulatory experience.

Frequently Asked Questions (FAQ)

What are the standard parameters monitored by this device?

The standard configuration includes monitoring for ECG, Heart Rate/Pulse Rate (HR/PR), SpO2, Non-Invasive Blood Pressure (NIBP), Respiration (RESP), and Temperature (TEMP).

Can this monitor be used for pediatric or neonatal patients?

Yes, the device is designed with specialized settings for adults, children, and newborns, including a wide-range heart rate measurement (15-350BP) specifically for neonates.

How long can the monitor operate on battery power?

The built-in high-capacity Li-ion battery supports up to 240 minutes of standby time, making it ideal for patient transfers and during power fluctuations.

Does the system support data export for clinical analysis?

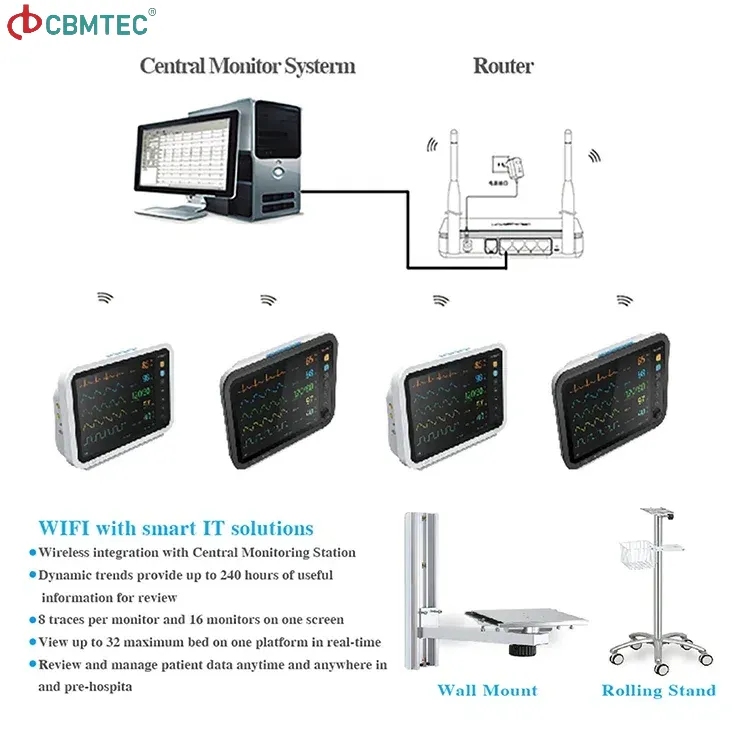

Yes, it features a USB interface that allows data export to computers in PDF format, and supports WIFI modules for wireless central monitoring systems.

Is the display readable in bright hospital environments?

The monitor uses a 12.1-inch high-brightness and high-resolution colorful TFT LCD display, ensuring all vital signs and waveforms are clearly visible.

What safety features are included for blood pressure monitoring?

The NIBP system includes dual over-pressure protection to ensure patient safety and measurement accuracy even in challenging clinical environments.
