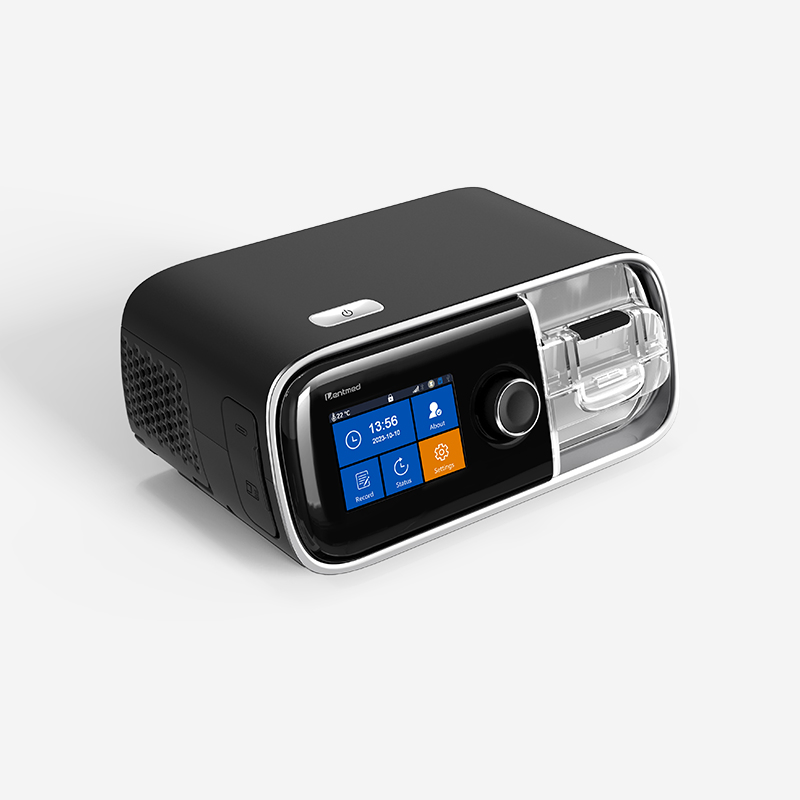

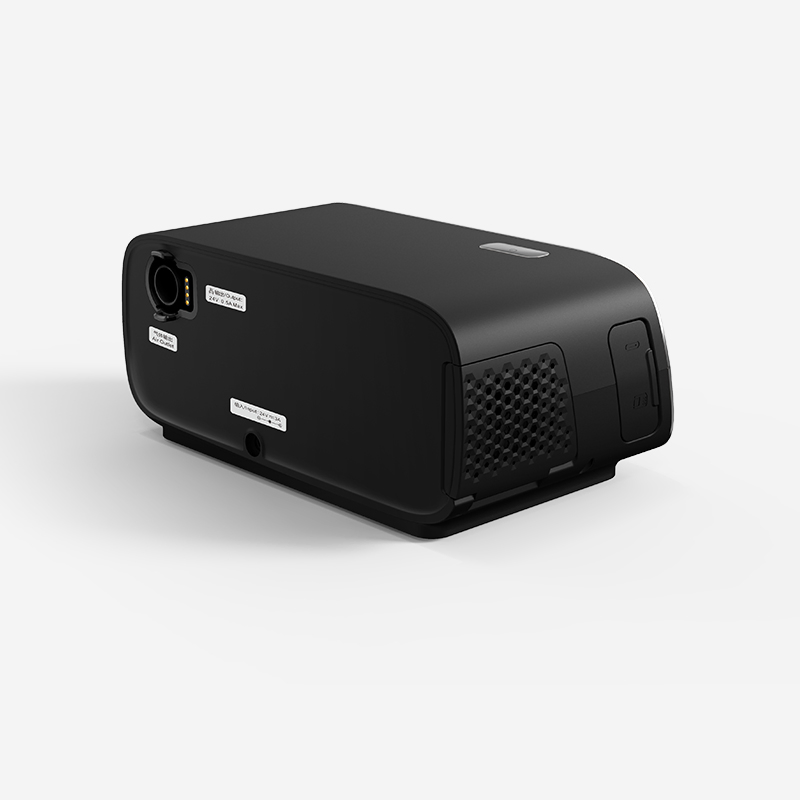

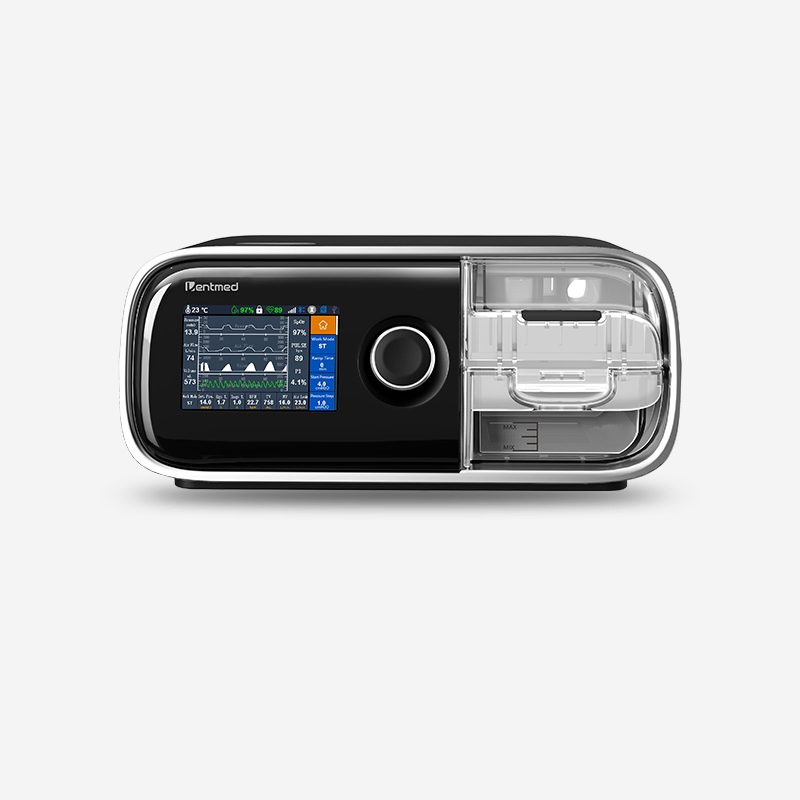

Ventmed Health Care Non Invasive Ventilation, Sleep Apnea Bipap Breathing Therapy Device

1 / 5

Ventmed Health Care Non Invasive Ventilation, Sleep Apnea Bipap Breathing Therapy Device

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

DF-25W-HM

Certification

CE, ISO13485

LCD Display

With LCD Display

Group

Adult

Warranty

1 Years

Mode

CPAP, Auto, Auto S, S, T, St

Application

Hospital or Home

Power

AC 100-240V~ 2.1A, 50-60Hz

Size

266.8*172.5*118.5mm

Screen

3.5 Inch TFT

Pressure Range

4-25CMH2o, Auto Adjust

Feature

Compact, Light and Convenient

Data Storage

TF Card

Work for

Anti-Snoring, CSA and Osa Patients

Origin

China

HS Code

9019200000

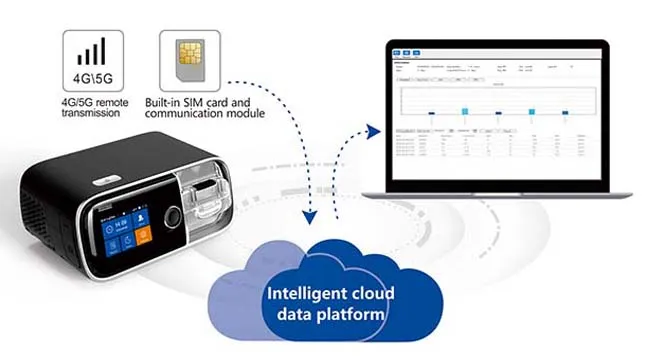

🚀 Smarter Operation

Built-in IOT cards:

Upload usage data to the cloud platform in real time.
Interpret usage data through the background intelligent AI diagnosis system.

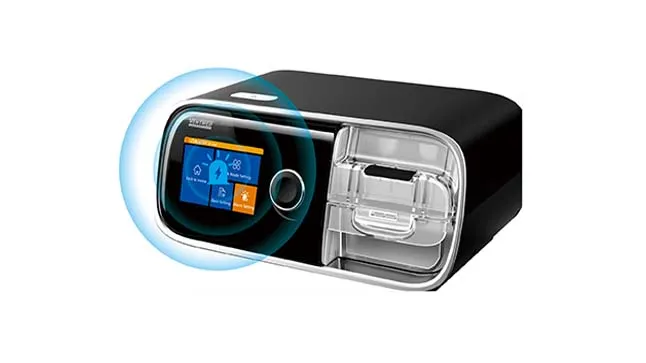

🛡️ Safer Protection

Smart alarm system ensures safety during use:

Mask falling off, apnea, and abnormal pressure alerts.
Multiple alarms for tubing abnormalities.
Guaranteed patient treatment effects.

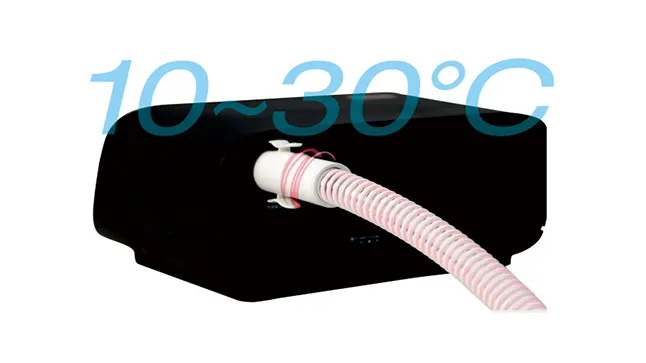

☁️ More Comfortable

Heated breathing tube enhances user experience:

Tubing surround heating technology for even heat distribution.
Built-in temperature sensor for precise adjustment at the mask end.
Temperature settings from 10-30ºC optional.

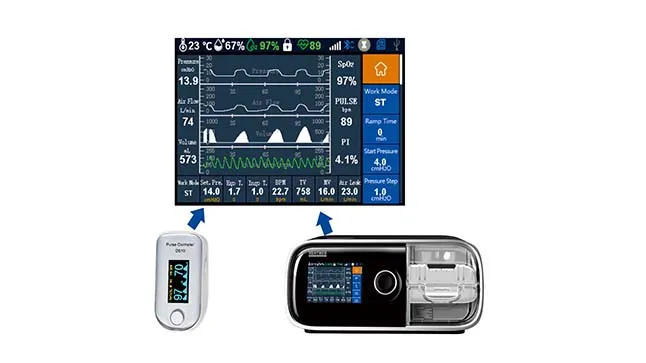

📊 More Capable

Advanced connectivity options:

Bluetooth connection to pulse oximeter.
Pulse and blood gas data viewable directly on the ventilator interface.

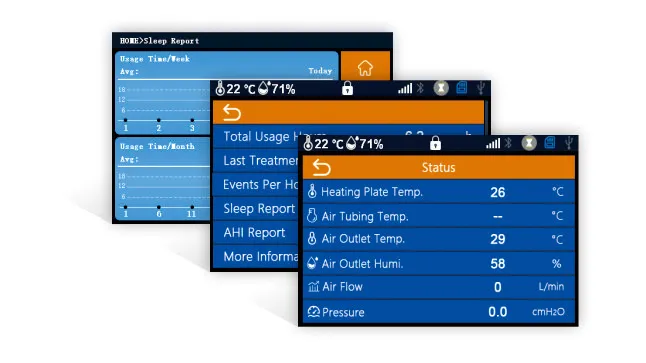

📱 More Convenient

Intuitive data display:

No need to connect to a computer for record viewing.
AHI reports, sleep records, and respiratory event counts viewable on screen.

Product Description

The Respiratory system is an Auto CPAP device designed for the treatment of adult Obstructive Sleep Apnea (OSA), Hypopnea, and Snoring.

Key Features

20hr+ real-time data storage
1 year+ usage records saved
Airflow and pressure wave display
TF card data communication
EPR (Expiratory Pressure Relief)
Auto-Leak Compensation
Auto-Altitude compensation
Power failure alarm
Independent airflow channel
3.5" Huge TFT Color Screen
Parameters lock function
Contemporary and stylish design

Packing List

1. Host Device with Integrated Humidifier

2. Full Face Mask or Nasal Mask (Optional)

3. 5 Pieces of Filter Cotton

4. Air Tubing

5. Water Tub

6. TF Card

7. Measuring Cup

8. Power Supply Unit

9. Carry Package

10. User Manual

Technical Specifications

Product Model	DF-25W-HM
Work mode	CPAP, AUTO, Auto S, S, T, ST
Pressure Range	4cmH2O - 25cmH2O
Tubing heating	Yes (10ºC-30ºC adjustable)
Mobile network	Yes (Cloud platform compatible)
Ramp time	0-60min
Noise	<29dB (under 10cmH20 pressure)
Backup rate	5bpm-60bpm
Target tidal volume	200ml~1200ml
Humidifier	Level 1-5 adjustable
Weight	1.7 KGS
Dimensions	266.8172.5118.5mm

Product Gallery

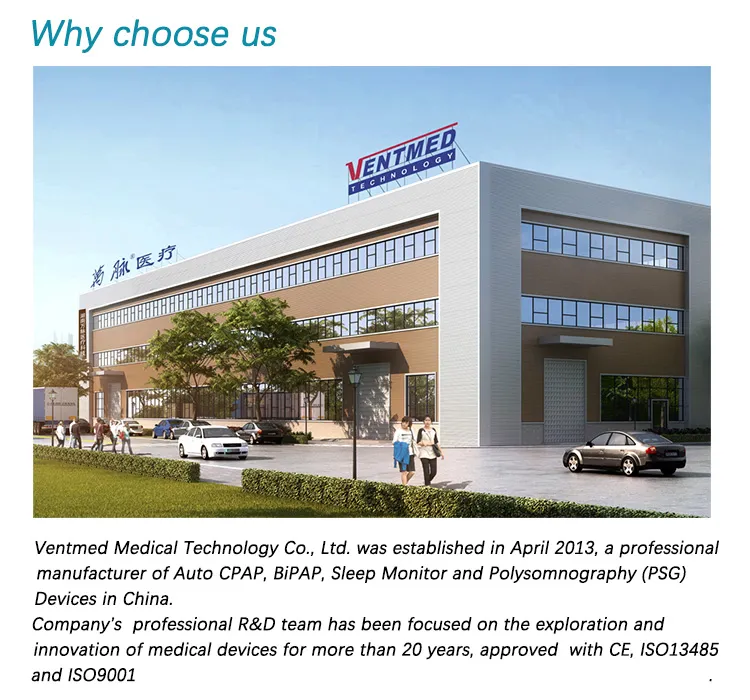

Why Choose This Solution

Stable Quality: Developed with high precision 3D sensors for improved comfort and data accuracy.
Advanced Monitoring: Cloud platform support for real-time monitoring by healthcare providers.
Comprehensive Support: 2 years warranty and long-time maintenance service.
OEM/ODM Services: Professional development team with over 15 years of innovation experience.

Frequently Asked Questions

Q: What conditions is the DF-25W-HM designed to treat? A: It is specifically designed for treating adult Obstructive Sleep Apnea (OSA), Hypopnea, and chronic snoring.

Q: Can I view my sleep data without a computer? A: Yes, the device features a 3.5-inch color screen that allows you to view AHI reports and sleep records directly on the interface.

Q: How does the heated tubing benefit the user? A: The heated tube uses surround heating technology to prevent condensation and maintain a comfortable air temperature (adjustable between 10-30°C).

Q: Does the device include safety alarms? A: Yes, it includes smart alarms for mask fall-off, apnea events, abnormal pressure, and tubing issues to ensure therapy effectiveness.

Q: Is this device suitable for travel? A: Yes, it is compact and lightweight (1.7kg) and comes with a dedicated carry package for easy transport.

Q: What is the EPR function? A: EPR stands for Expiratory Pressure Relief, which reduces pressure during exhalation to make breathing feel more natural and comfortable.
