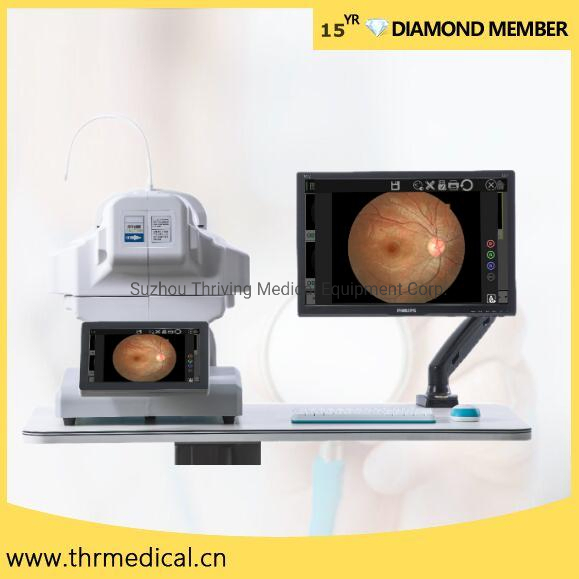

Manufacturer Medical Non-Mydriatic Automatic Eye Fundus Camera Ophthalmic Equipment

Customization:	Available
Classification:	Ophthalmic Equipment
Type:	Fundus Camera

Basic Info

Model NO.THR-FC3100

CertificationCE

GroupHuman

Working Distance35mm

Image Resolution18 Mega Pixels

Power Supply100-240V 50/60Hz

Completion TimeWithin 10 Seconds

Minimum Pupil Size3.3mm

Product Description

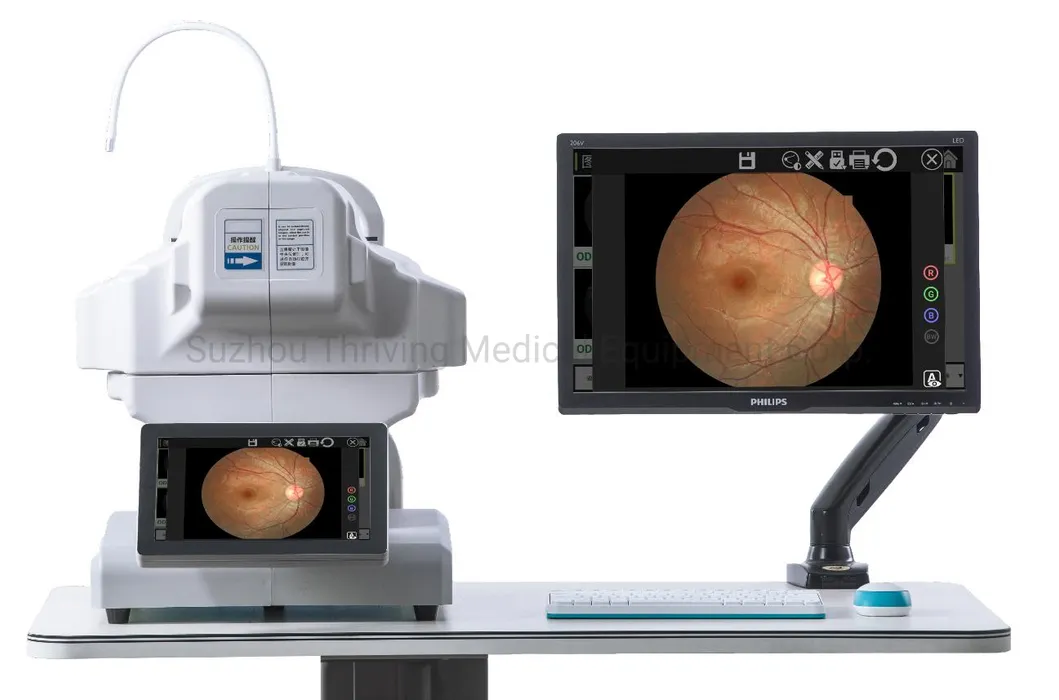

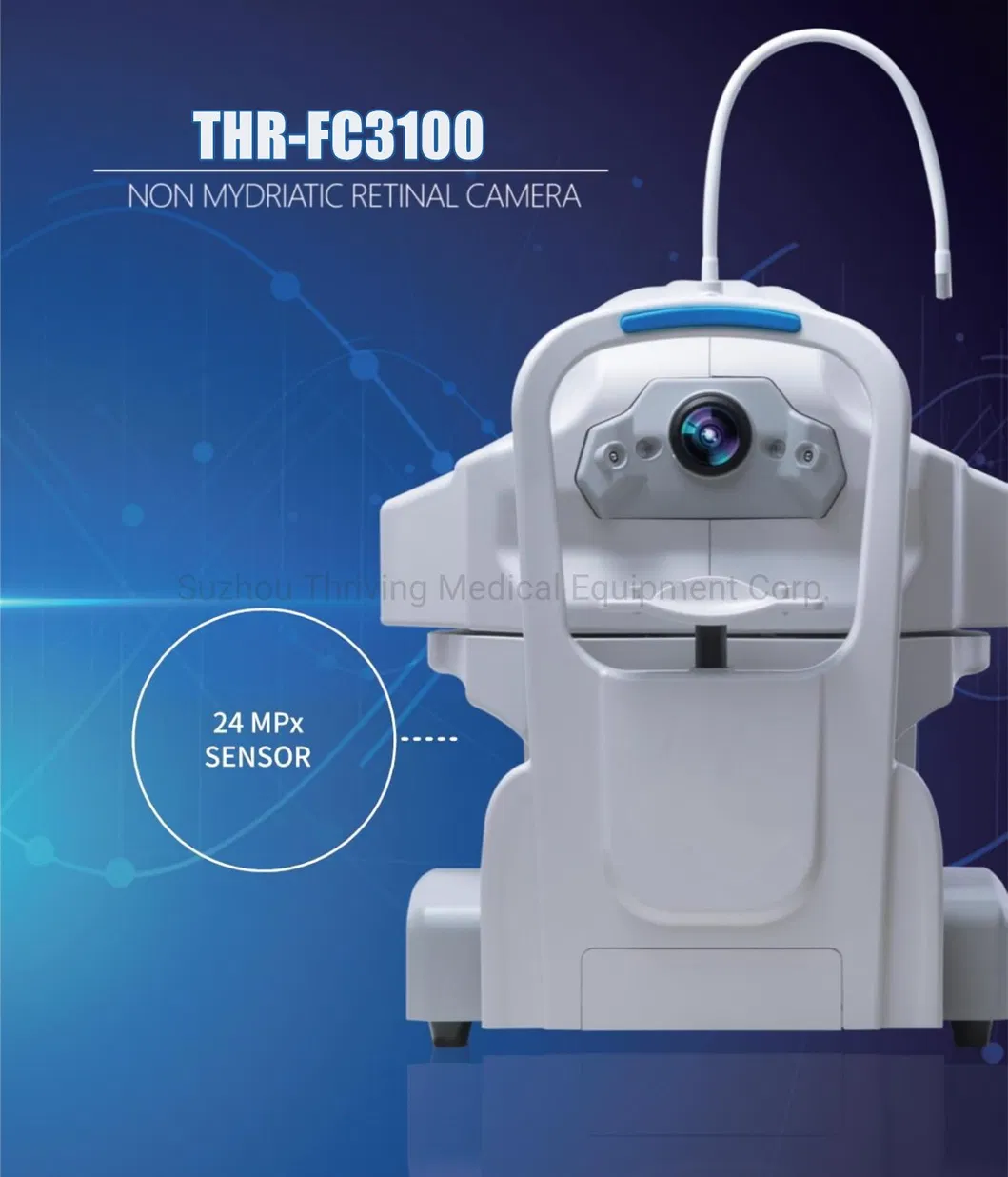

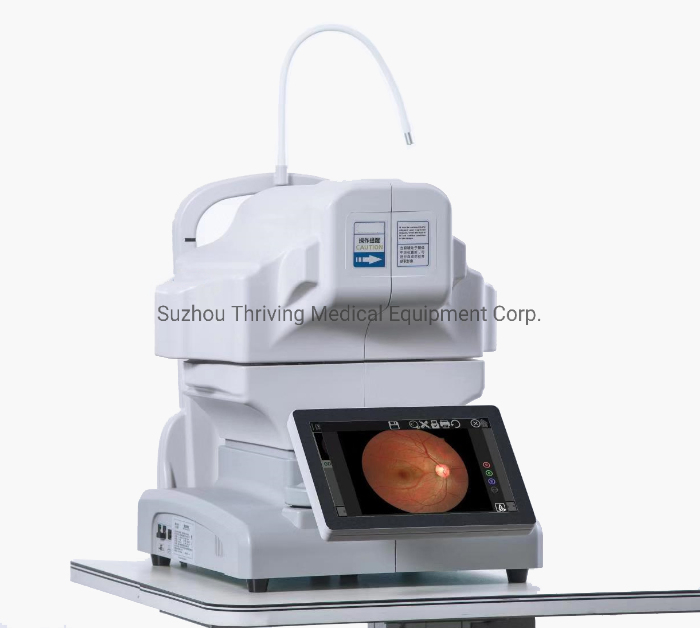

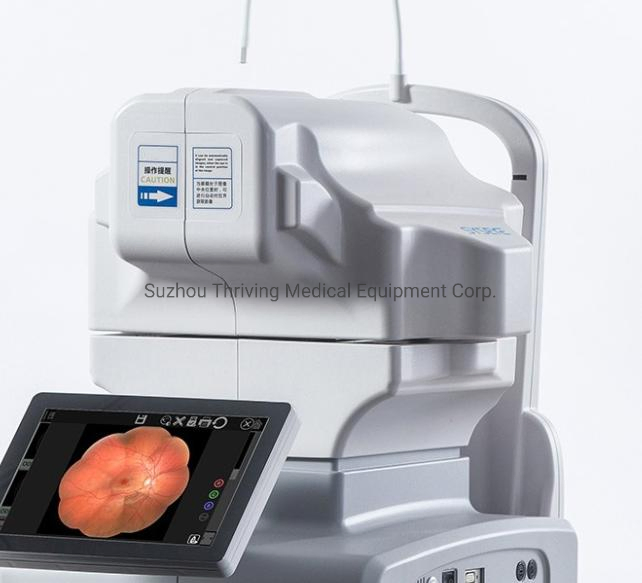

THR-FC3100 is an international first-class automatic fundus imaging system.

Through dual camera imaging, image control, and feature identification, it realizes XYZ three-dimensional automatic positioning. By utilizing CCD imaging feedback, the system meters exposure light to determine intensity automatically. It controls the focus stepper to adjust definition based on resolution, ensuring clear and accurate fundus images.

Key Features

🔘One Key Touch: Automatic binocular and monocular photography.

📷Dual Camera System: Accurate and fast focusing positioning.

👁️Non-mydriatic: Auto focus and auto exposure without pupil dilation.

🖥️10.1-inch TFT Screen: Simple touch interface with clear instructions.

⚡Intelligent Operation: Fast, simple, and fully automatic workflow.

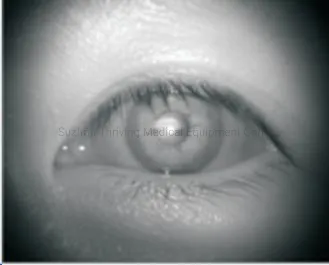

🔍High Resolution: 3.3mm small pupil camera capability.

Technical Specifications

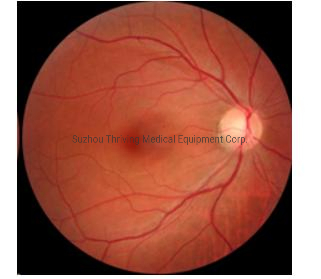

Acquisition Modes	Non-mydriatic / Color Photography / Anterior Segment / No Red Light / Fluorescein Angiography (Optional)
Field of View	50 Degrees
Minimum Pupil Size	≥3.3mm
Focus & Exposure	Auto / Manual
Image Resolution	18 Megapixels
Image Acquisition	Within 10 Seconds
Working Distance	35mm
Diopter Compensation	±25D
DICOM 3.0	Supported (Yes)
Autofocus Light	Infrared LED
Weight	26.5kg

Related Equipment

Frequently Asked Questions

❓How fast can the system acquire images?

The THR-FC3100 can complete image acquisition within 10 seconds, ensuring a fast and efficient diagnostic process.

❓Is pupil dilation required for this camera?

No, this is a non-mydriatic system. It is capable of capturing clear images even with a small pupil size of ≥3.3mm.

❓What kind of image resolution does the camera offer?

The system provides ultra-high resolution imaging at 18 megapixels for precise medical analysis.

❓Does the equipment support hospital data integration?

Yes, the system supports DICOM 3.0, allowing for seamless integration with medical imaging management software.

❓What are the main automation features?

The camera features one-key touch operation, XYZ three-dimensional automatic positioning, auto-focus, and auto-exposure.

❓What type of fixation does the system use?

The device supports both external fixation and internal fixation modes to accommodate different patient needs.
