Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
1 / 5
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment
Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment

Us101 Hospital Portable Full Digital Ophthalmic a/B Ultrasound Scanner Biometer Equipment

Customization: Available
Certification: CE, ISO13485
Scale: Medium
Send Inquiry

Product Description

Basic Specifications

Model NO.:US101
Display:10.4 Inch
Resolution:0.01mm
Accuracy:±0.05mm
Gain Adjustable:0-120dB
Measurements:Acd, Lens, Vitreous, and Axl
Certification:CE, ISO
HS Code:94029000

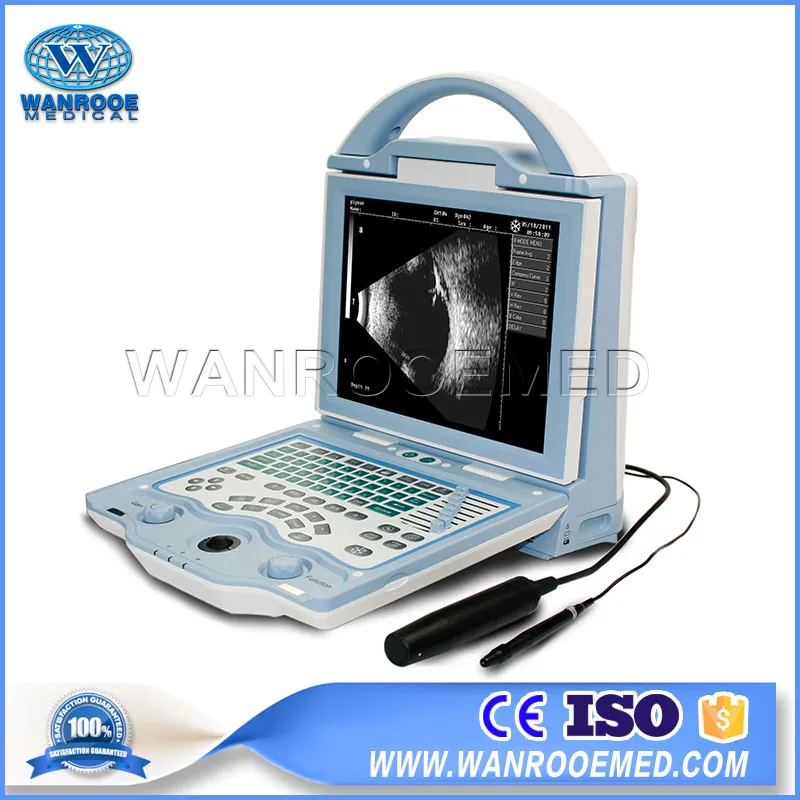

Full Digital Ophthalmic Ultrasound Scanner

General Parameters

US101 Portable Full Digital Ophthalmic A/B Ultrasound Scanner Biometer Equipment

  • Advanced ARM9 Embedded Control Systems & FPGA signal processing.
  • 10" high resolution display monitor for clear and exquisite images.
  • Dual probe sockets: A mode (10MHz with fixation light) and B mode (10MHz transducer).
  • Display Modes: B, B/B, 4B, B/A, A; Supports single-point and five-point measurements.
  • Intelligent TGC adjustment (8 segments) and internal 4GB storage for mass images and reports.

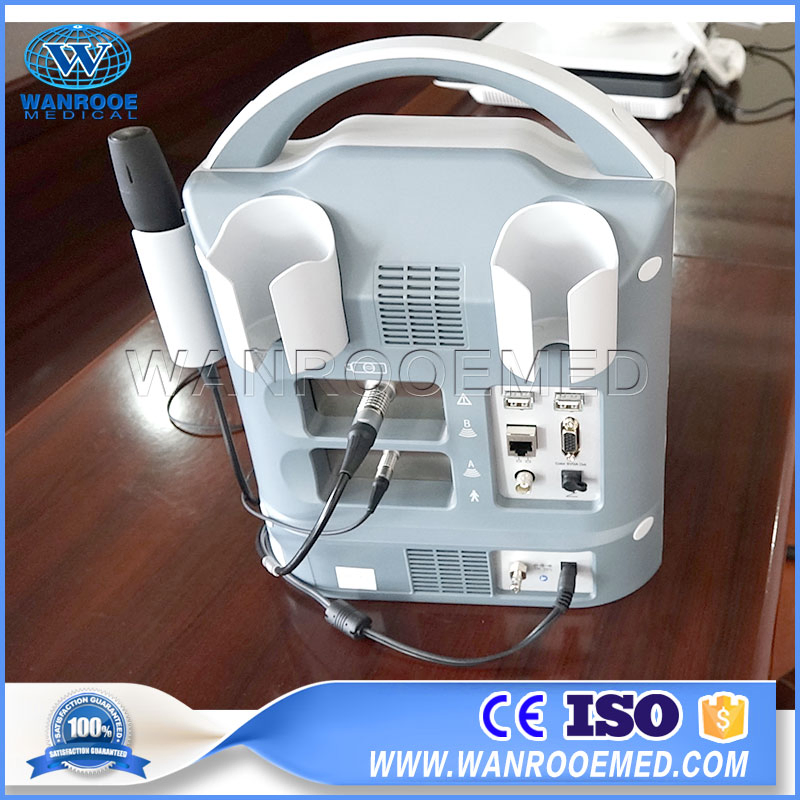

  • Connectivity: Dual USB ports, DICOM 3.0 network port, and PAL/NTSC TV output.

Technical Performance

A-Scan Parameters:
Range: 0-36mm (single), 0-72mm (five-point)
Accuracy: ±0.05mm
Eye Modes: Normal, Aphakia, Dense Cataract, IOL eyes
Formulas: SRK-II, SRT-T, BINKHOST, HOLLADAY, HOFFER-Q, HAIGIS
B-Scan Parameters:
Scan Mode: Motor-powered Sector Scan
Angle: 53° | Depth: 0-88mm
Gray Scale: 256 levels
Cine Loop: 256 frames

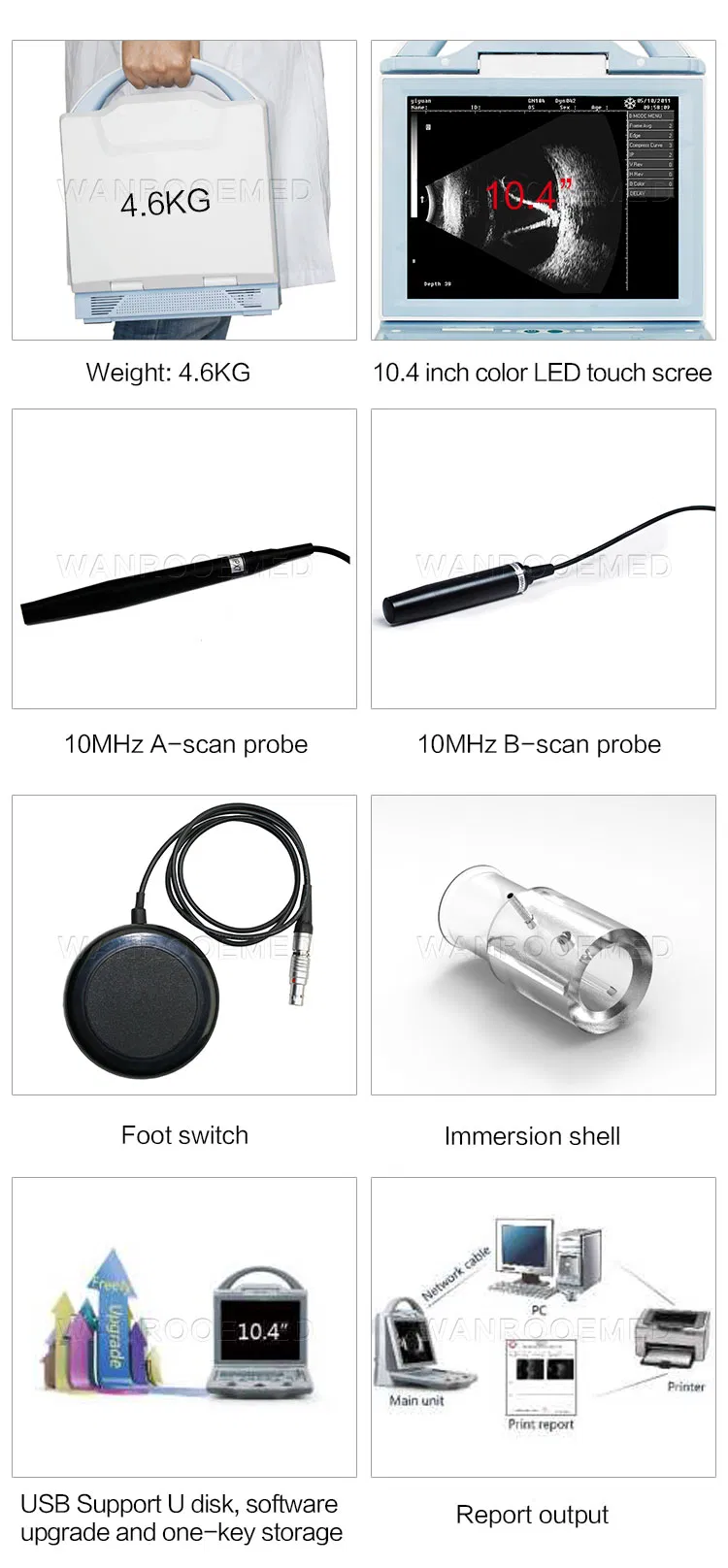

Ophthalmic Ultrasound Scanner Details

System Configuration

Standard:
Main Unit, 10MHz B-probe, 10MHz A-probe.
Optional:
Trolley, Foot switch, Battery, Immersion Shell, Video Recorder.

Frequently Asked Questions

What are the primary measurement functions of the US101?
The US101 is designed for comprehensive ophthalmic exams, measuring ACD, LENS, AXL, Vitreous Length, and corneal thickness (in immersion mode).
Does this device support both contact and immersion modes?
Yes, for A-scan measurements, it supports both Contact and Immersion methods, with both automatic and manual modes available.
Can I export patient reports and images?
Absolutely. The device features two USB ports for flash drives and a DICOM 3.0 port for easy network transmission and direct printing.
What IOL formulas are included in the system?
It includes several industry-standard formulas: SRK-II, SRT-T, BINKHOST, HOLLADAY, HOFFER-Q, and HAIGIS.
Is the display portable and easy to read?
Yes, it features a 10.4-inch high-resolution monitor. The entire unit weighs 8kg, making it portable for hospital environments.
What is the scanning depth for B-mode?
The B-scan provides a display depth of 0 to 88mm, including a delayed depth feature for more focused observation.
