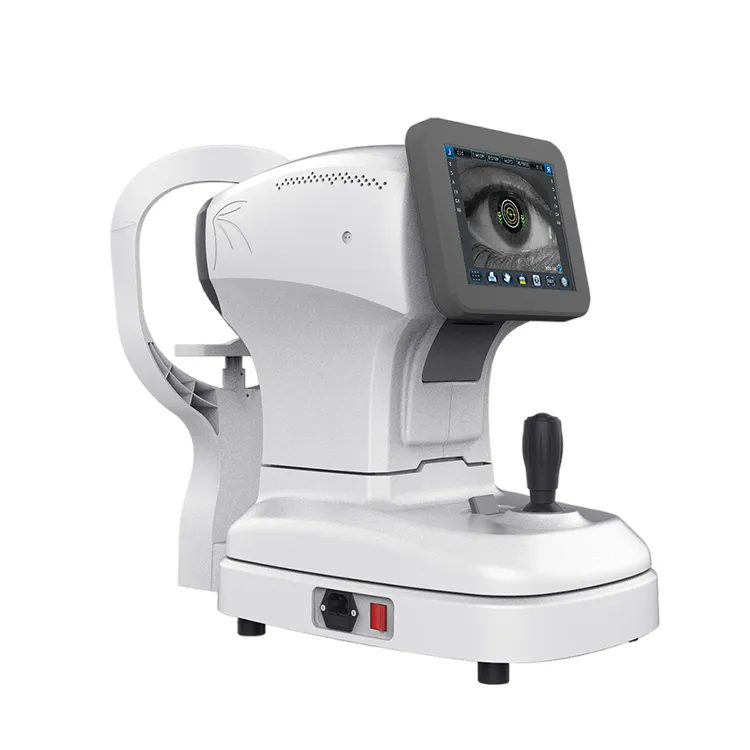

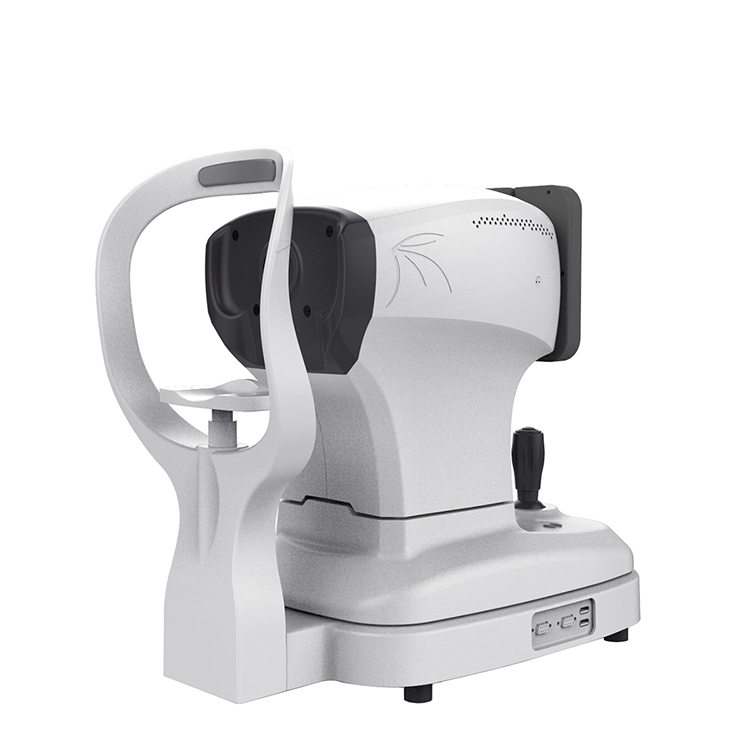

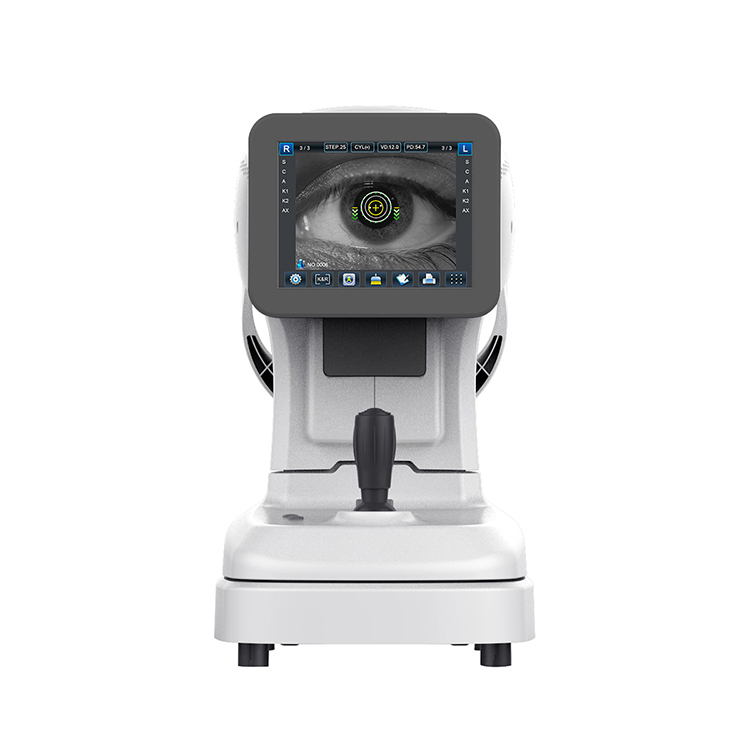

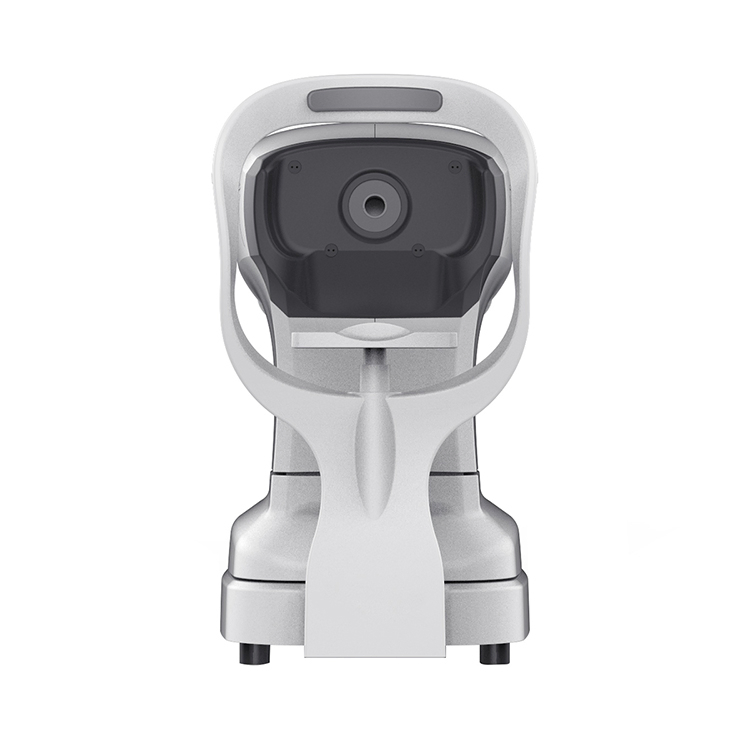

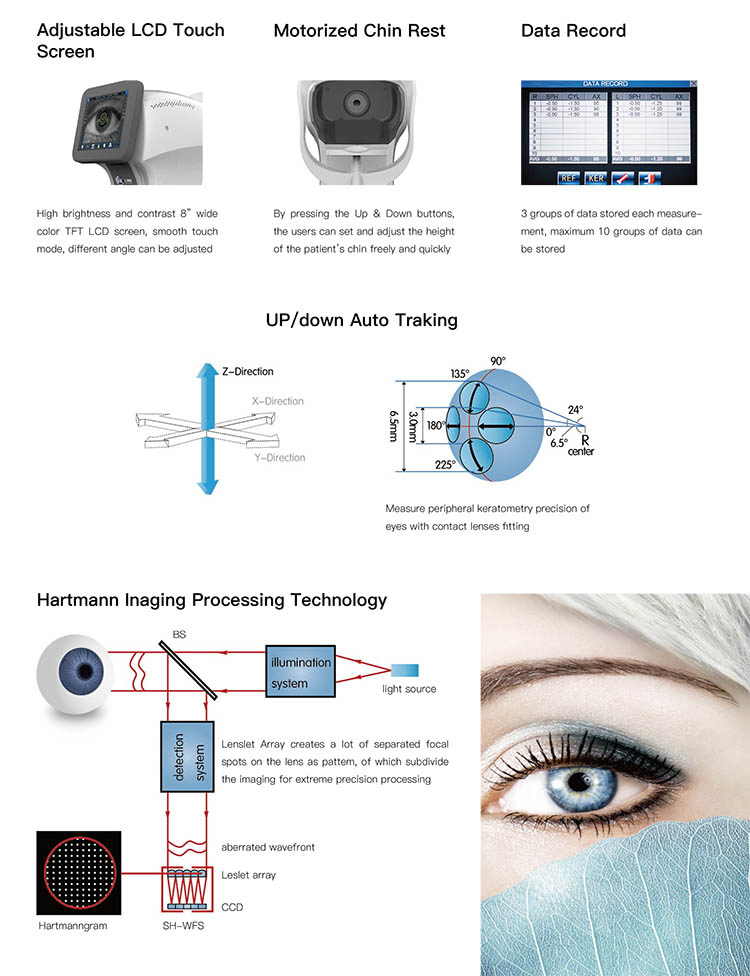

The Auto Refracto-Keratometer is a high-precision instrument for objective measurement of patient's eyes, featuring a unique internal optical system and accurate imaging analysis utilizing Hartman technology. It is primarily used to measure diopter, including sphere power, cylinder power, optical axis, pupil distance, and corneal curvature, providing essential reference data for eye treatment and eyewear selection.
Measurement results can be displayed on the integrated screen, printed via the thermal printer, or transferred to an auto phoroptor via the RS232 interface.
| Corneal apex distance | 0.0, 12.0, 13.75, 15.0 |
| Spherical mirror degree | -20.00D ~ + 20.00D (VD = 12mm) |
| Cylindrical power | 0.00D ~ + 10.00D |
| Axis position | 10 ~ 180 ° (1 ° unit) |
| Interpupillary distance | 10 ~ 86mm |
| Minimum pupil diameter | 2.0mm |
| Measurement time | <0.5 seconds |
| Cornea curvature radius | 5.0 ~ 10.0mm |
| Display | 8-inch TFT touch screen |
| Printer | 57mm thermal printer |
| Net weight | 22 kg |
Ready stock dispatched within 24 hours. OEM orders typically processed within 2-7 working days with one-to-one safety inspection.
Comprehensive video tutorials for installation, operation, and maintenance. Real-time online video training available.
12-60 months warranty with after-sales service response within 8 hours.
