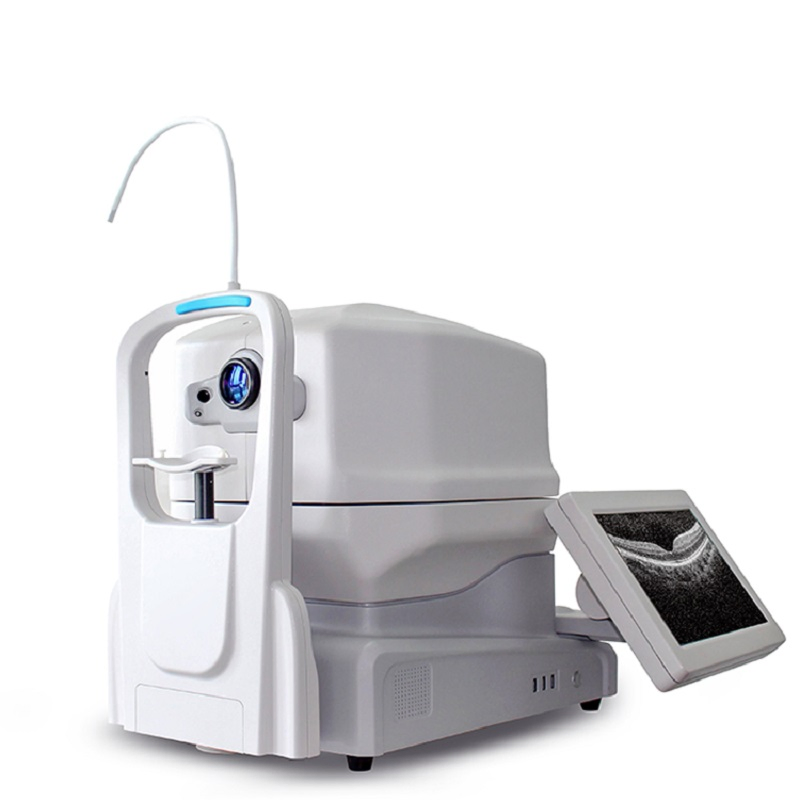

Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
1 / 5
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic
Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic

Ysoct500A High-End Optical Coherence Tomography Oct Machine Medical Equipment Ophthalmic

Customization: Available
Classification: Refractometer
Type: Auto Refractometer Optical Instrument
Send Inquiry

Product Description

📋

Basic Information

Model NO.
YSOCT500A
Certification
CE, ISO13485, Auto Refractometer
Group
All
Methodology
Spectral Domain OCT
Scan Modes
3D, Raster, Circle
Focus Adjustment
-15D to +15D
OCT Light Source
840nm SLD
Operation
13.3'' Touch Screen, Optional External Mouse or Keyboard
Power Supply
100-240V, 50/60Hz
Dimensions
497*395*490mm
Weight
34kg
Transport Package
Standard Export Wooden Case
Origin
China
Production Capacity
100set/Month
🔬

Product Description

High-End Optical Coherence Tomography (OCT) Machine Medical Equipment Ophthalmic

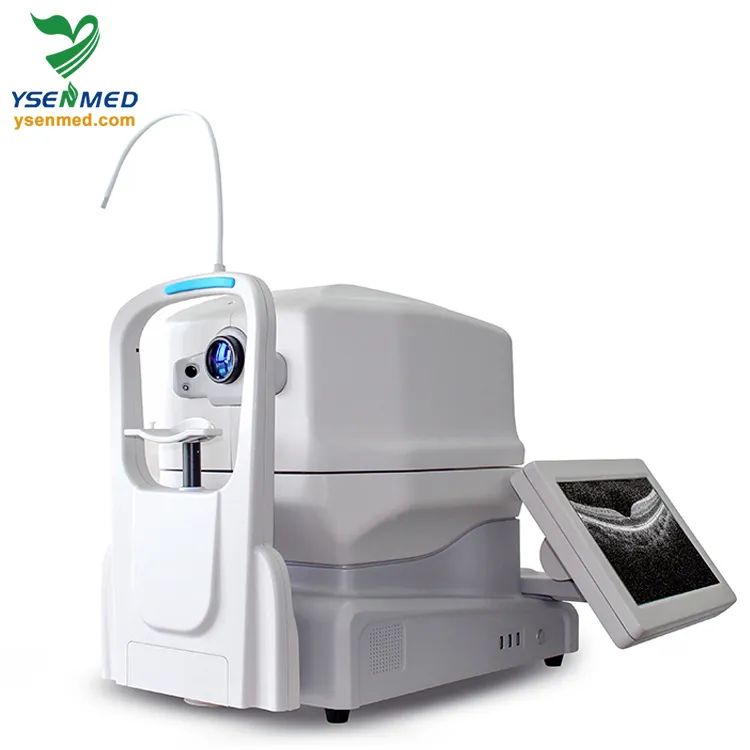

OCT Machine

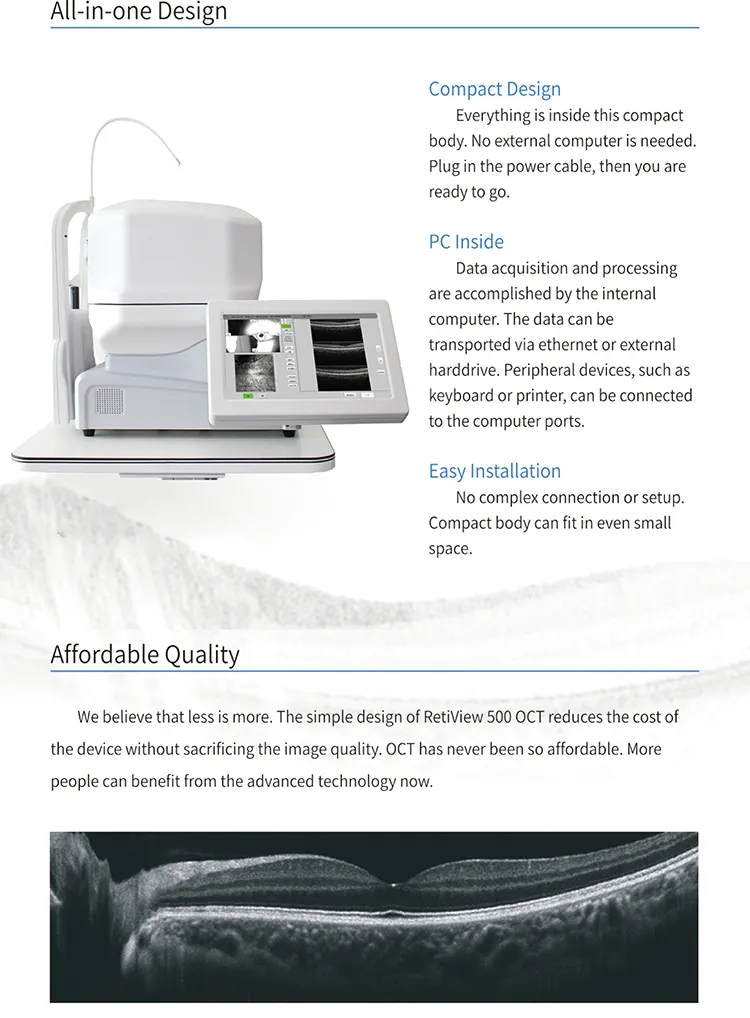

Everything is inside this compact body.

  • No external computer is needed - simply plug in the power cable.
  • Data acquisition and processing are accomplished by the internal computer.
  • Easy Installation: No complex connection or setup.
  • Compact design fits perfectly in small clinical spaces.
  • Delivers high-quality imaging for precise diagnostics.

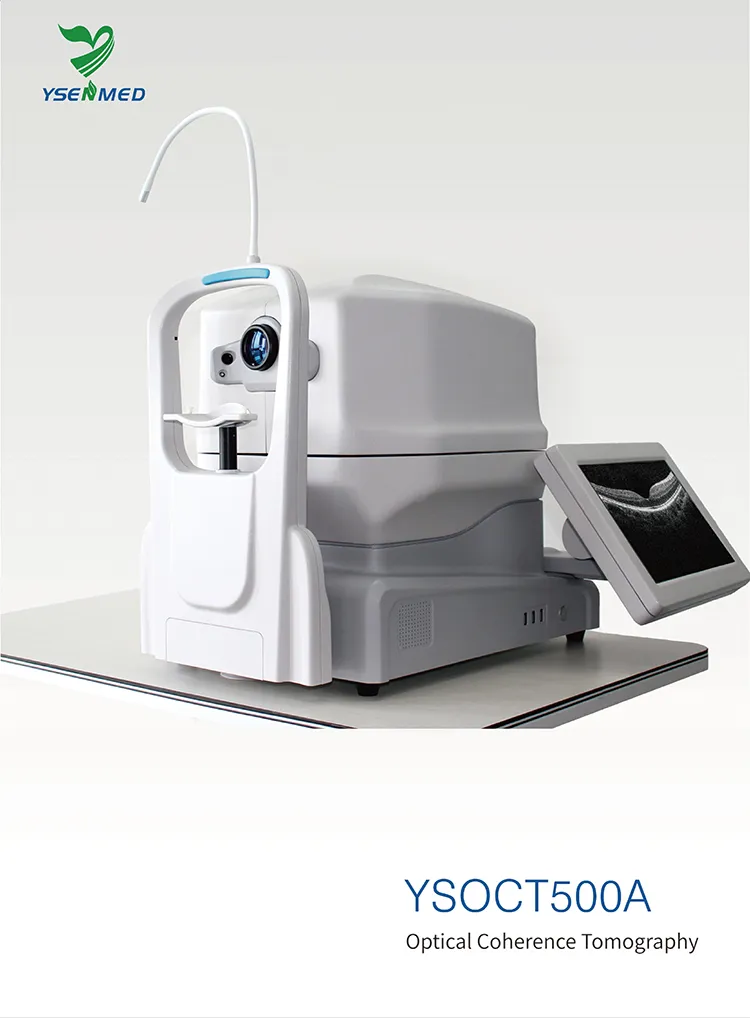

Scan Result 1
Scan Result 2

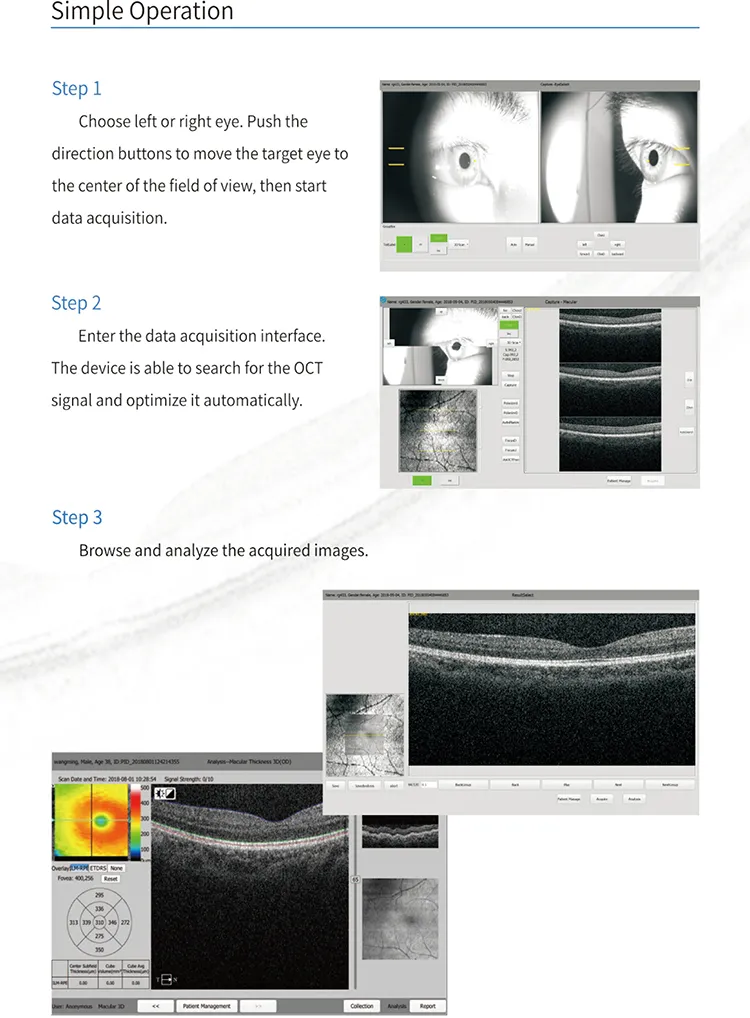

Scan Result 3

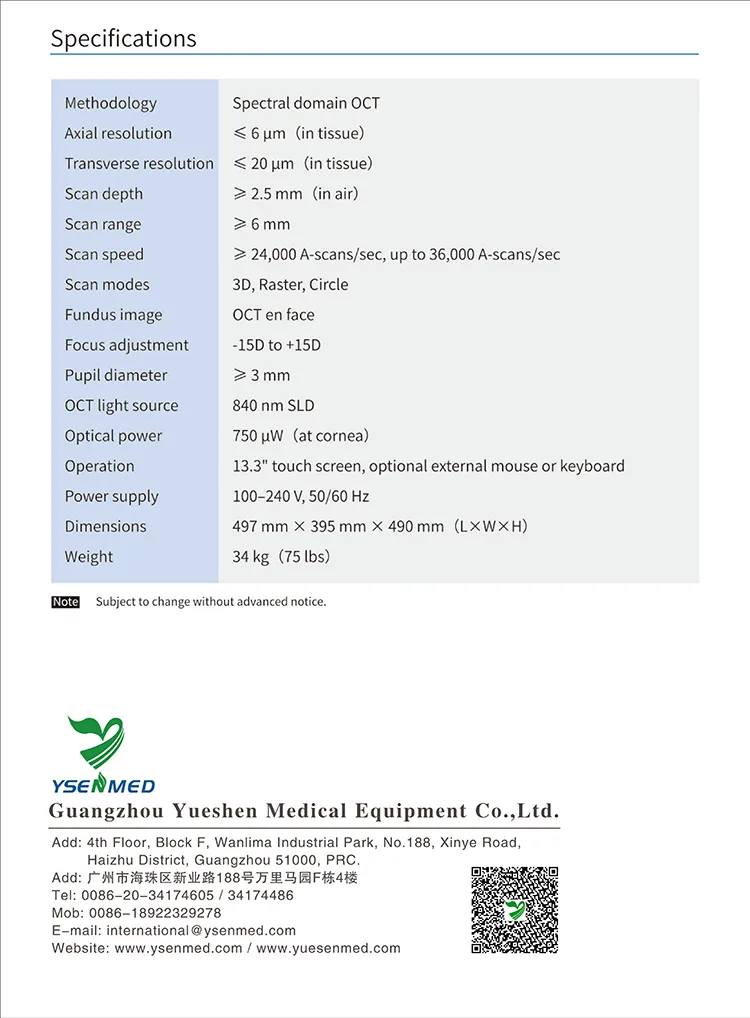

Scan Analysis
System Interface
One-Stop Medical Equipment Shopping X-Ray Solutions X-ray machine, Processor, Film, Cassette, Lead protection
Ultrasound B/W 2D Ultrasound, 2D/3D/4D Color Ultrasound
Laboratory Chemistry/Hematology Analyzer, ELISA Reader, Centrifuge, Urine Analyzer
Operation Room Patient Monitor, ECG, Anesthesia Machine, Ventilator, Operation Table/Lamp
Diagnostics Clinic Use Medical Setup
❓

Frequently Asked Questions

Does this OCT machine require an external computer?
No, the YSOCT500A features an integrated internal computer for data acquisition and processing, making it a space-saving, plug-and-play solution.
What scan modes are supported by this device?
The system supports multiple professional scan modes, including 3D, Raster, and Circle scans for comprehensive ophthalmic examination.
Can the focus be adjusted for patients with high refractive errors?
Yes, the device offers a wide focus adjustment range from -15D to +15D, accommodating a broad spectrum of patient needs.
What is the light source used in this OCT?
It utilizes an 840nm SLD (Superluminescent Diode) light source, which is standard for high-resolution Spectral Domain OCT imaging.
Is the screen interface user-friendly?
The machine is equipped with a large 13.3-inch touch screen for intuitive operation, and it also supports an optional external mouse or keyboard.
Is the equipment certified for medical use?
Yes, the equipment is manufactured under strict quality standards and holds CE and ISO13485 certifications.
